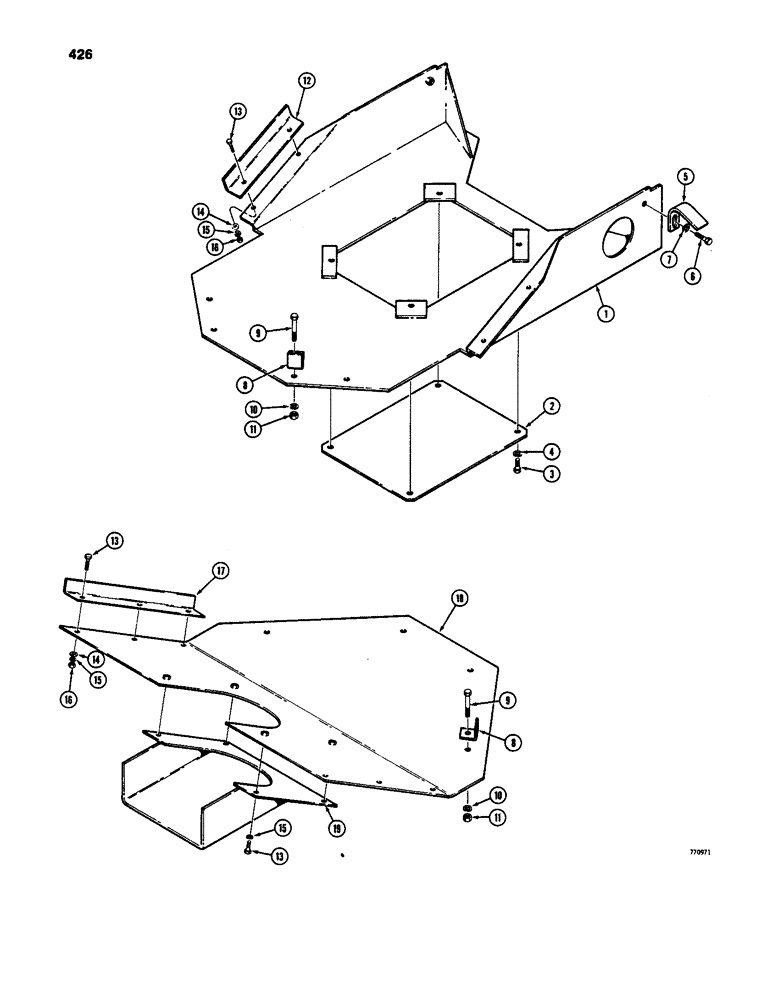

Запчасти Case W24C (426) - DRIVE LINE GUARDS (09) - CHASSIS/ATTACHMENTS

1

L73550

PAN - front drive line guard, Includes: Ref. 2 - 4

1шт.

2

L18436

COVER - pan

1шт.

3

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

- hex head, 1/2" - 13 NC x 4"

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

L73566

BRACKET - front

2шт.

6

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

L51202

CLAMP

S- guard

8шт.

9

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

8шт.

10

92-8

LOCK WASHER,1/2"

8шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

8шт.

12

L73551

BRACKET - front

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

14шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

10шт.

15

92-6

LOCK WASHER,3/8"

14шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

10шт.

17

L73183

BRACKET - rear

2шт.

18

L73188

GUARD - rear drive line

1шт.

19

L73227

PAN - rear drive line

1шт.
