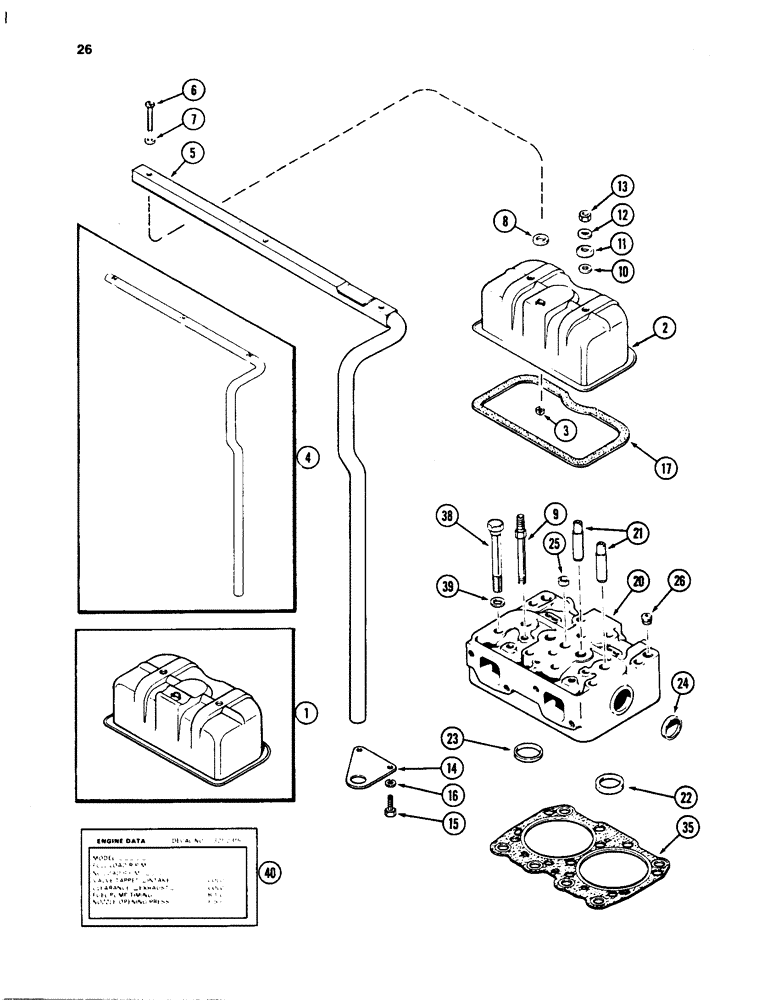

Запчасти Case W24C (026) - CYLINDER HEAD AND COVER, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head (If equipped) (Includes Ref. 3)

3шт.

2

A166170

COVER

COVER ASSEMBLY - cylinder head (If equipped), Includes: Ref. 3

3шт.

3

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - breather tube, Speed-Grip, 1/4 inch NC

1шт.

4

A59053

TUBE

TUBE - breather (If equipped)

1шт.

5

A166157

TUBE

SPARE PART TUBE - breather (If equipped)

1шт.

6

182-587

SCREW,Cross Pan Hd, 1/4"-20 x 2 1/2"

BOLT - breather tube, pan head, 1/4 NC x 2-1/2 inch

3шт.

7

A34133

GASKET

GASKET - breather tube, upper (fiber)

3шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - breather tube, lower

3шт.

9

A67121

STUD

STUD - rocker arm bracket and cover, 7/16 NC x 6 inch

6шт.

10

A142098

GROMMET

GROMMET - cover stud

6шт.

11

A156097

WASHER,11.94mm ID x 31.22mm OD x 1.32mm Thk

WASHER - cover stud

6шт.

12

195-29

WASHER,7/16"

WASHER - 15/32 x 59/64 x 1/16 inch (12 x 23 x 2 mm)

6шт.

13

25-107

NUT,7/16"-14, G5

NUT - cover stud, hex, 7/16 inch NC

6шт.

14

A59054

BRACKET

BRACKET - breather tube

1шт.

15

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket to oil pan, hex, 3/8 NC x 1-1/2 inch (with external Shakeproof washer)

2шт.

16

195-25

WASHER,3/8"

SPACER - bracket bolt, 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

1шт.

17

REF

INSTRUCTION

GASKET - cover to head (See figure 48)

3шт.

20

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes: Ref. 21 - 25

3шт.

20

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

20

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

21

A41783

GUIDE

GUIDE - intake and exhaust valve

4шт.

22

A60557

INSERT

INSERT - intake valve seat

2шт.

23

A66192

INSERT

INSERT - exhaust valve seat

2шт.

24

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8 inch (41 mm) cup type

2шт.

25

A58620

PLUG,Cup, 3/4", Stainless

PLUG 0 3/4 inch (19 mm) cup type

3шт.

26

221-1843

PLUG

PLUG - cylinder head, socket head, 3/8 inch PT

6шт.

35

REF

INSTRUCTION

GASKET - cylinder head (See figure 48)

3шт.

38

A76638

BOLT

BOLT - cylinder head, hex, 5/8 NC x 6-1/4 inch (Engine Serial No. 2556252 and after)

30шт.

38

A62732

STEP BOLT

BOLT - cylinder head, hex, 5/8 NC x 5-5/8 inch (Prior to Engine Serial No. 2556252)

30шт.

39

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt, 5/8 x 1 x 1/8 inch (16 x 25 x 2 mm)

30шт.

40

321-4687

DECAL

DECAL - engine information

1шт.
