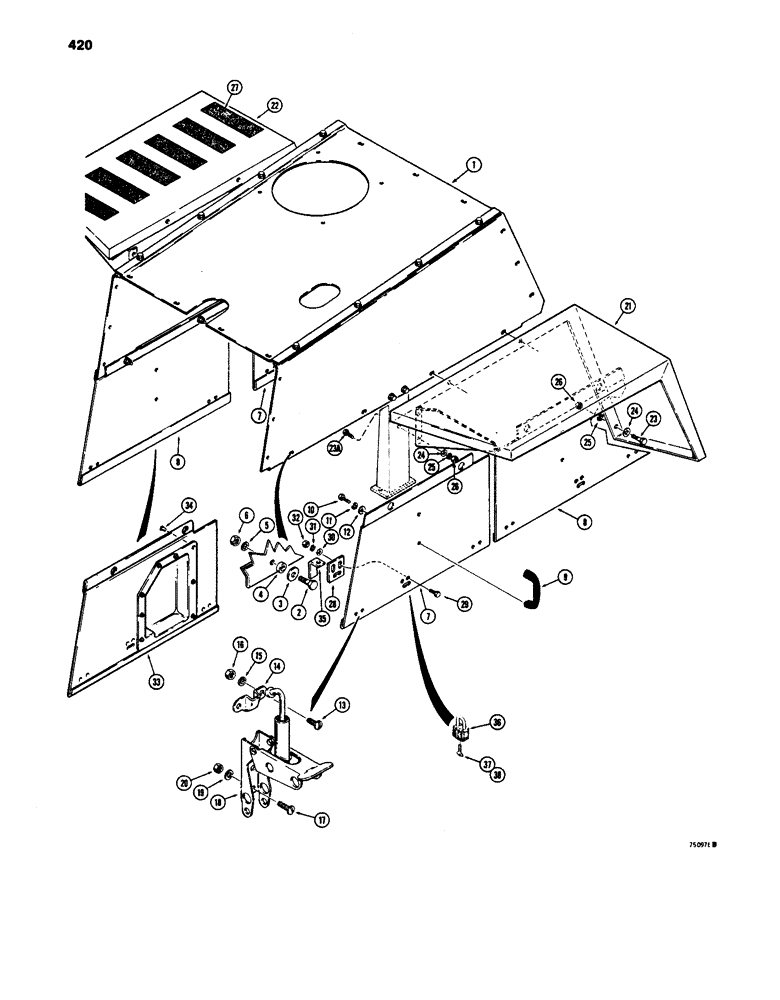

Запчасти Case W24C (420) - REAR FENDERS AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

HOOD - engine, see figure 416 and 418 for related parts

1шт.

2

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

3

195-26

WASHER

WASHER - flat, 3/8"

8шт.

4

L16674

SLEEVE

- panel support

4шт.

5

92-6

LOCK WASHER,3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" -16 NC

4шт.

7

L71419

SUPPORT

PANEL - engine side

2шт.

8

L71418

PANEL

engine side

2шт.

9

A23725

HANDLE

- engine side panel

4шт.

10

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

11

92-5

LOCK WASHER,5/16"

8шт.

12

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

8шт.

13

173-96

SCREW,Sl Rnd Hd, #10 - 24 x 7/16"

- machine, round head, No. 10 - 24 NC x 7/16"

8шт.

14

A17237

HOOK

LATCH - side panel

4шт.

15

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

16

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 - 24 NC

8шт.

17

173-100

BOLT,Sl Rnd Hd, #10 - 24 x 3/4"

SCREW - machine, round head, No. 10 - 24 NC x 3/4"

8шт.

18

L10473

LATCH

- engine side shields

4шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

20

129-17

NUT,Hex, #10 - 24

NUT- hex, No. 10 - 24 NC

8шт.

21

L16962

FENDER

- rear, right-hand

1шт.

22

L16963

FENDER

- rear, left-hand

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23a

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

10шт.

24

195-26

WASHER

WASHER - flat, 3/8"

12шт.

25

92-6

LOCK WASHER,3/8"

12шт.

26

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

12шт.

27

D55216

PAD,2" x 9"

PAD - non slip

12шт.

28

L48994

PLATE

- lock adjusting, models with lockup parts

4шт.

29

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

8шт.

30

195-522

WASHER,5/16"

- flat, 5/16"

8шт.

31

92-5

LOCK WASHER,5/16"

8шт.

32

9635082

NUT,5/16" - 18, Gr 5

8шт.

33

L71384

PANEL ASSY.

PANEL - engine side, left-hand rear, models with air conditioning

1шт.

34

151-535

RIVET,Pop, 1/8" x .462"

8шт.

35

L50032

BRACKET

- side panel lock, weld on, if used

4шт.

36

D93753

PADLOCK

- includes keys, if used, Includes: Ref. 37 and 38

4шт.

37

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

38

R29555

KEY

- for Master padlock only, if used

2шт.
