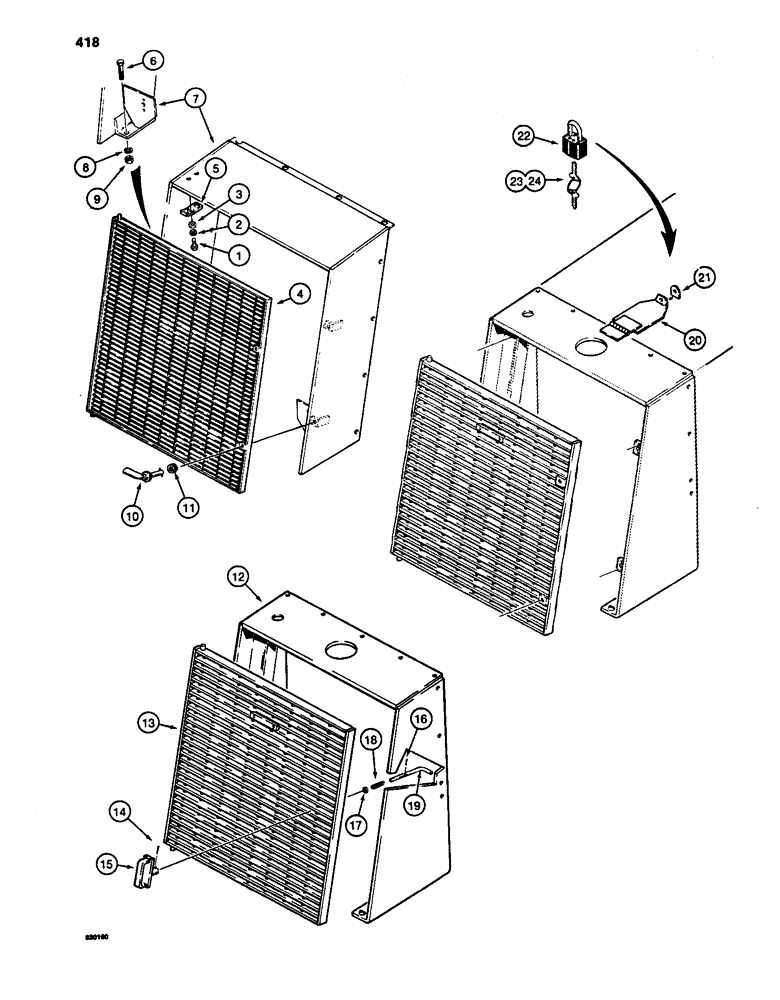

Запчасти Case W24C (418) - GRILLE AND RADIATOR GUARD (09) - CHASSIS/ATTACHMENTS

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

2

92-8

LOCK WASHER,1/2"

2шт.

3

95-8

WASHER,1/2"

flat 1/2"

2шт.

4

L101356

GRILLE

- radiator, used with L78642 and L73073 guard

1шт.

5

L45084

SUPPORT

- grille, upper

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

7

L73073

GUARD

- radiator, models with exterior lamps, order L78642 frame and (2) L59897 lamps

1шт.

7

L78642

GUARD

- radiator, models with lamps behind grille, used before tractor SN 9143607

1шт.

8

92-8

LOCK WASHER,1/2"

4шт.

9

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

10

L55533

RETAINER

- grille, used with L78642 guard

2шт.

11

L48760

WASHER

- special, grille retainer, L78642 guard

2шт.

12

L105349

GUARD, radiator, used on tractor SN 9143607 and after

1шт.

13

L112333

GRILLE ASSY

GRILLE - radiator, used with L105349 guard

1шт.

14

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , Used with L105349 guard 1/8" x 3/4", Slotted

1шт.

15

L73738

HANDLE

- grille latch, used with L105349 guard

1шт.

16

138-55

LOCK PIN,1/8" x 5/8", Slotted

PIN, , Used with L105349 guard 1/8" x 5/8", Slotted

1шт.

17

195-25

WASHER,3/8"

- flat, used with 7/8" L105349 guard

1шт.

18

L76665

SPRING

- latch, used with L105349 guard

1шт.

19

L73742

ROD

- latch, used with L105349 guard

1шт.

20

L48985

COVER - radiator cap, weld on, if used

1шт.

21

L48983

BRACKET - radiator cap lock, weld on, if used

1шт.

22

D93753

PADLOCK

- incluces keys, if used, Includes: Ref. 23 and 24

1шт.

23

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

24

R29555

KEY

- for Master padlock only, if used

2шт.
