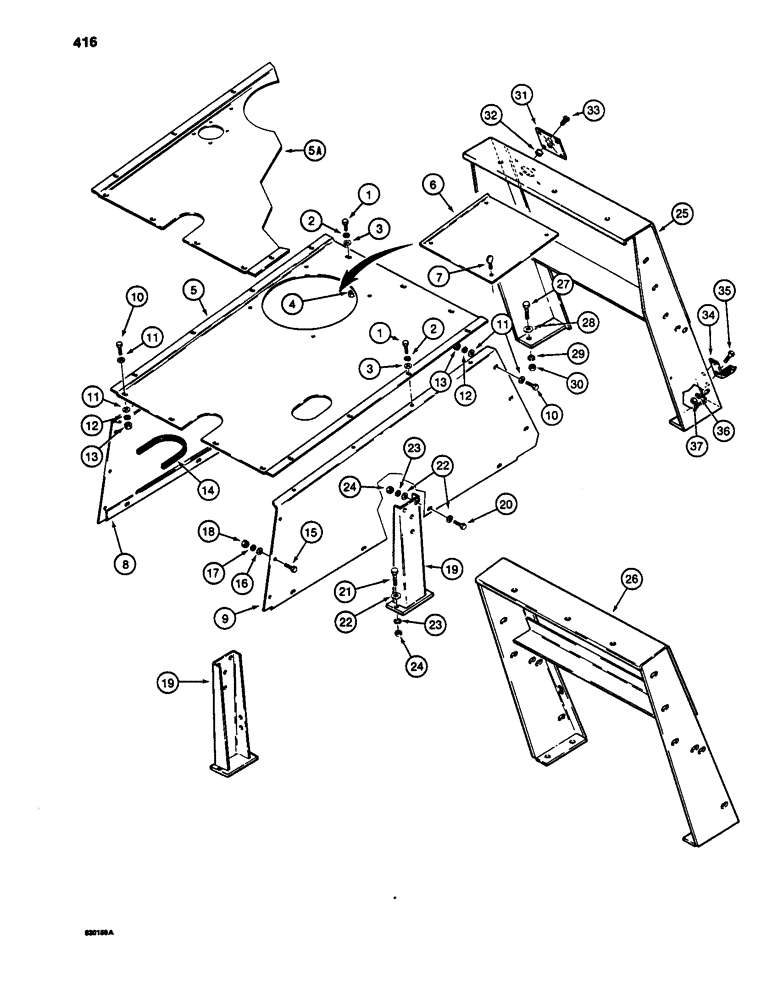

Запчасти Case W24C (416) - HOOD AND FRONT PANEL (09) - CHASSIS/ATTACHMENTS

1

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

11шт.

2

92-6

LOCK WASHER,3/8"

11шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

11шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC x 1"

3шт.

5

L58558

HOOD - top

1шт.

5a

L113050

TOP

HOOD - top, used with precleaner

1шт.

6

L55339

COVER

- air cleaner

1шт.

7

183-111

SCREW - winged, 1/4" - 20 NC x 3/4"

4шт.

8

L58555

PANEL ASSY.

HOOD - engine, left-hand

1шт.

9

L58554

HOOD - engine, right-hand

1шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

- hex head, 3/8" - 16 NC x 1-1/4"

10шт.

11

95-6

WASHER,3/8"

- flat, 3/8"

16шт.

12

92-6

LOCK WASHER,3/8"

10шт.

13

25-106

NUT,3/8"-16, G5

-hex, 3/8" 16 NC

10шт.

14

D33534

MOLDING

TRIM, 12-1/2" long, cut from bulk trim D52812 which is 83" long

1шт.

Use D52812 Trim (bulk) 83" (2108 mm) long and cut to required length

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

16

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

17

92-6

LOCK WASHER,3/8"

6шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

19

L100715

POST

SUPPORT - hood

2шт.

20

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

22

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

23

92-6

LOCK WASHER,3/8"

8шт.

24

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

8шт.

25

L106097

POST

SUPPORT - hood, front, used before tractor SN 914898

1шт.

26

L109706

SUPPORT - hood, front, used on tractor SN 914898 and after

1шт.

27

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4"

4шт.

28

95-8

WASHER,1/2"

flat 1/2"

4шт.

29

92-8

LOCK WASHER,1/2"

4шт.

30

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

31

L54570

COVER

- tachometer, if used

1шт.

32

L72459

SPACER

- cover, if used

4шт.

33

187-491

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

SCREW - self-tapping, 1/4" - 20 NC x 1", if used

1шт.

34

L76925

BRACKET - safety bar storage

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

92-6

LOCK WASHER,3/8"

2шт.

37

25-106

NUT,3/8"-16, G5

- hex, 3/8" 16 NC

2шт.
