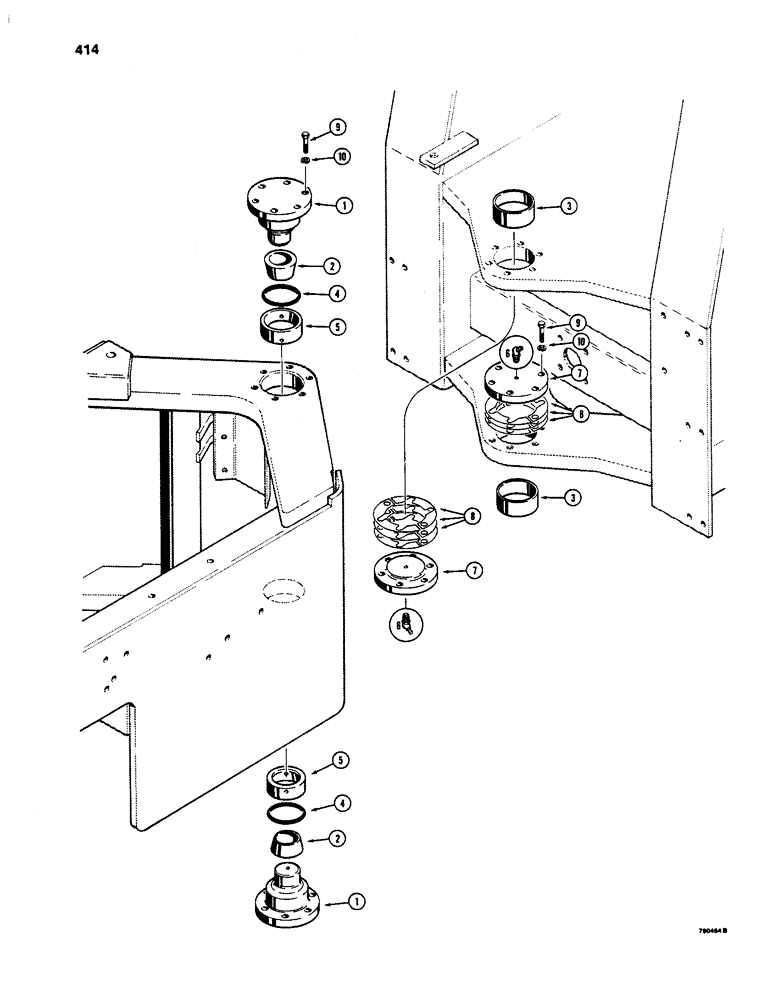

Запчасти Case W24C (414) - SPINDLE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

L77409

SPINDLE

ASSEMBLY - tractor, Includes: Ref. 1 and 2

2шт.

1

NSS

NOT SOLD SEPARAT

SPINDLE - frame pivot

1шт.

2

L77364

RING RACE

BEARING - thrust, inner ring

1шт.

3

L17466

BUSHING,100.05mm ID x 112.82mm OD x 37.4mm L

- pivot

2шт.

4

A30895

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

- spindle

2шт.

5

L77367

THRUST BEARING,69.85mm ID x 100.01mm OD x 29.97mm L

BEARING - THRUST

2шт.

6

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

GREASE FITTING - 45 degree, 1/4" NPT

2шт.

7

L107161

CAP

- thrust plate, spindle

2шт.

8

L17318

SHIM,113.54mm ID x 177.8mm OD x 0.56mm Thk

- .0149" (.378 mm) thick

1шт.

8

L17213

SHIM,113.5mm ID x 177.8mm OD x 0.91mm Thk

(0.912 mm) .0359" Thk

1шт.

8

L17212

SHIM,113.5mm ID x 177.8mm OD x 1.52mm Thk

(1.519 mm) .0598" Thk

1шт.

9

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex head, 5/8" - 11 NC x 2"

24шт.

10

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

24шт.
