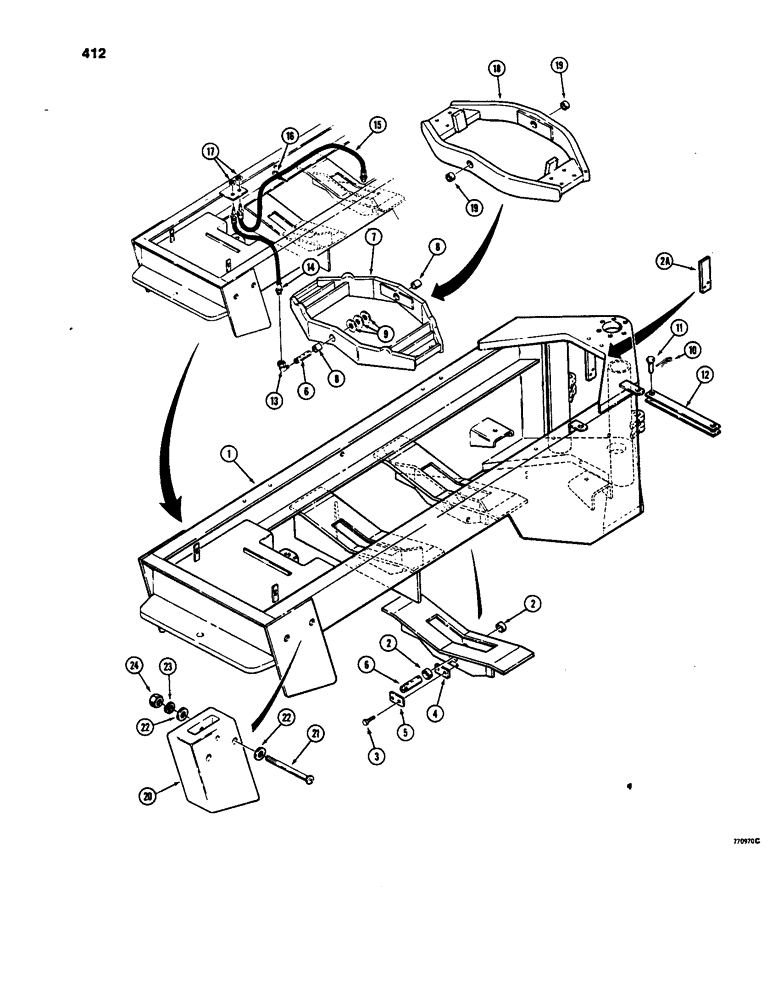

Запчасти Case W24C (412) - REAR FRAME TRUNNION (09) - CHASSIS/ATTACHMENTS

L111428

CHASSIS

REAR FRAME ASSEMBLY - articulated loader, used on tractor SN 9152629 and after, Includes: Ref. 1 - 2A

1шт.

L100735

CHASSIS

REAR FRAME ASSEMBLY - articulated loader, no longer available, order L111428 rear frame and L52657 bracket, used before tractor SN 9152629, Includes: Ref. 1 - 2A

1шт.

1

NSS

NOT SOLD SEPARAT

REAR FRAME - loader

1шт.

2

L14098

BUSHING

- trunnion pivot

4шт.

2a

L52657

BRACKET

- hose mounting, weld on

1шт.

3

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

4шт.

4

L72014

LOCK ASSY

PLATE - bolt locking

2шт.

5

L12824

LOCK ASSY

PLATE - pin locking

2шт.

6

L48970

AXLE PIN

PIN - trunnion pivot

2шт.

L52574

FRAME

TRUNNION ASSEMBLY - rear frame, used with Clark axle, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

8

L14138

BUSHING

- trunnion

2шт.

9

L47423

WASHER

THRUST WASHER - 1/8" (3 mm) thick

1шт.

9

L47424

WASHER,51.3mm ID x 114mm OD x 4.76mm Thk

THRUST WASHER - 3/16" (4 mm) thick

1шт.

9

L47422

WASHER,51.3mm ID x 114mm OD x 6.35mm Thk

THRUST WASHER - 1/4" (6 mm) thick

1шт.

10

136-164

COTTER PIN,Int, 5/16" x .120"

HAIR PIN - L77379 pin

2шт.

11

L113464

PIN,19.05mm OD x 57.15mm L

- safety link mounting

2шт.

12

L16741

STEM

LINK- safety, front to rear frame

1шт.

13

219-416

ELBOW,1/8"-27 NPT x 1/8"-27 NPT Sw

FITTING - 90 degree, swivel, 1/8" NPT

2шт.

14

L54693

HOSE

- grease, 27" (686 mm) long

1шт.

15

L54695

HOSE

- grease, 55" (1397 mm) long

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

17

F53473

LOCK NUT,1/8-27 NPSM

- lock, hose retaining

2шт.

L112671

TRUNNION

ASSEMBLY rear frame, used with Rockwell axle, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

TRUNNION - rear frame

1шт.

19

L14138

BUSHING

- trunnion

2шт.

REF

INSTRUCTION

COUNTERWEIGHT - rear, 500 lb (227 kg), machinery item, see figure 2 for ordering, Includes: Ref. 20 - 24

2шт.

20

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - 500 lb (227 kg)

2шт.

21

116-904

BOLT,Hex, 1" - 14 x 10", Gr 8

- hex head, 1" - 8 NC x 10", grade 8, counterweight

4шт.

22

195-53

WASHER,1" x 2" x .134"

- flat, 1", counterweight

8шт.

23

92-16

LOCK WASHER,1"

WASHER, LOCK, , Counterweight 1"

4шт.

24

25-1116

NUT,1"-14, G5

- hex, 1" - 14 NF, counterweight

4шт.
