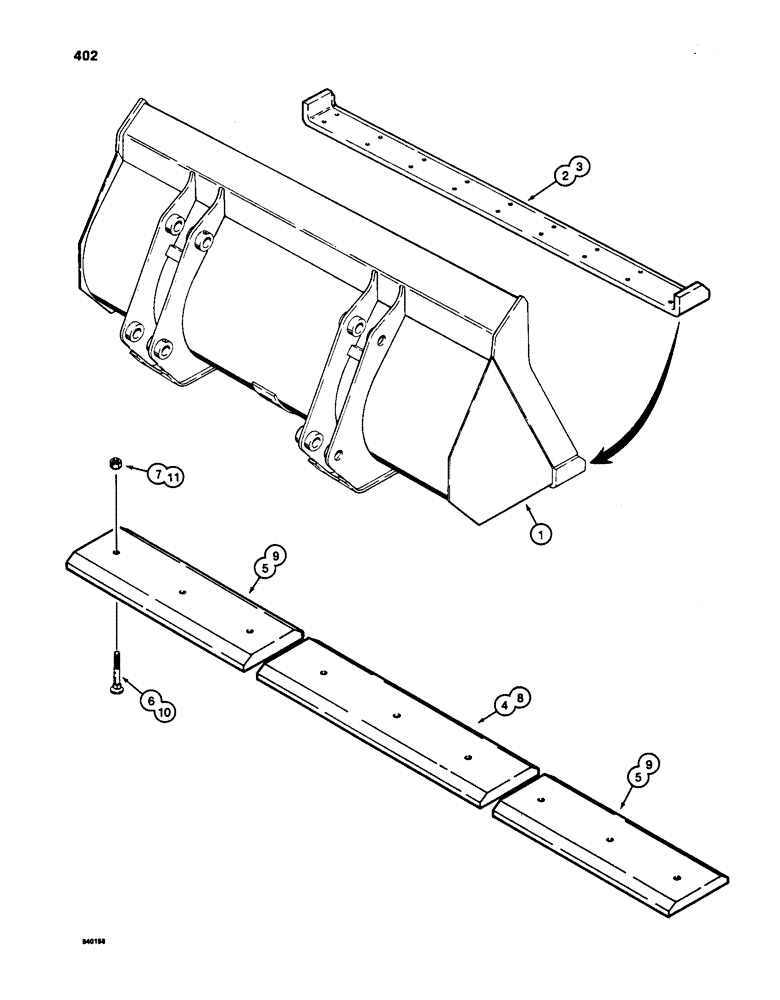

Запчасти Case W24C (402) - LOADER BUCKETS, 2-1/2 YD BUCKET - 96 IN WIDE (1.9 M{3} - 2438MM WIDE) (09) - CHASSIS/ATTACHMENTS

L57484

BUCKET ASSEMBLY - loader, machinery item, see figure 2, replaced by L72804, Includes: Ref. 1 and 2

1шт.

L72804

BUCKET ASSEMBLY - loader, machinery item, see figure 2, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader

1шт.

2

L57494

EDGE

CUTTING EDGE - L57484 or L72804 bucket

1шт.

L54112

BUCKET ASSEMBLY - loader, machinery item, see figure 2, replaced by L75751, 2 1/2 yard, 104 inches wide (1.9 meter(3), 2642 millimeters wide), Includes: Ref. 1 - 3

1шт.

L72751

BUCKET ASSEMBLY - loader, machinery item, see figure 2, replaced by L113251, 2 1/2 yard, 104 inches wide (1.9 meter(3), 2642 millimeters wide), Includes: Ref. 1 - 3

1шт.

L113251

BUCKET ASSEMBLY - loader, machinery item, see figure 2, 2 1/2 yard, 104 inches wide (1.9 meter(3), 2642 millimeters wide), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 2 1/2 yard, 104 inches wide (1.9 meter(3), 2642 millimeters wide)

1шт.

2

L54092

BLADE

CUTTING EDGE - L54112 or L72751 bucket, no longer available order L112525 cutting edge, 2 1/2 yard, 104 inches wide (1.9 meter(3), 2642 millimeters wide)

1шт.

3

L112525

EDGE, CUTTING

CUTTING EDGE - replaces L54092 cutting edge, 2 1/2 yard bucket, 104 inches wide (1.9 meter(3), 2642 millimeters wide)

1шт.

L57342

BUCKET ASSEMBLY - loader, machinery item, see figure 2, replaced by L72788, 3 yard, 104 inches wide (2.3 meters(3), 2642 millimeters wide), Includes: Ref. 1 - 3

1шт.

L72788

BUCKET ASSEMBLY - loader, machinery item, see figure 2, replaced by L113251, 3 yard, 104 inches wide (2.3 meters(3), 2642 millimeters wide), Includes: Ref. 1 - 3

1шт.

L112621

BUCKET ASSEMBLY - loader, machinery item, see figure 2, 3 yard, 104 inches wide (2.3 meters(3), 2642 millimeters wide), Includes: Ref. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

BUCKET - loader, 3 yard, 104 inches wide (2.3 meters(3), 2642 millimeters wide)

1шт.

2

L54092

BLADE

CUTTING EDGE - L57342 or L72788 bucket, no longer available, order L112525 cutting edge, 3 yard, 104 inches wide (2.3 meters(3), 2642 millimeters wide)

1шт.

3

L112525

EDGE, CUTTING

CUTTING EDGE - replaces L54092 cutting edge, 3 yard bucket, 104 inches wide (2.3 meters(3), 2642 millimeters wide)

1шт.

4

L111779

EDGE

CUTTING EDGE - center, bolt on, for 96 inch wide bucket

1шт.

5

L111780

EDGE

CUTTING EDGE - end, bolt on, for 96 inch wide bucket

2шт.

6

118-428

PLOW BOLT,5/8"-11 x 3 1/4", G8

- 5/8" -11 NC x 3-1/4", grade 8, bolt on cutting edge for 96 inch wide bucket

9шт.

7

129-563

NUT,5/8"-11, G8

- hex, 5/8" -11 NC, grade 8, bolt on cutting edge for 96 inch wide bucket

9шт.

8

L111775

EDGE

CUTTING EDGE - center, bolt on, for 104 inch wide bucket

1шт.

9

L111776

EDGE

CUTTING EDGE - end, bolt on, for 104 inch wide bucket

2шт.

10

118-428

PLOW BOLT,5/8"-11 x 3 1/4", G8

- 5/8" - 11 NC x 3-1/4", grade 8, bolt on cutting edge for 104 inch wide bucket

9шт.

11

129-563

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC, grade 8, bolt on cutting edge for 104 inch wide bucket

9шт.
