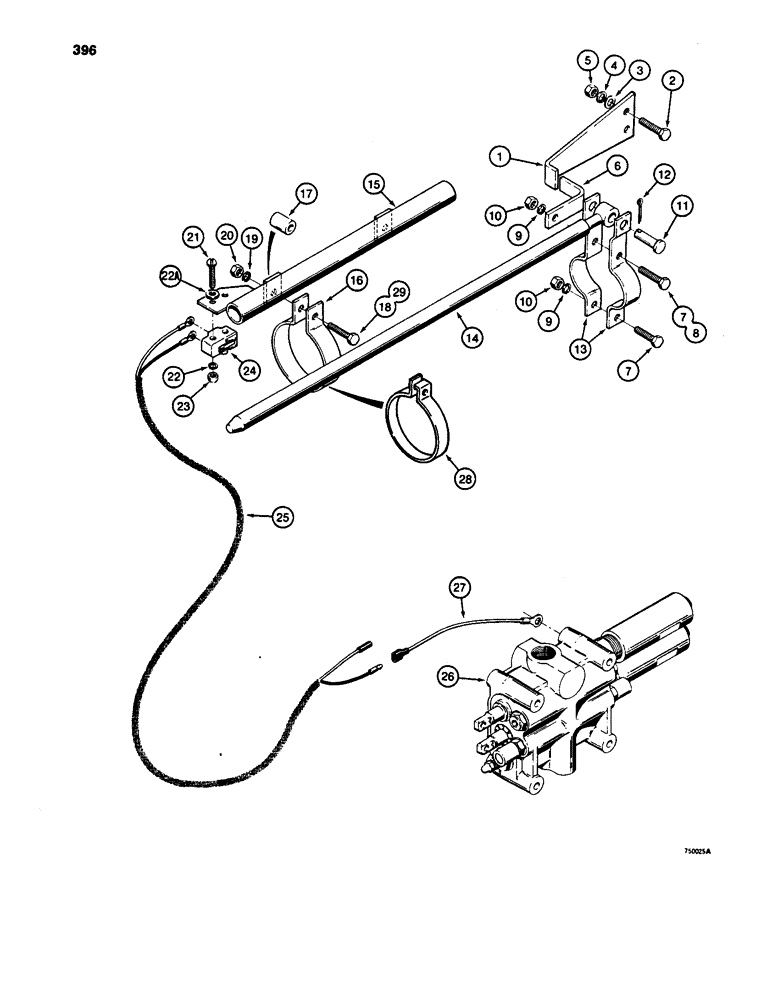

Запчасти Case W24C (396) - LOADER BUCKET RETURN-TO-DIG (09) - CHASSIS/ATTACHMENTS

1

L15066

INDICATOR

- return-to-dig, on bellcrank, if used

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

6

L19459

INDICATOR

- return-to-dig, on cylinder, if used

1шт.

7

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1-2шт.

8

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used with L19459 indicator

1шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" -16 NC

2шт.

11

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - clevis

1шт.

12

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

1шт.

13

L16198

CLAMP

- actuating, rod eye

2шт.

14

L25954

STEM

ROD - actuating

1шт.

15

L40442

GUIDE

- rod, return-to-dig

1шт.

16

L40440

STRAP

BRACKET - guide mounting, no longer available, order L76695 item 28

2шт.

17

L17446

SPACER

- guide bracket, used with L40440 bracket

2шт.

18

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Used with L40440 bracket Hex, 3/8"-16 x 2 1/4", G5

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

21

169-68

MACHINE SCREW - No. 6 - 32 NC x 1-1/4"

2шт.

22

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

22a

195-7

WASHER,#6

- flat, No. 6

2шт.

23

129-15

NUT,#6-32

2шт.

24

L54683

SWITCH

- return-to-dig

1шт.

25

L58363

HARNESS

- return-to-dig, order L50381

1шт.

26

REF

INSTRUCTION

VALVE - hydraulic, see figures 374 and 376 for valves

1шт.

27

L50380

ELECTRICAL WIRE

WIRE - valve to solenoid ground

1шт.

28

L76695

CLAMP

- GUIDE MOUNTING

2шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2", used with L76695 clamp

2шт.
