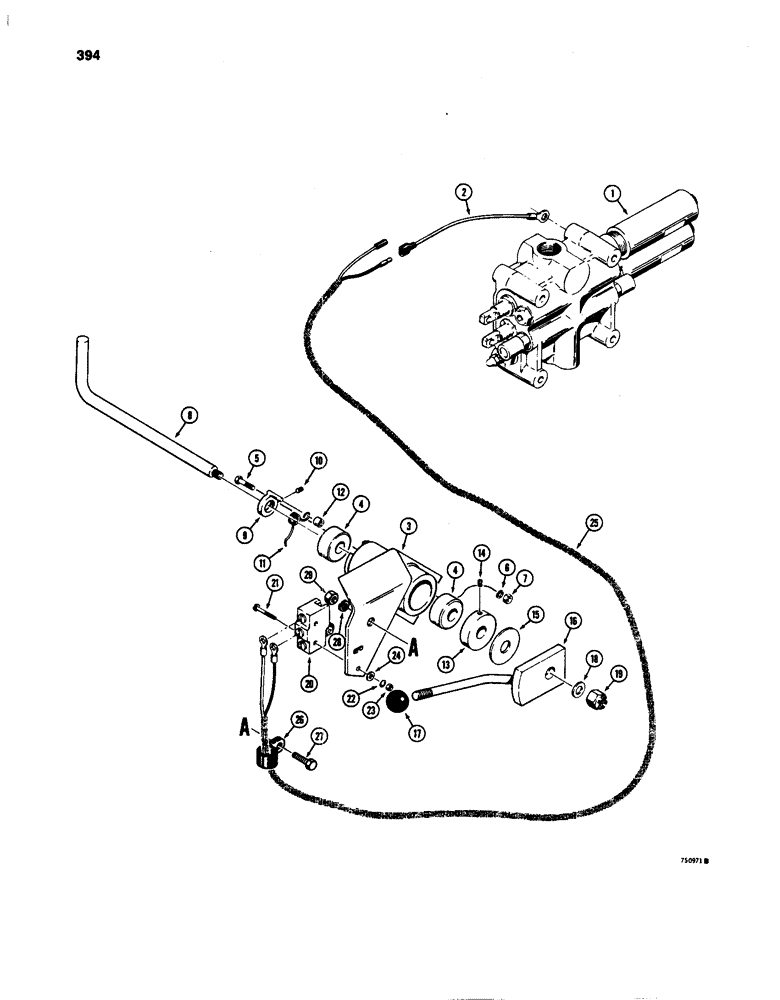

Запчасти Case W24C (394) - LOADER BUCKET HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

VALVE - hydraulic control, see figure 374 and 376 for valves

1шт.

2

L50380

ELECTRICAL WIRE

WIRE - valve to solenoid ground

1шт.

3

L54913

BRACKET

- height control, Includes: Ref. 3

1шт.

4

A34811

PLUG

BUSHING - height control bracket

2шт.

5

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex head, 5/16" - 18 NC x 1-1/4"

2шт.

6

92-5

LOCK WASHER,5/16"

2шт.

7

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

8

L51878

SHAFT

- height control

1шт.

9

L52006

COLLAR CLAMP

COLLAR - shaft position

1шт.

10

178-881

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

- hex socket, self-locking, 1/4" -20 NC x 1/2"

1шт.

11

L52007

VALVE SPRING

SPRING - height control return

1шт.

12

L52597

SPACER

- spring guide

1шт.

13

L52596

COLLAR

- handle

1шт.

14

178-881

SET SCREW,Hex Soc, 1/4"-20 x 1/2"

SET - SCREW - hex socket, self-locking, 1/4" - 20 NC x 1/2-

1шт.

15

L52598

WASHER

DISC - friction

1шт.

16

L51924

HANDLE

- control

1шт.

17

A61683

BUTTON

KNOB - handle

1шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

1шт.

19

131-31

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking, 3/8" - 16 NC

1шт.

20

L54683

SWITCH

- bucket height control

1шт.

21

169-68

SCREW - No. 6 - 32 NC x 1-1/4

2шт.

22

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

23

129-15

NUT,#6-32

2шт.

24

195-10

WASHER,#8

2шт.

25

L50381

HARNESS

- bucket height control

1шт.

26

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- harness

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.
