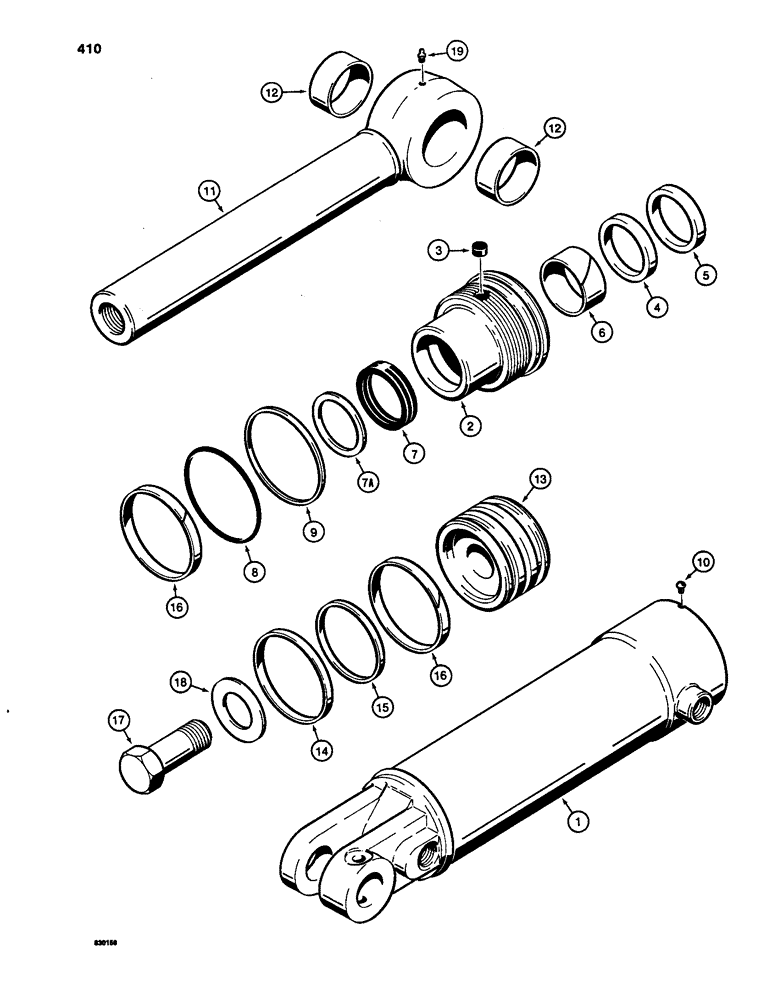

Запчасти Case W24C (369) - G101281 LOADER CLAM CYLINDER (09) - CHASSIS/ATTACHMENTS

G101281

CYLINDER,Double Acting, 50.8mm Rod, 266.7mm Stroke

ASSEMBLY - clam, 4" (102 mm) ID x 10-1/2" (267 mm) stroke, Includes: Ref. 1 - 19

2шт.

1

G32346

JACK BODY,20" L

TUBE ASSEMBLY - cylinder, right-hand

1шт.

G104407

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

7

D36971

RING

SEAL - piston rod

1шт.

7a

G102647

SEAL

- piston rod, narrow, used in addition to Ref. 7 in some glands.

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

- Gland

1шт.

10

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 -32 NC x 3/8", if used

1шт.

11

G33626

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, Includes: Ref. 12

1шт.

12

D33127

BUSHING,38.33mm ID x 47.63mm OD x 12.7mm L

- rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

BACKUP RING - piston

1шт.

16

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

17

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105545

SEAL

KIT - seal, includes Refs. 3, 5 - 7, 8, 9 and 14 - 16, same as G102401 plus Ref. 7A

1шт.

G100778

SEAL

- piston rod, service option - extreme heat or cold

1шт.
