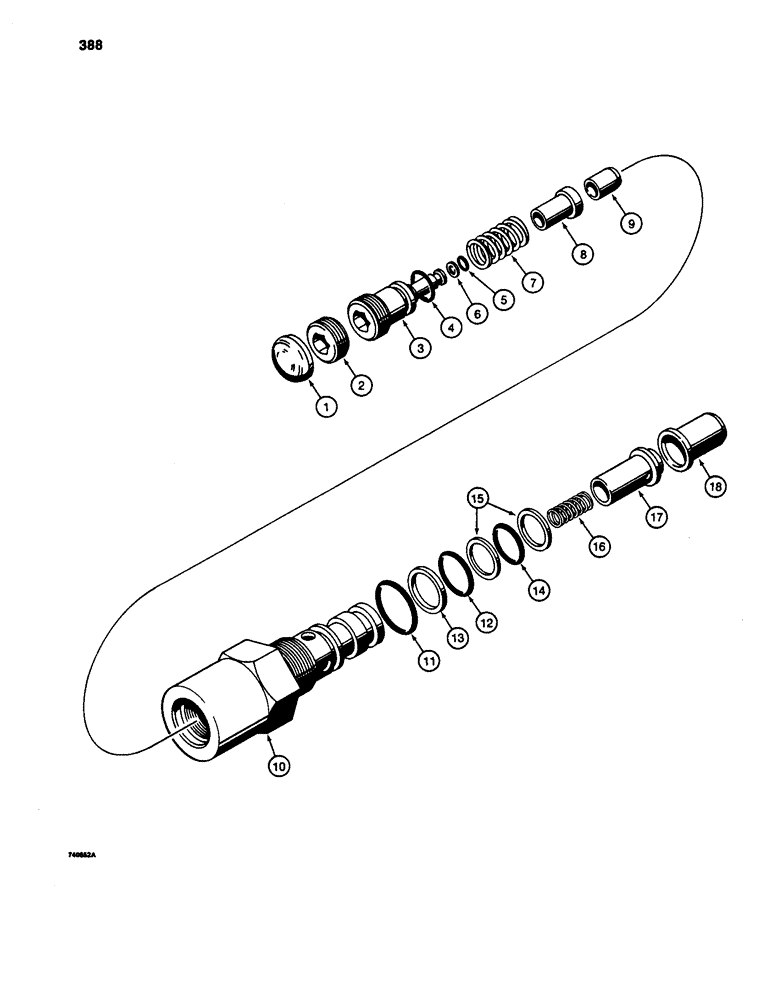

Запчасти Case W24C (388) - L32633 AND L35319 CIRCUIT RELIEF VALVES (08) - HYDRAULICS

L35319

VALVE

CIRCUIT RELIEF VALVE - used at port 1B on L70410 valve and at ports 1A and 1B on L70432 valve, see figure 374, Includes: Ref. 1 - 18

1-2шт.

L32633

VALVE

CIRCUIT RELIEF VALVE - used at ports 1A, 1B, and 2B on L71422 valve and at ports 1A, 1B, 2A, and 2B on L70433 valve, see figure 376, Includes: Ref. 1 - 18

3шт.

1

41-14

PLUG

- expansion

1шт.

2

L33449

PLUG

- end cap

1шт.

3

D65137

GUIDE

- spring

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- large

1шт.

5

A51274

O-RING,0.145" ID x 0.285" OD

- small

1шт.

6

D54860

RING

BACKUP RING - seal

1шт.

7

D37148

SPRING

- plunger

1шт.

8

D37151

PLUNGER

- relief

1шт.

9

D37075

SEAT

- plunger

1шт.

10

L33448

CAP

BODY - check valve

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- large

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- medium

1шт.

13

A41346

RING

BACKUP RING - seal

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- small

1шт.

15

G32626

RING

BACKUP RING - O-ring

2шт.

16

D48818

SPRING

- check poppet

1шт.

17

L32622

VALVE POPPET

POPPET - check

1шт.

18

L32631

VALVE

SEAT - check poppet

1шт.

L35386

VALVE

CIRCUIT RELIEF VALVE - used at port 1A on L70410 valve, see figure 374, Includes: Ref. 1 - 18

1шт.

L33429

VALVE

CIRCUIT RELIEF VALVE - used at port 2A on L70410 valve, see figure 376, Includes: Ref. 1 - 18

1шт.

1

41-14

PLUG

- expansion, L33429 and L35386 circuit relief valve

1шт.

2

L33449

PLUG

- end cap, L33429 and L35386 circuit relief valve

1шт.

3

L33450

GUIDE

- spring, L33429 and L35386 circuit relief valve

1шт.

4

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

- large, L33429 and L35386 circuit relief valve

1шт.

5

D40356

O-RING

- small, L33429 and L35386 circuit relief valve

1шт.

6

D40357

RING

BACKUP RING - seal, L33429 and L35386 circuit relief valve

1шт.

7

D37148

SPRING

- plunger, L33429 and L35386 circuit relief valve

1шт.

8

D37074

PLUNGER

- relief, L33429 and L35386 circuit valve

1шт.

9

D37075

SEAT

- plunger, L33429 and L35386 circuit relief valve

1шт.

10

L33448

CAP

BODY - check valve, L33429 and L35386 circuit relief

1шт.

11

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- large, L33429 and L35386 circuit relief valve

1шт.

12

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- medium, L33429 and L35386 circuit relief valve

1шт.

13

A41346

RING

BACKUP RING - seal, L33429 and L35386 circuit relief valve

1шт.

14

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- small, L33429 and L35386 circuit relief valve

1шт.

15

G32626

RING

BACKUP RING - seal, L33429 and L35386 circuit relief valve

2шт.

16

D48818

SPRING

- check poppet, L33429 and L35386 circuit relief valve

1шт.

17

L32622

VALVE POPPET

POPPET - check, L33429 and L35386 circuit relief valve

1шт.

18

L32631

VALVE

SEAT - check poppet, L33429 and L35386 circuit relief valve

1шт.
