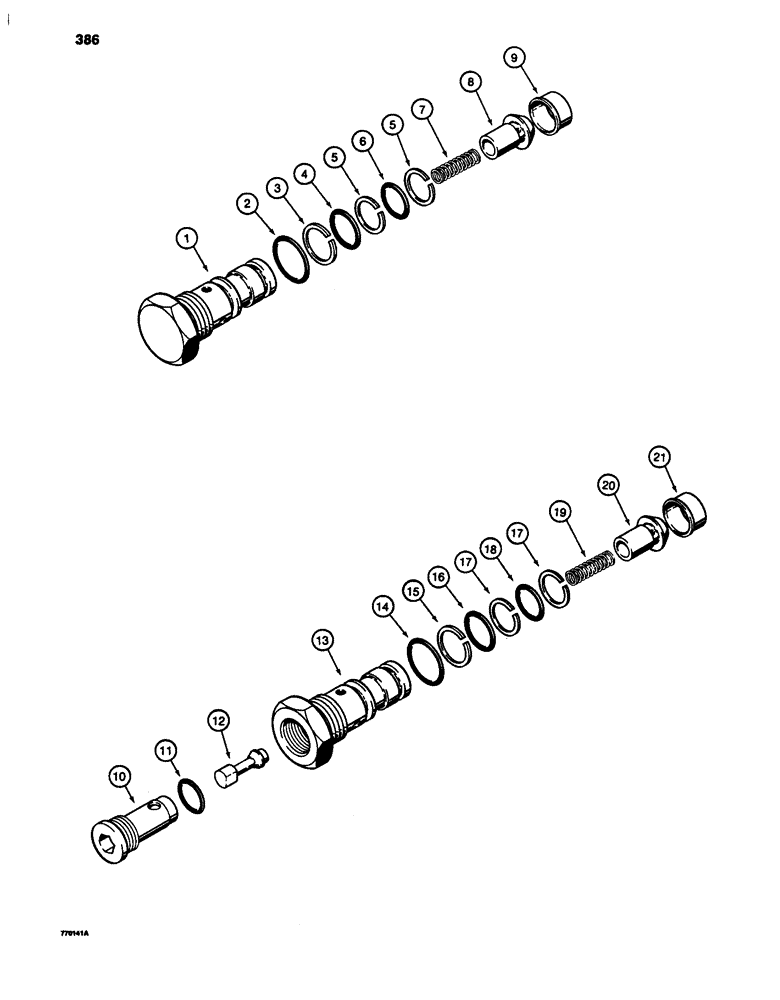

Запчасти Case W24C (386) - LOAD CHECK VALVE (08) - HYDRAULICS

L35320

VALVE

LOAD CHECK VALVE - used at port 2B on figure 374 and at port 3B on figure 376, Includes: Ref. 1 - 9

1шт.

1

L32632

VALVE

CAP - check valve

1шт.

2

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

0-RING - outer

1шт.

3

A41346

RING

BACKUP RING - check valve, outer

1шт.

4

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- center

1шт.

5

G32626

RING

BACKUP RING - check valve, center and inner

2шт.

6

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

0-RING - inner

1шт.

7

D48818

SPRING

- check valve

1шт.

8

L32622

VALVE POPPET

POPPET - check valve

1шт.

9

L35334

SLEEVE

SEAT - check valve

1шт.

L35321

VALVE

ANTICAVITATION AND LOAD CHECK VALVE - regeneration, used at port 2A on figure 374 and used at port 3A on figure 376, Includes: Ref. 10 - 21

1шт.

10

L32628

PLUG

- check valve, anticavition and load

1шт.

12

L32626

SPOOL

POPPET - small, anticavition and load check valve

1шт.

13

L32627

VALVE

CAP - check valve, anticavition and load

1шт.

14

A30843

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

- outer, anticavition and load check valve

1шт.

15

A41346

RING

BACKUP RING - check valve, outer, anticavition and load

1шт.

16

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- center, anticavition and load check valve

1шт.

17

G32626

RING

BACKUP RING - check valve, center and inner, anticavition and load

2шт.

18

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

- inner, anticavition and load check valve

1шт.

19

D48818

SPRING

- check valve, anticavition and load

1шт.

20

L32622

VALVE POPPET

POPPET - check valve, anticavition and load

1шт.

21

L35334

SLEEVE

SEAT - check valve, anticavition and load

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- plug, anticavition and load check valve

1шт.
