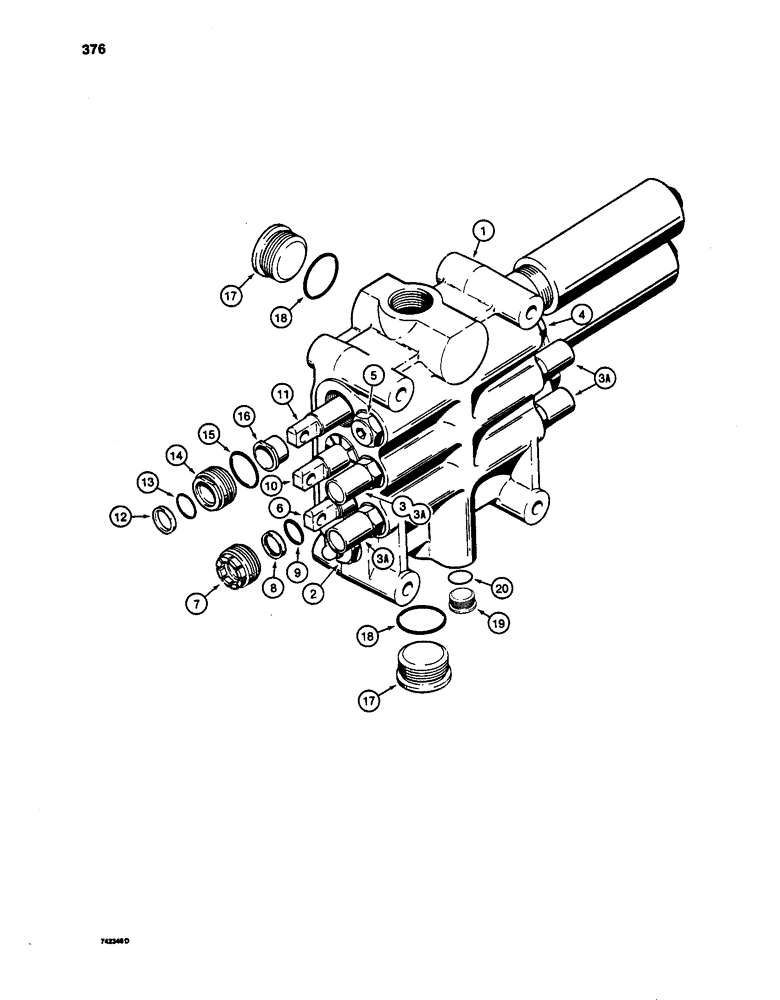

Запчасти Case W24C (376) - LOADER CONTROL VALVE (3 SPOOL) (08) - HYDRAULICS

L70433

VALVE

CONTROL VALVE - loader, 3 spool, production, Includes: Ref. 1 - 20

1шт.

For identification see name plate on valve for correct part number before ordering parts, see figure 374 for other valves.

1шт.

L71422

VALVE

CONTROL VALVE - 3 spool, service replacement, Includes: Ref. 1 - 20

1шт.

Secondary relief valve in port 2A of L71422 valve must be reset to correct pressure setting for this machine

1шт.

For identification see name plate on valve for correct part number before ordering parts, see figure 374 for other valves.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

L32614

VALVE

MAIN RELIEF VALVE - parts list figure 384

1шт.

3

L33429

VALVE

CIRCUIT RELIEF VALVE - used at port 2A on L71422 valve, parts list figure 388

1шт.

Secondary relief valve in port 2A of L71422 valve must be reset to correct pressure setting for this machine

1шт.

3a

L32633

VALVE

CIRCUIT RELIEF VALVE - used at ports 1A ,1B, and 2B on L71422 valve and at ports 1A, 1B, 2A, and 2B on L70433 valve, parts list figure 388

3-4шт.

4

L35320

VALVE

LOAD CHECK VALVE - used at port 3B, parts list figure 386

1шт.

5

L35321

VALVE

LOAD CHECK VALVE - regeneration, used at port 3A, parts list figure 386

1шт.

6

L32592

SPOOL

- clam, L70433 valve, parts list figure 384

1шт.

6

L33751

SPOOL

- clam, L71422 valve, parts list figure 384

1шт.

L32607

SEAL

ASSEMBLY - tilt and clam spool, Includes: Ref. 7 and 8

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

9

N6577

O-RING

- retainer

1шт.

10

D63369

SPOOL

- bucket, L71422 valve, parts list figure 378

1шт.

10

D71226

SPOOL

- bucket, L70433 valve, parts list figure 380

1шт.

11

D71227

SPOOL

- lift, L70433 valve, parts list figure 382

1шт.

11

D63370

SPOOL

- lift, L71422 valve, parts list figure 382

1шт.

L32610

SEAL

ASSEMBLY - lift spool, Includes: Ref. 12 - 16

1шт.

12

A28211

OIL SEAL

WIPER - spool

1шт.

13

N6577

O-RING

- small

1шт.

14

L32612

RETAINER

- seal

1шт.

15

L32613

O-RING

0-RING - large

1шт.

16

L32611

SLEEVE

- spool

1шт.

17

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex, socket head, 1-5/8" - 12 NF, Includes: Ref. 18

2шт.

18

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

0-RING - plug

1шт.

19

86625138

PLUG,7/18" - 14

Includes Ref. 20 Hex Soc, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.
