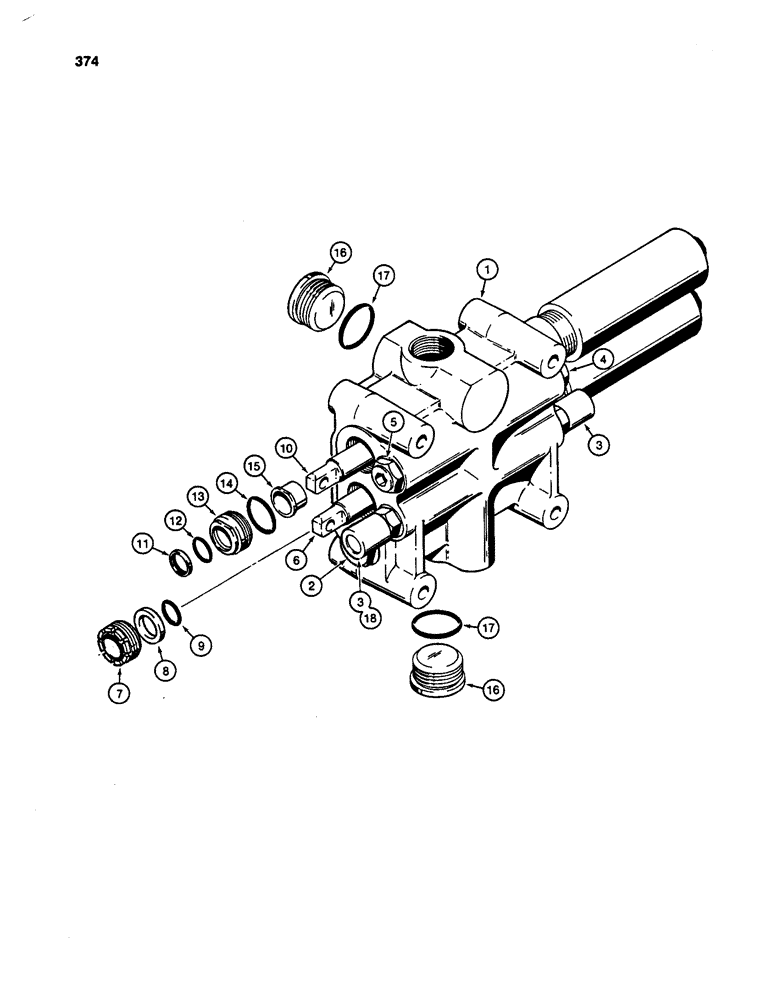

Запчасти Case W24C (374) - LOADER CONTROL VALVE (2 SPOOL) (08) - HYDRAULICS

L70432

CONTROL VALVE

- loader, 2 spool, production, Includes: Ref. 1 - 18

1шт.

For identification see name plate on valve for correct part number before ordering parts, see Figure 376 for other valves.

1шт.

L70410

SPOOL

CONTROL VALVE - loader, 2 spool, service replacement, Includes: Ref. 1 - 18

1шт.

For identification see name plate on valve for correct part number before ordering parts, see Figure 376 for other valves.

1шт.

Circuit relief valve in port 1A of L70410 valve must be reset to correct pressure setting for this machine, see Ref. 18

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

L32614

VALVE

MAIN RELIEF VALVE - parts list figure 384

1шт.

3

L35319

VALVE

CIRCUIT RELIEF VALVE - used on ports 1A and 1B on L70432 valve and at port 1B on L70410 valve, parts list figure 388

1-2шт.

4

L35320

VALVE

LOAD CHECK VALVE - used at port 2B, parts list figure 386

1шт.

5

L35321

VALVE

LOAD CHECK VALVE - regeneration, used at port 2A, parts list figure 386

1шт.

6

D71226

SPOOL

- bucket, L70432 valve, parts list figure 380

1шт.

6

D63369

SPOOL

- bucket, L70410 valve, parts list figure 378

1шт.

L32607

SEAL

ASSEMBLY - bucket spool, Includes: Ref. 7 and 8

1шт.

7

L32608

RETAINER

AND WIPER - spool

1шт.

8

L32604

RETAINER,1.007" ID x 1.672" OD x 0.187"

RETAINER - seal

1шт.

19

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

- special

1шт.

10

D71227

SPOOL

- lift, L70432 valve, parts list figure 382

1шт.

10

D63370

SPOOL

- lift, L70410 valve, parts list figure 382

1шт.

L32610

SEAL

ASSEMLBY - lift spool, Includes: Ref. 11 - 15

1шт.

11

A28211

OIL SEAL

WIPER - spool

1шт.

12

N6577

O-RING

- small

1шт.

13

L32612

RETAINER

- seal

1шт.

14

L32613

O-RING

- large

1шт.

15

L32611

SLEEVE

- spool

1шт.

16

218-5215

PLUG,Hex Soc, 1 5/8"-12 ORB

- hex socket head, 5/8" -12 NF, Includes: Ref. 17

2шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- plug

1шт.

18

L35386

VALVE

CIRCUIT RELIEF VALVE, used at port 1A, on L70410 valve, must be reset to correct pressure setting for this machine

1шт.
