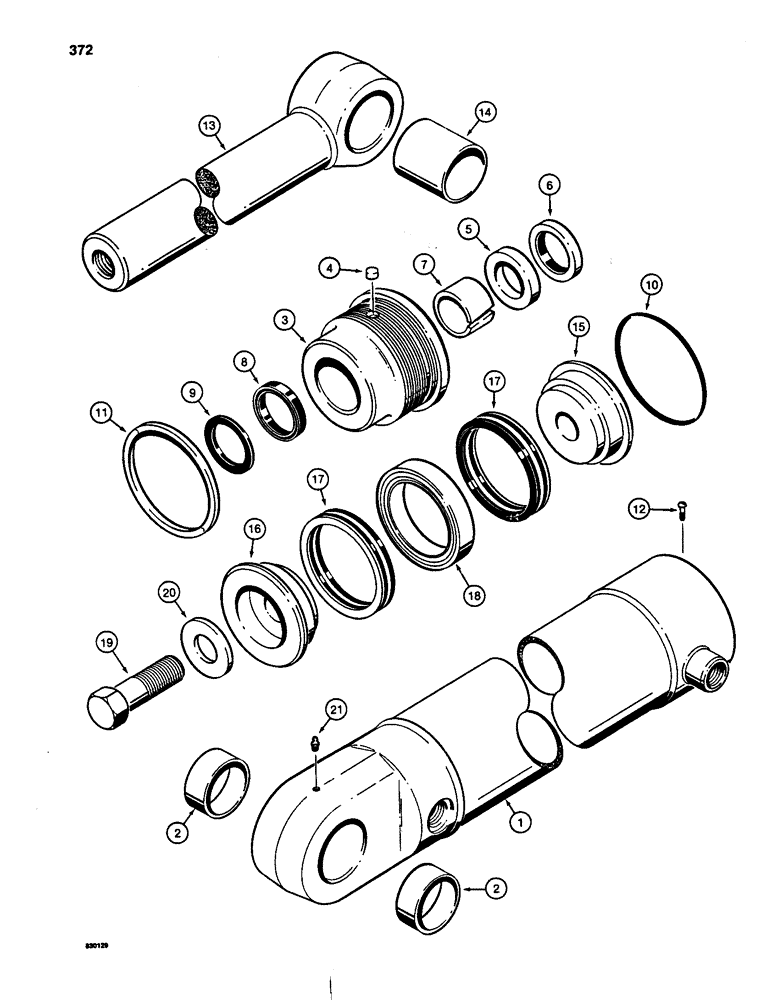

Запчасти Case W24C (372) - G101725 LOADER BUCKET CYLINDER (08) - HYDRAULICS

G101725

CYLINDER,Double Acting, 63.5mm Rod, 750.82mm Stroke

- bucket, 4-1/2" (114 mm) dia. x 29-1/2" (749 mm) stroke, Includes: Ref. 1 - 21

2шт.

1

G101726

TUBE,42.83" L

- cylinder, Includes: Ref. 2

1шт.

2

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

- tube

2шт.

G104304

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 11

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - gland center bushing, if used

1шт.

6

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105513

1шт.

7

G102427

BUSHING,63.5mm ID x 60.22mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit P/N G105513

1шт.

8

D45571

ROD

SEAL - piston rod

1шт.

Part of Seal Kit P/N G105513

1шт.

9

G104902

RING

SEAL - piston rod, narrow, used in addition to Ref. 8 in some glands

1шт.

Part of Seal Kit P/N G105513

1шт.

10

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

- gland seal

1шт.

Part of Seal Kit P/N G105513

1шт.

11

G32284

BACK-UP RING

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105513

1шт.

12

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 - 32 NC x 3/8", if used

1шт.

13

G34146

ROD

- piston, 2-1/2" (64 mm) diameter, Includes: Ref. 14

1шт.

14

D47245

BUSHING

- piston rod

1шт.

15

D49163

PISTON

- rod end

1шт.

16

D46931

PISTON

- bolt end

1шт.

17

D47205

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of Seal Kit P/N G105513

1шт.

18

D47210

BEARING WASHER,82.58mm ID x 113.97mm OD x 19mm Thk

RING - center bearing

1шт.

19

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

20

G32351

WASHER

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8"

1шт.

G105513

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 11 and 17, same as G34333 kit plus Ref. 9 above

1шт.

G100780

SEAL

- rod, service option - extreme heat or cold

1шт.
