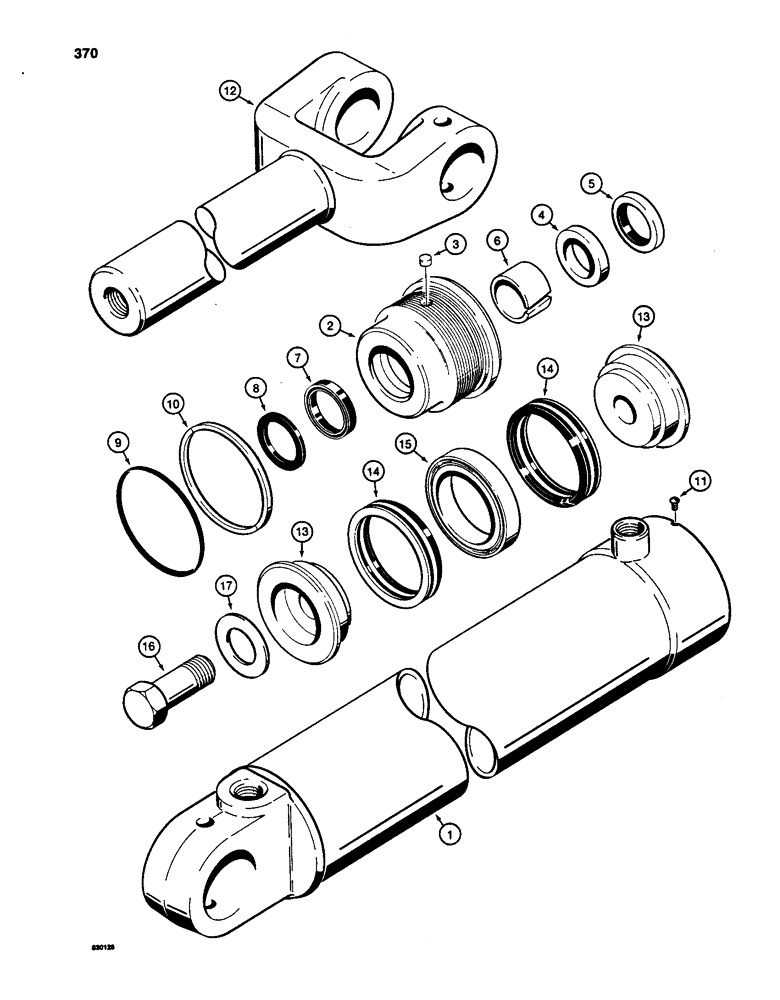

Запчасти Case W24C (370) - G101430 AND G101431 LOADER LIFT CYLINDERS (08) - HYDRAULICS

G101430

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 879.6mm Stroke

CYLINDER - right-hand, 5" (127 mm) x 34-5/8" (880 mm) stroke, not shown, Includes: Ref. 1 - 17

1шт.

G101431

CYLINDER

- left-hand, 5" (127 mm) x 34-5/8" (880 mm) stroke, not shown, Includes: Ref. 1 - 17

1шт.

1

G101432

TUBE,44.31" L

- G101430 cylinder

1шт.

1

G101433

TUBE,44.31" L

- G101431 cylinder

1шт.

G34735

GLAND

ASSEMBLY - cylinder, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RING - gland center bushing, if used

1шт.

5

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105531

1шт.

6

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit P/N G105531

1шт.

7

D45572

ROD

SEAL - piston rod

1шт.

Part of Seal Kit P/N G105531

1шт.

8

G104884

SEAL

- piston rod, narrow, used in addition to Ref. 7 in some glands

1шт.

Part of Seal Kit P/N G105531

1шт.

9

NLS

NO LONGER SERVICED

- gland seal

1шт.

Part of Seal Kit P/N G105531

1шт.

10

S92639

RING

BACKUP RING - gland

1шт.

Part of Seal Kit P/N G105531

1шт.

11

187-1524

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, No. 8 -32 NC x 3/8", if used

1шт.

12

G34135

ROD

- piston, 3" (76 mm) diameter

1шт.

13

D48562

PISTON,123.95mm Bore, 63.5mm Rod, 34.92mm W

- split

2шт.

14

D47206

PACKING

ASSEMBLY - piston, V-type

2шт.

Part of Seal Kit P/N G105531

1шт.

15

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING - center bearing

1шт.

16

28-2056

BOLT,Hex, 1-1/4" - 12 x 3-1/2", Gr 8

- hex head, 1-1/4" - 12 NF x 3-1/2", grade 8

1шт.

17

G32351

WASHER

- hardened

1шт.

G105531

SEAL

KIT - seal, Includes: Ref. 5, 6, 7, 8, 9, 10 and 14

1шт.

G100782

SEAL

- rod, service option - extreme heat or cold

1шт.
