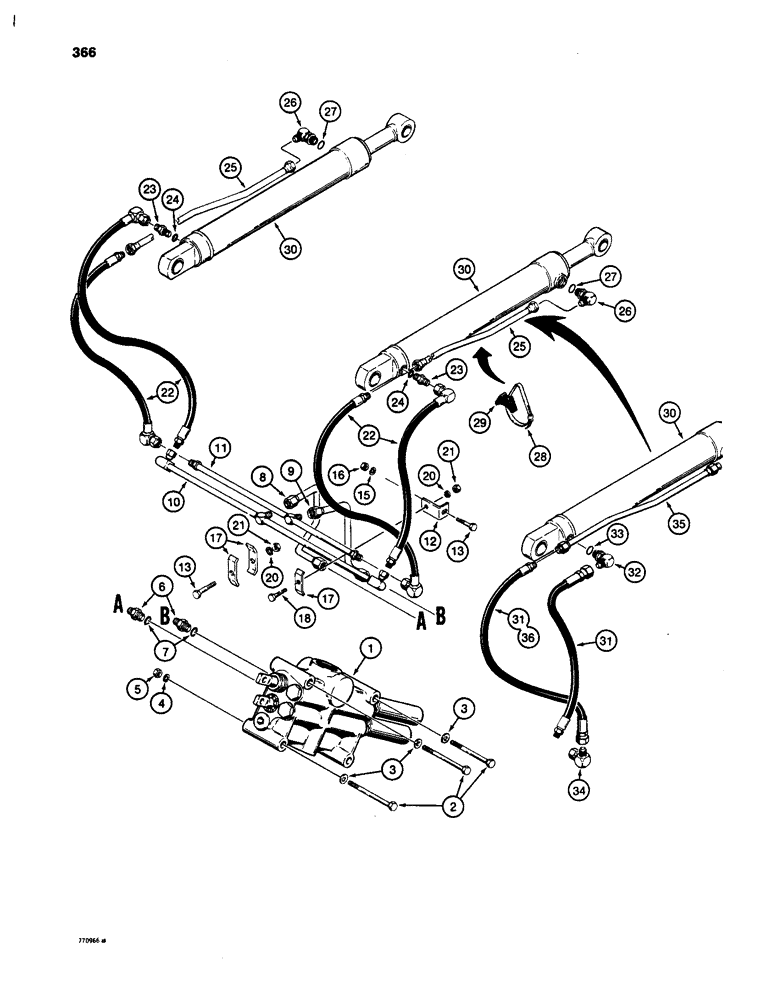

Запчасти Case W24C (366) - LOADER BUCKET TILT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - hydraulic, see figures 374 and 376 for correct valve components

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

8

L52671

TUBE ASSY.,1" OD

TUBE - to manifold and closed end of cylinders

1шт.

9

L70911

TUBE,1" OD x 15.66, 7.2" L

- to manifold and rod end of cylinders

1шт.

10

L52675

MANIFOLD

- to closed end of cylinders

1шт.

11

L70923

TUBE,1" OD x 39.4" L

MANIFOLD - to rod end of cylinders

1шт.

12

L17787

BRACKET - tube clamping

2шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

14

RESERVED

1шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

R15257

CLAMP

- tube

6шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

19

RESERVED

1шт.

20

92-6

LOCK WASHER,3/8"

4шт.

21

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

22

L17745

HOSE

- no longer available, order D56094 hose, 218-5110 elbow, and 218-5234 elbow

4шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - male, straight, used with L17745 hose, Incl. Ref. 24

2шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

25

L77694

TUBE,1" OD x 31.15, 2.3" L

- at rod end of cylinder, used with D56094 hose, no longer available, order L106337 tube, D66505 hose, and 218-5234 elbow

2шт.

26

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, Incl. Ref. 27 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

28

214-273

HOSE CLAMP,#88, 5.12" - 6", Type F Worm

CLAMP - tube

4шт.

29

D38648

BLOCK

CUSHION - rubber

2шт.

30

REF

INSTRUCTION

CYLINDER - bucket, parts list figure 372

2шт.

31

D56094

HOSE

- to tilt cylinder, has pipe thread on male end, used with L77694 tube

2-4шт.

32

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 33 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

33

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

34

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree

2шт.

35

L106337

TUBE,1" OD x 30.9, 2.3" L

- to rod end of cylinder, used with D66505 hose

2шт.

36

D66505

HOSE

- to tilt cylinder rod end, has 37 degree male end, used with L106337 tube

2шт.
