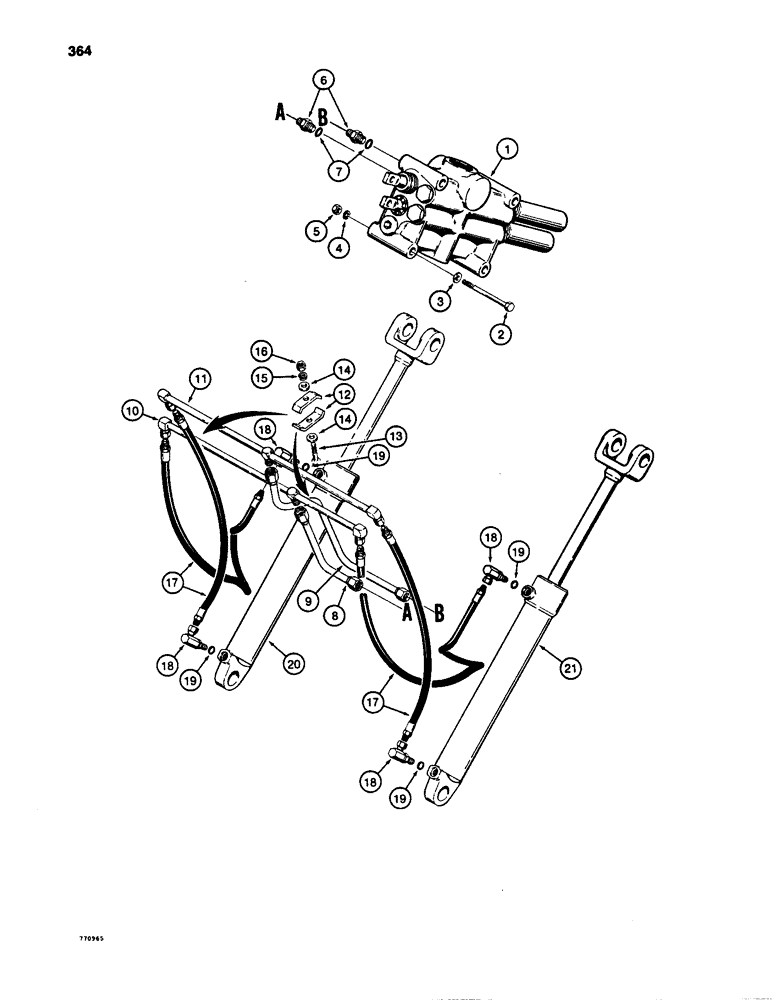

Запчасти Case W24C (364) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

CONTROL VALVE - hydraulic, see figure 374 and 376 for correct valve and components

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

3шт.

6

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 7

2шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

8

L17737

TUBE,1" OD x 7.05, 4.4" L

- valve to cylinder, rod end

1шт.

9

L17735

HYD TUBE,1" OD

TUBE - valve to cylinder, closed end

1шт.

10

L17748

HOSE

TUBE - manifold, lower

1шт.

11

L17750

MANIFOLD

TUBE - manifold, upper

1шт.

12

R15257

CLAMP

- tube

4шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

17

L17746

HOSE

- 42-1/2" (1079 mm) long

4шт.

18

218-5202

90 ELBOW,90 Degree, 1 1/16"-12 O-Ring x 3/4" NPSM Fem

- adjustable, 90 degree, Includes: Ref. 19

4шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

20

G101431

CYLINDER

- lift left-hand, see figure 370 for parts list

1шт.

21

G101430

HYDRAULIC CYLINDER,Double Acting, 76.2mm Rod, 879.6mm Stroke

CYLINDER - lift, right-hand, see figure 370 for parts list

1шт.
