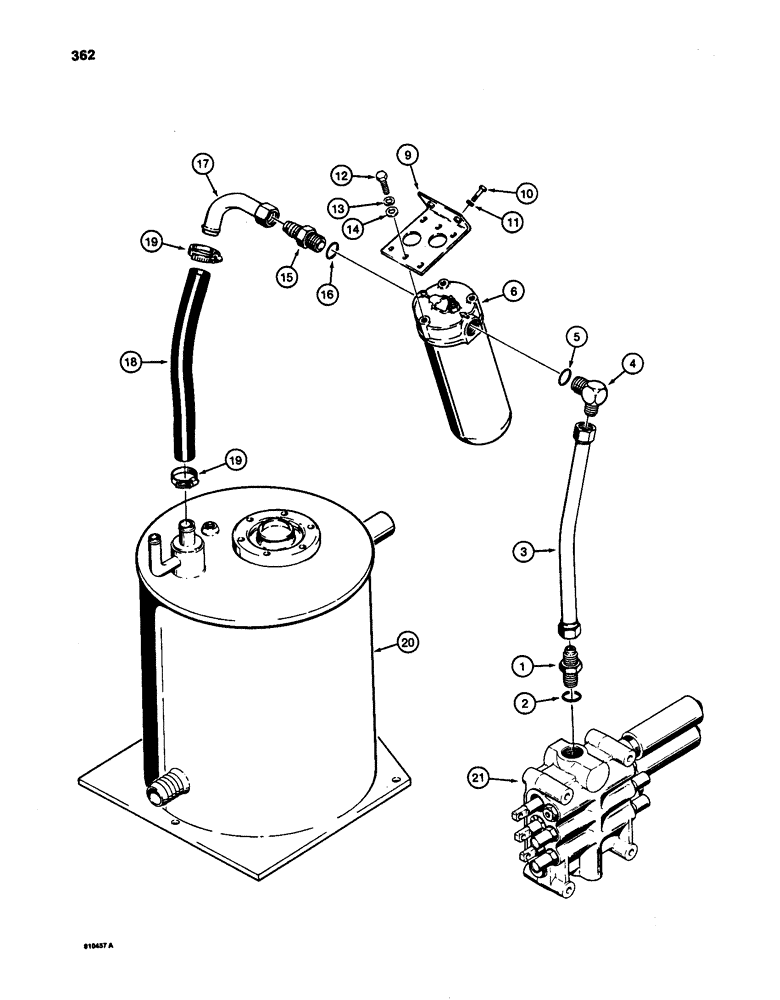

Запчасти Case W24C (362) - LOADER HYDRAULIC CIRCUIT, USED ON TRACTOR SN 9143772 AND AFTER (08) - HYDRAULICS

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. 2

1шт.

2

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

0-RING - connector

1шт.

3

L107149

TUBE ASSY.,1.25" OD x 17.06, 2.39" L

TUBE - valve to filter

1шт.

4

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adjustable, Incl. Ref. 5 90º, 1 5/8"-12, 37º x 1 5/16"-12, O-Ring

1шт.

5

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

L114122

FILTER

ASSEMBLY - hydraulic retrun, parts list figure 196

1шт.

9

L106445

BRACKET

- filter

1шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

13

92-6

LOCK WASHER,3/8"

3шт.

14

95-6

WASHER,3/8"

- flat, 3/8"

3шт.

15

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOTR - straight, Includes: Ref. 16

1шт.

16

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- connector

1шт.

17

L107334

TUBE ASSY.,1.25" OD x 6.3, 3.84" L

TUBE - filter to hydraulic reservoir

1шт.

18

L107328

HOSE,31.75mm ID x 228.6mm L, SAE 100R3

- return to hydraulic reservoir

1шт.

19

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

20

REF

INSTRUCTION

RESERVOIR - hydraulic, for correct reservoir and components, see figure 354

1шт.

21

REF

INSTRUCTION

VALVE - hydraulic control, see figures 374 and 376 for correct valve and components

1шт.
