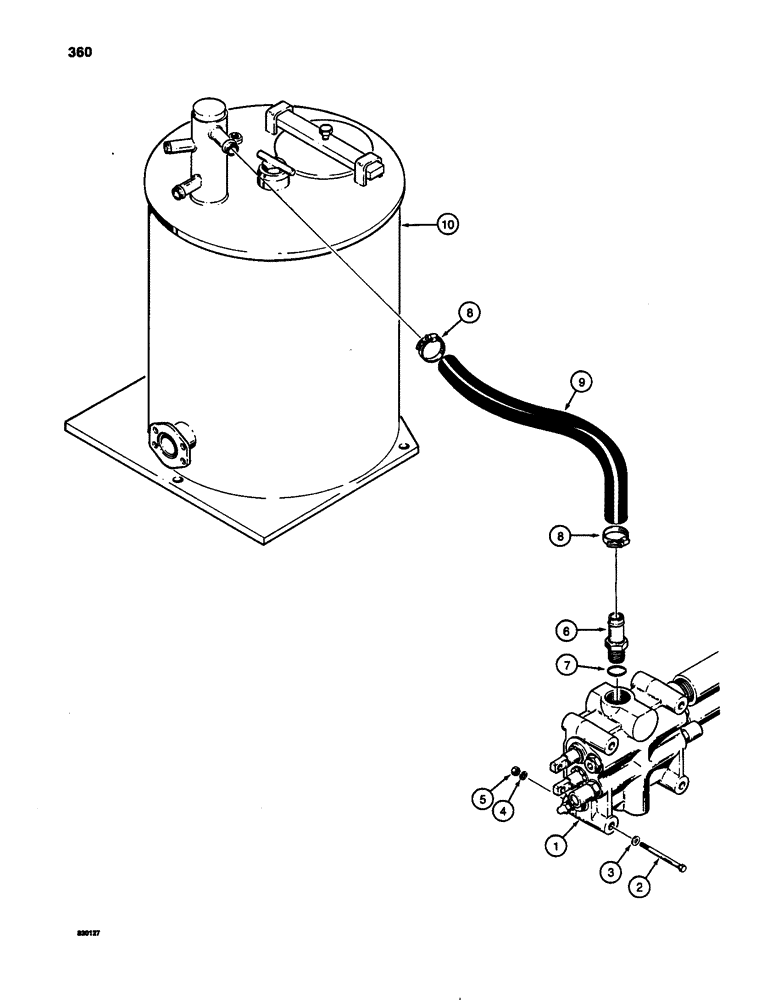

Запчасти Case W24C (360) - LOADER HYDRAULIC CIRCUIT, LOADER VALVE TO RESERVOIR, USED BEFORE TRACTOR SN 9143772 (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - hydraulic control, see figures 374 and 376 for valves

1шт.

2

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

95-8

WASHER,1/2"

flat 1/2"

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

6

217-173

FITTING,1" Hose Barb x 1-5/8" - 12 Male ORB

Includes Ref. 7 1" Hose x 1 5/8"-12 ORB, Beaded

1шт.

7

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- connector

1шт.

8

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

9

L60366

HOSE

- 1" (25 mm) ID x 23" (584 mm) long

1шт.

10

L74190

TANK

RESERVOIR - hydraulic, parts list figure 352

1шт.
