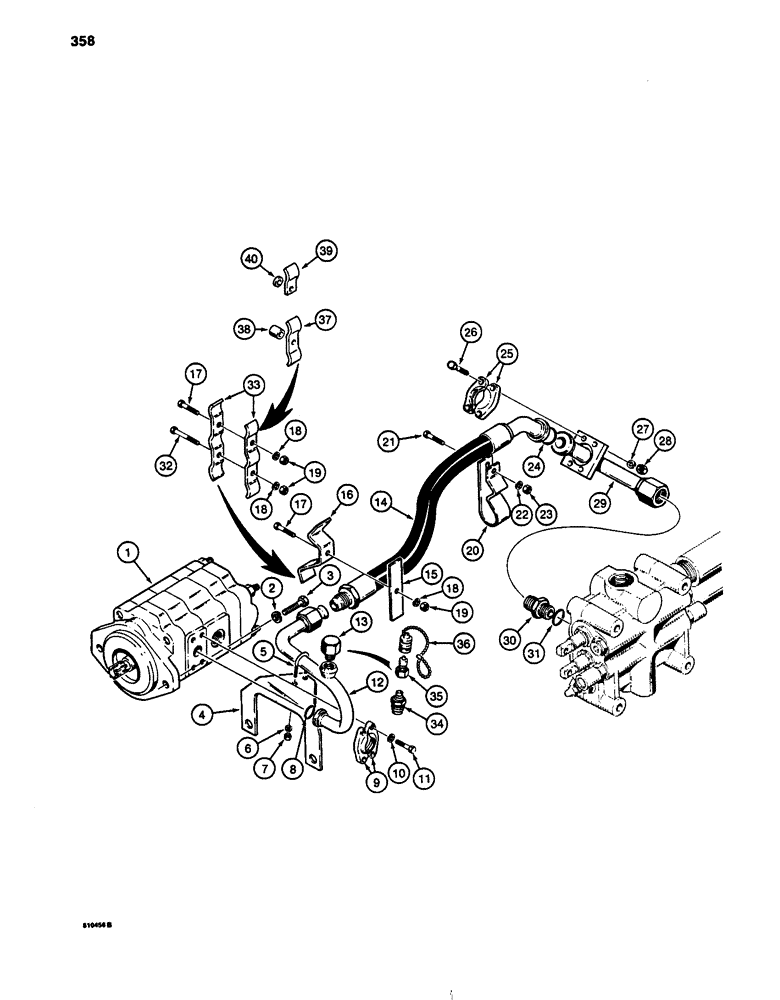

Запчасти Case W24C (358) - LOADER HYDRAULIC CIRCUIT, PUMP TO LOADER VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP - hydraulic, see figure 204

1шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

4

L51771

BRACKET

SUPPORT - pressure tube

1шт.

5

F60581

BOLT

U-BOLT - 1/4" - 20 NC

1шт.

6

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

25-104

NUT,1/4"-20, G5

2шт.

8

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- split flange

1шт.

9

A14157

FLANGE

SPLIT FLANGE - tube

2шт.

10

92-8

LOCK WASHER,1/2"

4шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

12

L59567

PIPE,1.25" OD

TUBE - at pump

1шт.

13

221-655

PLUG,Hex Hd, 3/4"-14

- hex head, 3/4" NPT, if used

1шт.

14

L47477

HOSE

- hydraulic, to two spool valve

1шт.

Ref. 14A - (Has 90 degree elbow)

1шт.

14

L47537

HOSE

- hydraulic, to three spool valve

1шт.

Ref. 14 - (Has 45 degree elbow)

1шт.

15

L51748

CLAMP

BRACKET - clamp, used before tractor SN 914898

1шт.

16

L18549

CLAMP

- hose, used before tractor SN 9148989

1шт.

17

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

18

92-6

LOCK WASHER,3/8"

1-2шт.

19

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1-2шт.

20

L18548

CLAMP

- hose

1шт.

21

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

22

92-6

LOCK WASHER,3/8"

1шт.

23

255-106

NUT - hex, 3/8" - 16 NC

1шт.

24

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

- split flange

1шт.

25

A12301

CLAMP,Half

SPLIT FLANGE - tube

2шт.

26

113-323

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

27

92-7

LOCK WASHER,7/16"

4шт.

28

129-104

NUT,7/16"-14, G5

4шт.

29

L15928

TUBE,1.25" OD x 8.0, 3.2" L

- at three spool valve

1шт.

30

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. 31

1шт.

31

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- connector

1шт.

32

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2", used with L102862 clamp and L113245 clamp

1шт.

33

L102862

CLAMP

- hose and tube, used on tractor SN 9148989 thru SN 9156307

1-2шт.

34

217-1092

HYD CONNECTOR,3/4"-14 NPTF x 1/4"-18 NPTF

CONNECTOR - staight, if used

1шт.

35

S206607

DISC

COUPLING - male, if used

1шт.

36

S206608

CAP

- dust, if used

1шт.

37

L113245

CLAMP - hose, used on tractor SN 9156308 and after

1шт.

38

L101028

SPACER - clamp

1шт.

39

L113246

CLAMP - tube, used on tractor SN 9156308 and after

1шт.

40

L16674

SLEEVE

SPACER - clamp

1шт.
