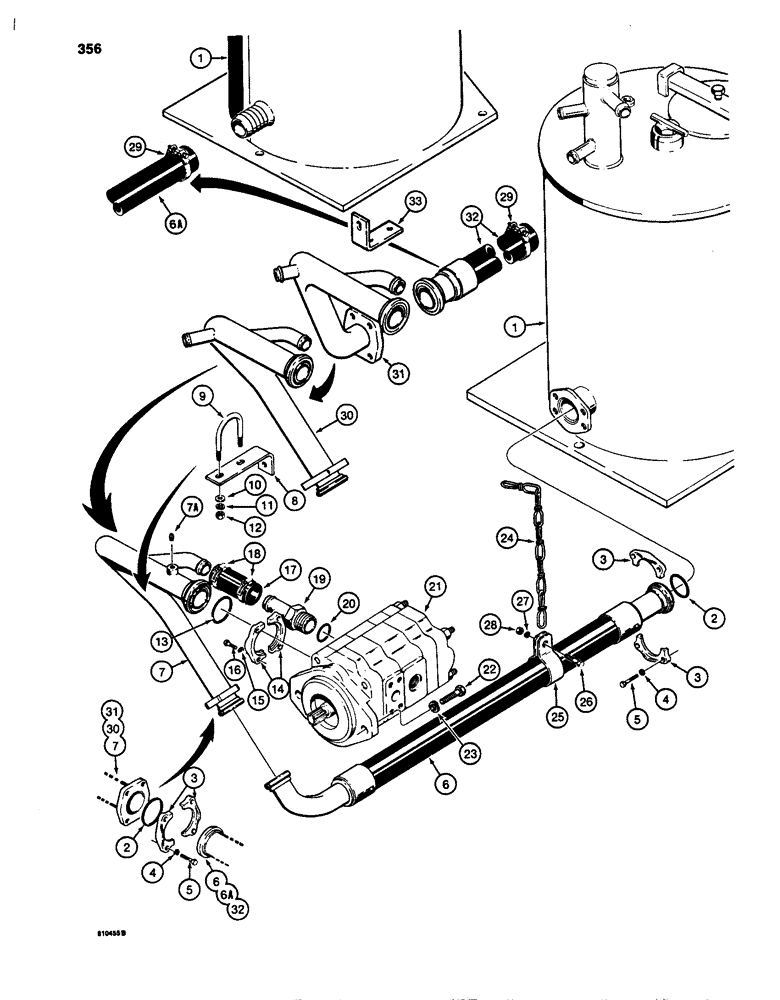

Запчасти Case W24C (356) - BASIC HYDRAULIC CIRCUIT, PUMP TO RESERVOIR (08) - HYDRAULICS

1

REF

INSTRUCTION

RESERVOIR - hydraulic, see figure 312 or 314 for the correct assembly and components

1шт.

2

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1-2шт.

3

A14141

FLANGE

SPLIT FLANGE - tube

2-4шт.

4

92-8

LOCK WASHER,1/2"

4-8шт.

5

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4-8шт.

6

L77996

HOSE

- hydraulic reservoir to pump, used before tractor SN 9143772

1шт.

6a

L106943

HOSE ASSY.

HOSE - hydraulic reservoir to pump, used on tractor SN 9143772 - SN 9152629

1шт.

7

L51773

MANIFOLD

TUBE - suction, at pump, used before tractor SN 9148989

1шт.

7a

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

1шт.

8

L51810

BRACKET - tube support, usede before tractor SN 9152629

1шт.

9

A31210

BOLT

U-BOLT - 3/8" - 16 NC

1шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- split flange

1шт.

14

A14141

FLANGE

SPLIT FLANGE - tube

2шт.

15

92-8

LOCK WASHER,1/2"

4шт.

16

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

17

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

19

L54345

TUBE NUT

CONNECTOR - straight, hose stem, Includes: Ref. 20

1шт.

20

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- connector

1шт.

21

REF

INSTRUCTION

PUMP - hydraulic, parts list figure 192

1шт.

22

113-604

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

24

L54624

CHAIN (AG)

CHAIN - suction hose supportc if used

1шт.

25

R22054

CLAMP

- hose, if used

1шт.

26

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

If used Hex, 5/16"-18 x 1 1/4", G5

1шт.

27

92-5

LOCK WASHER,5/16"

if used 5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

If used 5/16"-18, G5

1шт.

29

214-350

CLAMP,#48, 2.37"-2.68", T-Bolt

- hose, used with Ref. 6A and Ref. 32 only

1шт.

30

L109733

TUBE - suction, at pump, used on tractor SN 9148989 - SN 9152629

1шт.

31

L111423

MANIFOLD

TUBE - suction, at pump, used on tractor SN 9152629 and after

1шт.

32

L114887

HOSE ASSY.

HOSE - tank to pump, used on tractor SN 9152629 ans after

1шт.

33

L111426

BRACKET - tube support, used with Ref. 31 suction tube

1шт.
