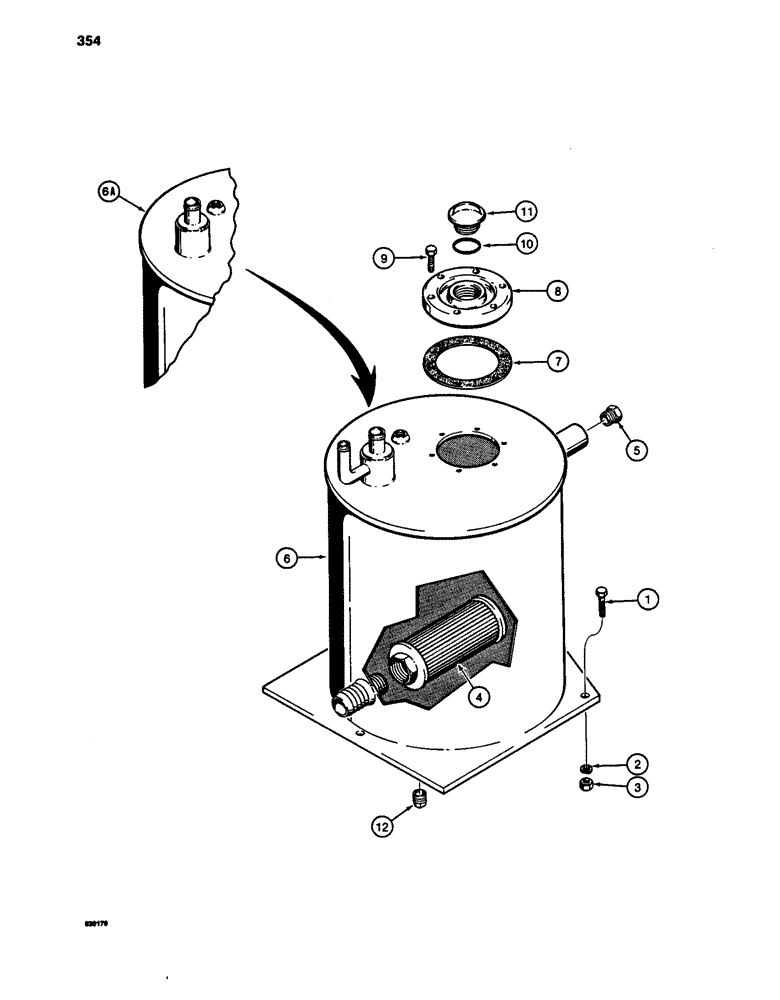

Запчасти Case W24C (354) - HYDRAULIC RESERVOIR, USED ON TRACTOR SN 9143772 AND AFTER (08) - HYDRAULICS

1

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

3

25-1010

NUT,5/8"-11, G5

5шт.

4

D128527

STRAINER ASSY.

SCREEN - suction

1шт.

5

L106452

GAUGE

- sight

1шт.

L106705

HYDRAULIC RESERVOIR ASSEMBLY - with external filter, used on tractor SN 9143772 - SN 9148988, Includes: Ref. 6 - 12

1шт.

L109496

TANK, HYDRAULIC OIL

HYDRAULIC RESERVOIR ASSEMBLY - with external filter, used on tractor SN 9148989 and after, Includes: Ref. 6 - 12

1шт.

6

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil, L106705 reservoir assembly

1шт.

6a

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil, L109496 reservoir assembly

1шт.

7

D50547

GASKET,1.52mm Thk

- cover

1шт.

8

D34977

CAP

COVER - hydraulic reservoir

1шт.

9

L107828

BOLT

- special

6шт.

10

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

- cap

1шт.

11

L100349

PLUG

CAP - hydraulic reservoir

1шт.

12

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - magentic drain

1шт.
