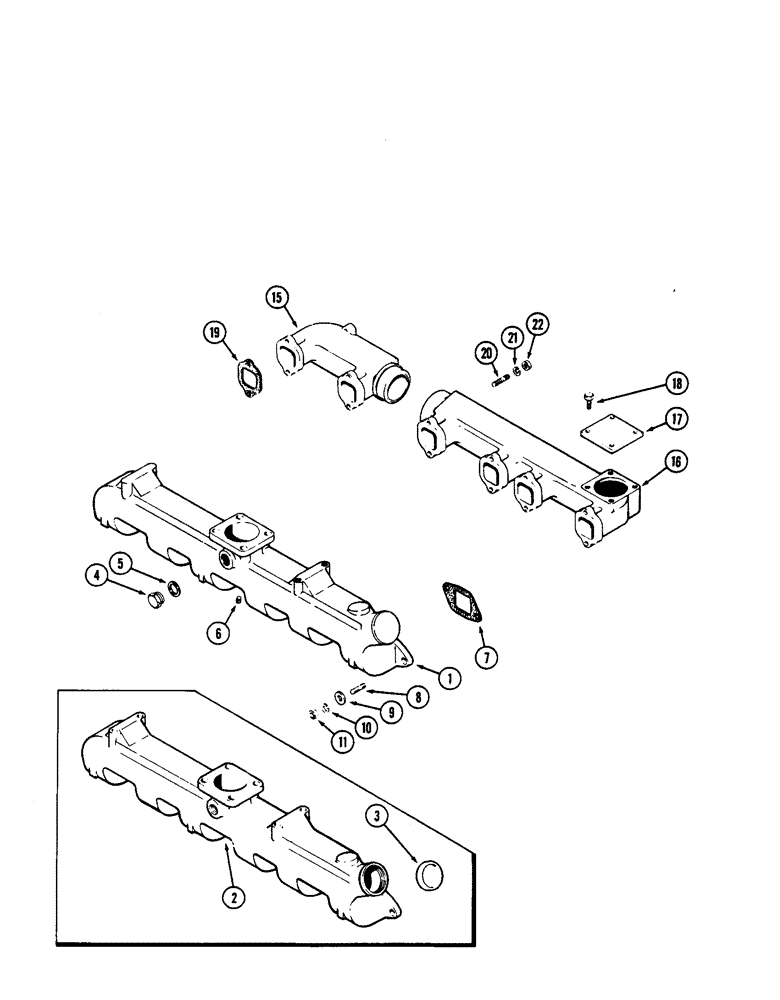

Запчасти Case W24C (018) - MANIFOLDS, 504BD NATURALLY ASPIRATED ENGINE, INTAKE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake (Includes Refs. 4 - 6), Includes: Ref. 3 - 6

1шт.

2

A66087

MANIFOLD

ASSEMBLY - intake (Order A154446), Includes: Ref. 3 - 6

1шт.

3

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8 inch (67 mm) cup type

1шт.

4

L10283

PLUG

- heater hole

1шт.

5

A20916

MANIFOLD GASKET

GASKET - plug

1шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

7

A58662

MANIFOLD GASKET

- intake manifold

6шт.

8

A59077

STUD

- intake manifold, 3/8 NC x 1-3/4 inch

12шт.

9

195-25

WASHER,3/8"

- 3/8 x 13/16 x 1/16 inch (10 x 21 x 2 mm)

12шт.

10

92-6

LOCK WASHER,3/8"

12шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

12шт.

15

A58664

MANIFOLD

- exhaust, rear

1шт.

16

A65272

MANIFOLD

ASSEMBLY - exhaust (Remove cup plug prior to assembly to rear exhaust), Includes: Ref. 17 and 18

1шт.

17

A58665

COVER

- front exhaust manifold

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover to manifold, exhaust Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

19

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

6шт.

20

A59077

STUD

- exhaust manifold 3/8 NC x 1-3/4 inch

12шт.

21

92-6

LOCK WASHER,3/8"

exhaust 3/8"

12шт.

22

131-903

NUT,3/8"-16

NUT - hex Seez-Pruf, 3/8 inch NC, exhaust

12шт.
