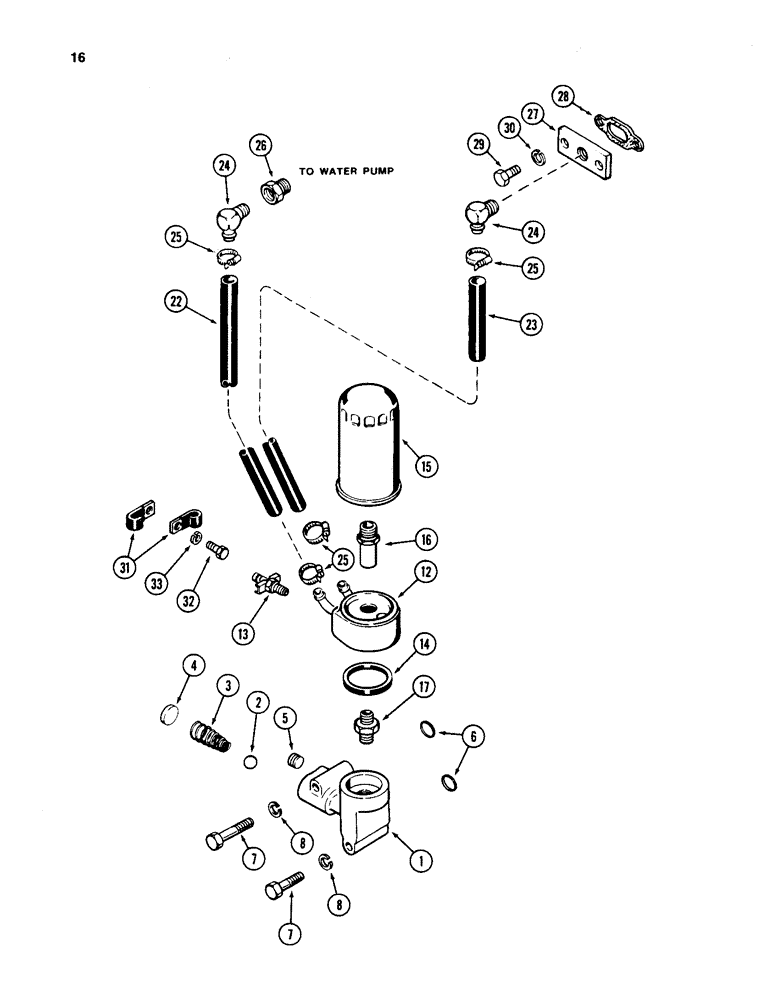

Запчасти Case W24C (016) - OIL FILTER AND COOLER, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

A154788

BASE

ASSEMBLY - oil filter and cooler (Replaces A65849), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - oil cooler (Use with A58831 adapter)

1шт.

2

211-17

BALL,3/4" Dia

- valve

1шт.

3

A146897

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve, 1-1/4 inch (35 mm) cup type

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- hex, socket head, 1/2 inch PT

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- base to block 15/16 x 1-5/16 x 1/8 inch (24 x 33 x 3 mm)

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Base to block Hex, 1/2"-13 x 3 3/4", G5

2шт.

8

195-33

WASHER,1/2"

- 1/2 x 1 x 1/8 inch (13 x 25 x 2 mm)

2шт.

12

A66295

COOLER

- oil

1шт.

13

217-107

VALVE

- cooler drain (discard 1/8 inch pipe plug in cooler)

1шт.

14

A153806

SEALING RING

- oil cooler to base (Replaces A66410)

1шт.

15

A44081

ENGINE OIL FILTER

FILTER - oil

1шт.

16

A66992

ADAPTER

- upper (1-12 inch NF external threads and 3/4-16 inch NF internal threads

1шт.

17

A58831

ADAPTER

- lower (1-8 inch NC external threads and 3/4-16 inch NF external threads)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 15 inch long (381.0 mm) (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 29 inch long (737 mm) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8 x 1 x 600 inch (16 x 25 x 15 240.0 mm) (cut to length required)

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose, 90 degree with barb end

2шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16 to 1-1/16 inch (14 to 27 mm)

4шт.

26

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer, 3/4 to 1/2 inch (to water pump) (If equipped)

1шт.

27

A66993

FLANGE

- outlet hose (to block)

1шт.

28

A58670

GASKET

- flange

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flange to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLIP - hose

2шт.

32

13-615

BOLT - clip, hex 3/8 NC x 7/8 inch

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.
