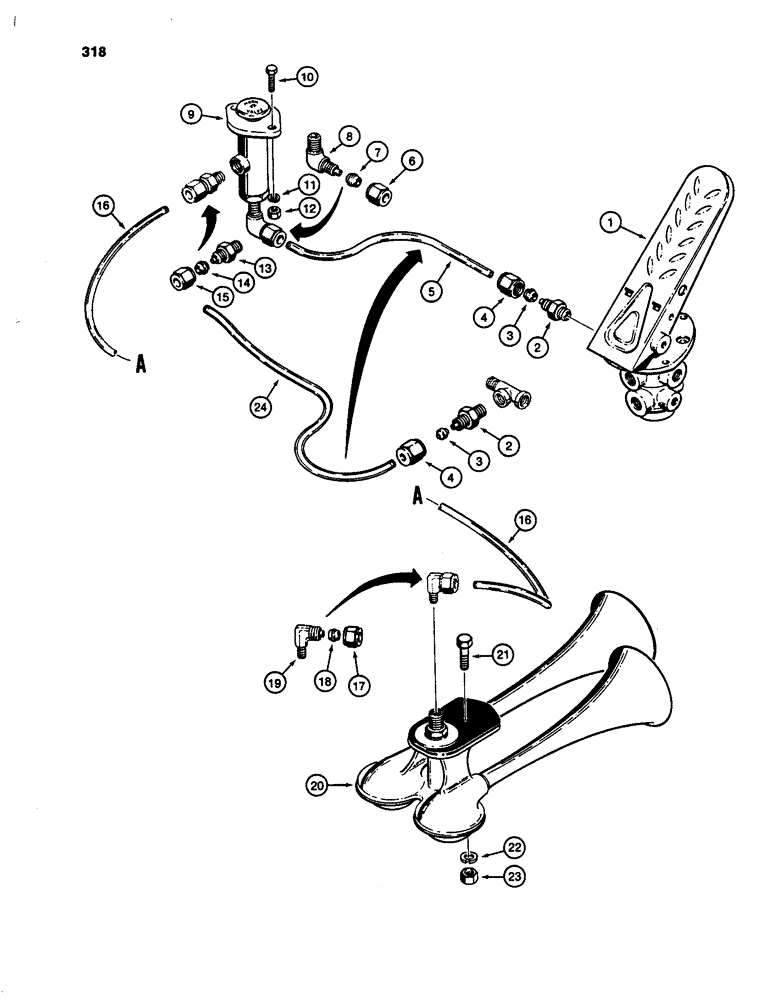

Запчасти Case W24C (318) - AIR SYSTEM, TREADLE TO HORN (07) - BRAKES

1

L73042

VALVE, BRAKE

TREADLE AND VALVE ASSEMLBY - brake, left-hand, parts list figure 320, Includes: Ref. 2 - 4

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

3

222-2610

SLEEVE

- fitting

1шт.

4

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

5

A67322

TUBE

- 1/4" (6 mm) OD x (3200 mm) long, cut to 8" (203 mm) length, used before tractor SN 9152331

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 6 - 8

1шт.

6

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

7

222-2610

SLEEVE

- fitting

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

9

L12647

VALVE

- horn, air parts list figure 344

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

14

222-2610

SLEEVE

- fitting

1шт.

15

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

16

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 33" (838 mm) length

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 17 - 19

1шт.

17

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

18

222-2610

SLEEVE

- fitting

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

20

L76560

HORN

- air, parts list page 349, Includes: Ref. 21 - 23

1шт.

21

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

23

25-104

NUT,1/4"-20, G5

1шт.

24

A67322

TUBE

- 1/4" (6 mm) OD x 126" (3200 mm) long, cut to 30" (762 mm) length, used on tractor SN 9152331 and after

1шт.
