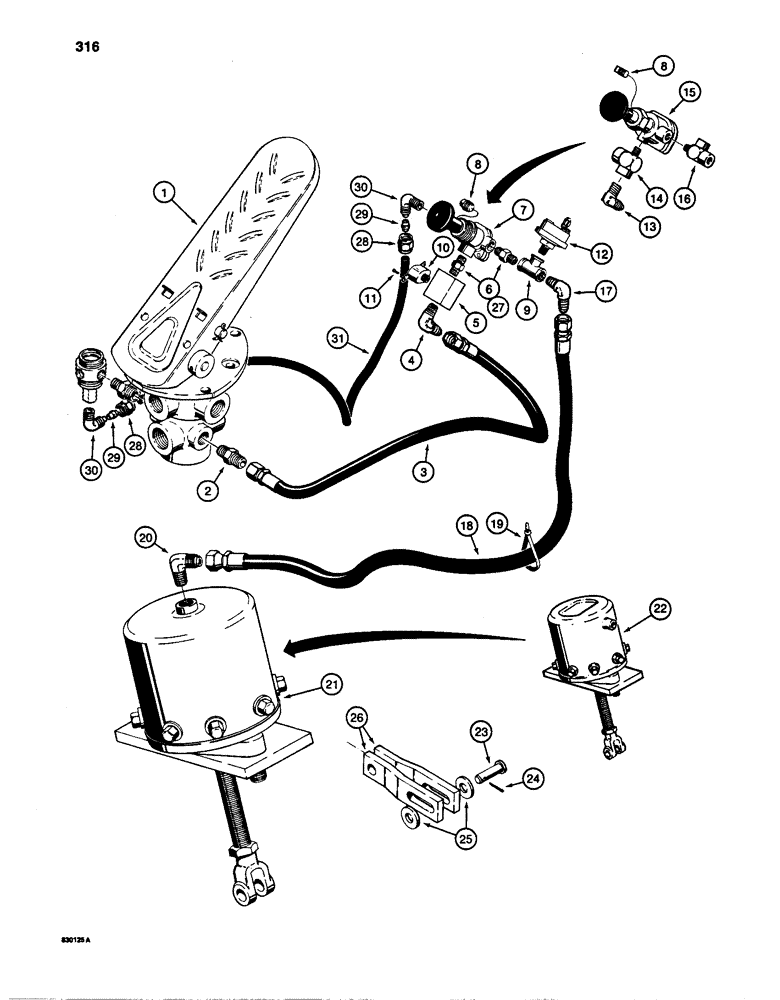

Запчасти Case W24C (316) - BRAKE SYSTEM, PARKING BRAKE VALVE TO PARKING BRAKE ACTUATOR (07) - BRAKES

1

L113007

CYLINDER

TREADLE ASSEMBLY - right-hand, parts list Figure 289

1шт.

2

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

3

L52184

HOSE

- 56" (1422 mm) long

1шт.

4

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male, used L52178 valve, Ref. 7

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

5

L13273

UNION TEE

TEE - special, used with L51278 valve, Ref. 7

1шт.

6

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - male, staight, used with L52178 valve, Ref. 7

2шт.

7

L52178

VALVE

ASSEMBLY - parking brake, mounts with two mounting screws, parts list figure 322, order L36199 kit, see below

1шт.

8

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT, if used

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

9

221-421

TEE,1/8" NPT

- , used with L52178 valve, Ref. 7 1/8" NPT

1шт.

10

L48480

SWITCH

- air pressure

1шт.

11

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- No. 8 - 32 NC x 1/4"

2шт.

12

L109945

TRANSMITTER

SENDER - air pressure

1шт.

13

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male, used with L103834 valve, Ref. 15

1шт.

14

217-1250

TEE,1/4"-18 Female x 1/8"-27 Male Run

- special, used with L103834 valve, Ref. 15

1шт.

15

L103834

VALVE

ASSEMBLY - parking brake, mounts with lock nut, parts list figure 324

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

16

217-1061

TEE,1/8" - 27 Female x 1/8" - 27 Male Run

- special, used with L103834 valve, Ref. 15

1шт.

17

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

18

L52185

HOSE ASSY.

HOSE - 105" (2667 mm) long

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

20

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

21

L48127

CHAMBER

PARKING BRAKE ACTUATOR - parts list figure 338, no longer available, order L61187 parking brake actuator

1шт.

22

L61187

CHAMBER

PARKING BRAKE ACTUATOR - parts list figure 340

1шт.

23

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

1шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

25

95-7

WASHER,7/16"

- flat, 7/16"

2шт.

26

L108528

LINK

- parking brake

2шт.

27

221-1103

FITTING,Nipple, 1/8" NPT x 1"

NIPPLE - pipe, 1/8" NPT x 1", used when adapting, Ref. 15 to Refs. 5 and 9

2шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression 90 degree, Includes: Ref. 28 - 30

2шт.

28

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

29

222-2610

SLEEVE

- fitting

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

31

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- 1/4" (6 mm) OD x 210" (5340 mm) long, cut to 52" (1321 mm) length

1шт.

L36270

KIT

- clutch disconnect, includes Ref. 28 - 31 above and additional items on figure 310, for use on tractors before SN 9152623

1шт.

Part of Parking Brake Valve Kit P/N L36199

1шт.

L36199

VALVE

KIT - parking brake valve, to service L52178 valve, Includes: Ref. 4, 8, 15, 17 and 27 and P/N L36270

1шт.
