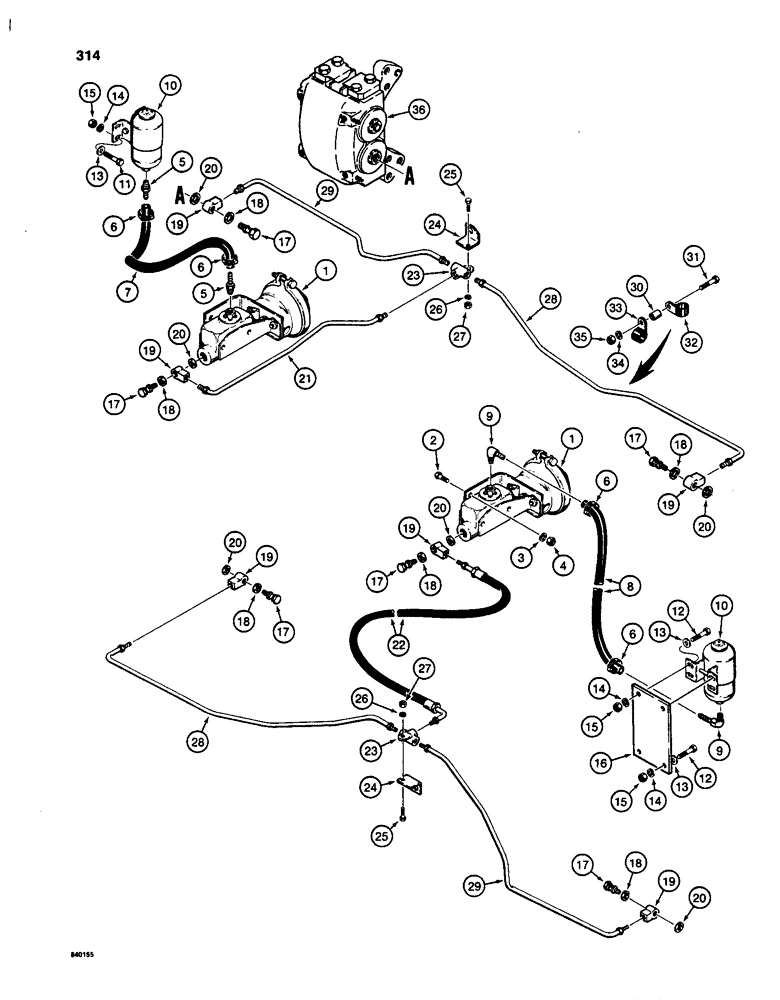

Запчасти Case W24C (314) - BRAKE SYSTEM, BRAKE FLUID RESERVOIRS TO BRAKE CALIPERS, FOR ROCKWELL AXLES (07) - BRAKES

1

L113007

CYLINDER

BRAKE ACTUATOR - used on tractor SN 9152656 and after Minnesota Automotive part No.02-460-503, list figure 336

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1/2"

4шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

4шт.

1

L107985

CYLINDER BLOCK

BRAKE ACTUATOR - used on tractor SN 9143927 , and SN 9143948 SN 9143948 - SN 9152622, Wagner part No. AF104381, parts list figure 328 order L112959 brake actuator

2шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight

2шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

7

109195

HOSE - 1/4" ID (6 mm) x 8" (203 mm) long, cut from L109194 hose, see below

1шт.

8

L109196

HOSE

- 1/4" ID (6 mm) x 17" (422 mm) long, cut from L109194 hose, see below

1шт.

9

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

STEM FITTING - 90 degree

2шт.

10

L71025

RESERVOIR

- brake fluid, parts list figure 350

2шт.

11

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head , 3/8" - 16 NC x 1-1/2"

2шт.

12

113-620

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex head, 3/8" - 16 NC x 1-1/4

4шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

14

92-6

LOCK WASHER,3/8"

6шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

16

L77943

BRACKET

- rear reservoir

1шт.

17

A12864

BOLT

- special

6шт.

18

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, outer, .600" (15.4 mm) ID

6шт.

19

A18531

FITTING

- brake, Serial Range: actuator-tube

6шт.

20

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting, inner, .540" (13.72 mm) ID

6шт.

21

L112980

TUBE,0.25 mm OD

- front, to tee

1шт.

22

L103424

HOSE,4.78mm ID x 711.2mm L

-, Serial Range: rear,-tee

1шт.

23

A12451

FITTING

TEE - axle

2шт.

24

L112941

BRACKET

- tee

2шт.

25

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

28

L112938

TUBE,6.35 mm OD

- tee to wheel cylinder, right-hand front, left-hand rear

2шт.

29

L112940

TUBE,6.35 mm OD

- tee to wheel cylinder, left-hand front, right-hand rear

2шт.

30

D95745

BUSHING

SPACER - clamp

4шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

32

R14668

CLAMP

- tube support

4шт.

33

49851

SHIELD

- brake tube

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

36

REF

INSTRUCTION

CALIPER - brake, see figures 274 and 276 for correct caliper and components

4шт.

L109194

HOSE

- 1/4" (6 mm) ID x 25" (635 mm) long, not shown

1шт.
