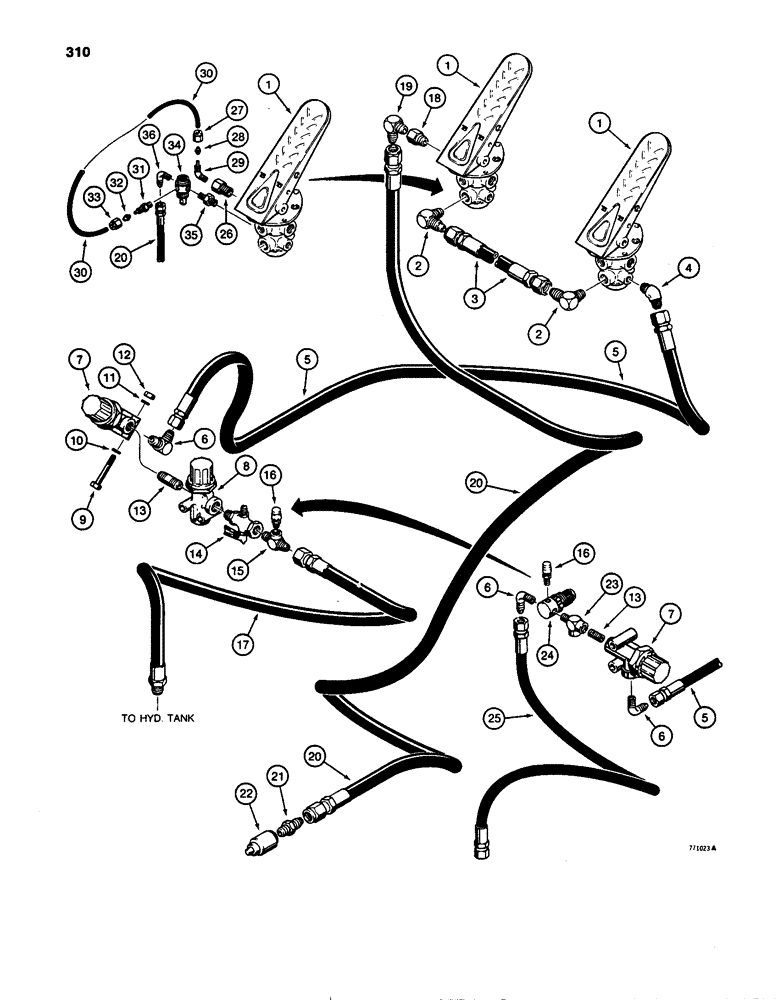

Запчасти Case W24C (310) - BRAKE SYSTEM, TREADLE TO CLUTCH CUT-OUT AND HYDRAULIC (07) - BRAKES

1

REF

INSTRUCTION

TREADLE AND VALVE - brake control, parts list figure 320

2шт.

2

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree

2шт.

3

L70922

HOSE ASSY.,0.50" ID x 15.00", SAE 1402 Type A

HOSE ASSY, 0.50" ID x 15.00", SAE 1402, Type A

1шт.

4

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

1шт.

5

L53613

HOSE

- 41" (1041 mm) long

1шт.

6

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

2шт.

7

L13530

VALVE

- pressure protection, parts list figure 344

1шт.

8

L48129

VALVE

- pressure regulator, used before tractor SN 9152331, parts list figure 342

1шт.

9

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

10

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

13

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - 1/4 " NPT x 15/16"

1шт.

14

L53739

VALVE

- shutoff, used before tractor SN 9152331

1шт.

15

L48132

FITTING

TEE - special, used before tractor SN 9152331

1шт.

16

D38663

VENT

VALVE - relief

1шт.

17

L48026

HOSE

- 16" (406 mm) long, used before tractor SN 9152331

1шт.

18

221-1088

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" NPT x 1/4" NPT, used without automatic clutch disconnect

1шт.

19

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, used without automatic clutch disconnect

1шт.

20

L70915

HOSE ASSY.,0.25" ID x 64.00", SAE 1402 Type B

HOSE ASSY, 0.25" ID x 64.00", SAE 1402, Type B

1шт.

21

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

1шт.

22

L109583

VALVE

CYLINDER - clutch cut-out

1шт.

23

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4" NPT, used on tractor SN 9152331 and after

1шт.

24

L112300

VALVE

- pressure reducing, used on tractor SN 9152331 and after, parts list figure 346

1шт.

25

L53615

HOSE ASSY.

HOSE - 21" (53 mm) long, used on tractor SN 9152331 and after

1шт.

26

221-87

REDUCER,1/2" NPT x 1/8" NPT

- 1/2" NPT x 1/8" NPT, used with automatic clutch discount

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree, Includes: Ref. 27 - 29

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

27

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

28

222-2610

SLEEVE

- fitting

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

30

L108947

TUBE,4.32 mm ID x 6.35 mm OD x 5340 mm L

- 1/4" (6 mm) OD x 210" (5340 mm) long cut to 52" (1321 mm) length

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 31 - 33

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

32

222-2610

SLEEVE

- fitting

1шт.

33

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

34

L109922

VALVE

- pilot, parts list figure 347A

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

35

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - male, straight

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

36

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, male

1шт.

Part of Clutch Disconnect Kit P/N L32670

1шт.

L32670

KIT - clutch disconnect, Includes: P/N 222-2640 and 222-2625 and Ref. 26, 30 34, 35 and 36, and additional Refs. not used on this model, for use on tractors before SN 9152623

1шт.
