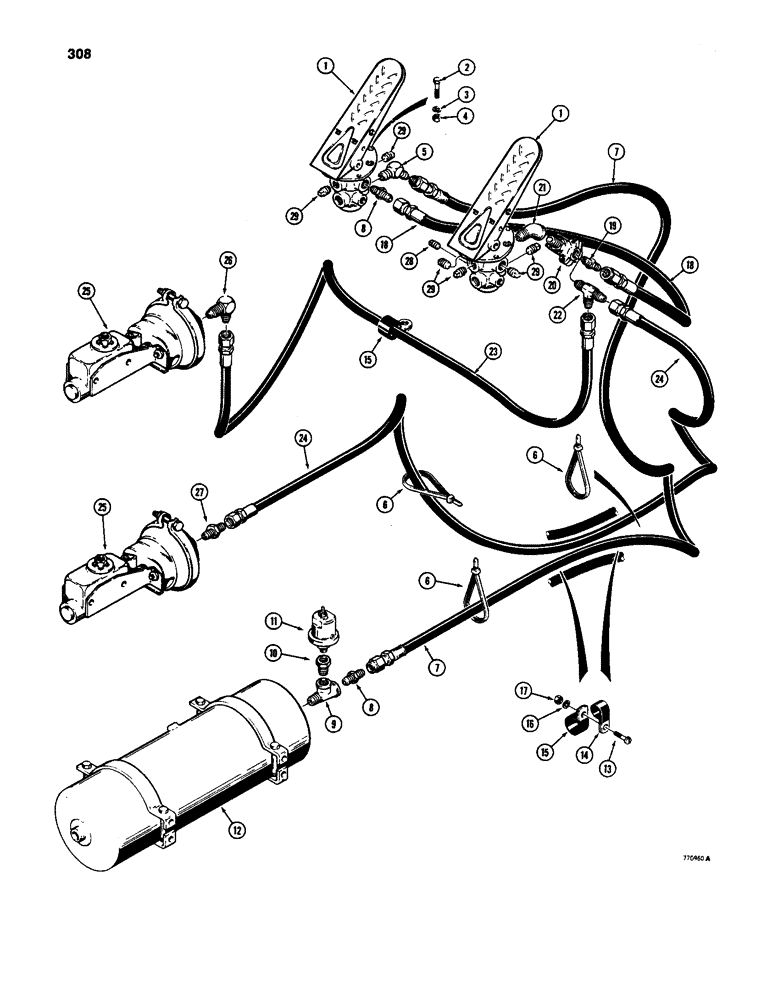

Запчасти Case W24C (308) - BRAKE SYSTEM, AIR RESERVOIR TO TREADLES AND MASTER CYLINDERS (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
L73042
VALVE, BRAKE
TREADLE AND VALVE - brake control, parts list figure 320
2шт.
2
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
6шт.
3
92-5
LOCK WASHER,5/16"
6шт.
4
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC
6шт.
5
218-1096
ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF
- 45 degree
1шт.
6
L108337
TIE STRAP - hose
1шт.
7
L51330
HOSE
- 95" (2413 mm) long
1шт.
8
218-454
HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF
CONNECTOR - straight
2шт.
9
221-1693
TEE,Street, 1/2" NPT
- 1/2" NPT
1шт.
10
221-1054
BUSHING
REDUCER - 1/2" x 1/8 NPT
1шт.
11
L109945
TRANSMITTER
SENDER - air pressure
1шт.
12
L14823
TANK
RESERVOIR - air
1шт.
13
77-516
BOLT (SPREADER),M16 x 75mm, Cl 8.8
SCREW - truss head, 5/16" - 18 NC x 1", if used
4шт.
14
49838
CLAMP
- small, if used
4шт.
15
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
- large, if used
4шт.
16
92-5
LOCK WASHER,5/16"
if used 5/16"
4шт.
17
9635082
NUT,5/16" - 18, Gr 5
- hex, 5/16" - 18 NC, if used
4шт.
18
L48025
HOSE
- 23" (584 mm) long
1шт.
20
L48128
VALVE
- double check and stoplight switch, parts list figure 342
1шт.
21
221-1404
ELBOW,45 Degree, 1/2"-14, NPT
- 45 degree
1шт.
22
218-626
TEE,9/16"-18, 37º x 3/8"-18, NPTF Run
- male 3/8" NPT
1шт.
23
L78042
HOUSING
HOSE - 54" (1372 mm) long
1шт.
24
L52707
HOSE
- 98" (2489 mm) long
1шт.
25
REF
INSTRUCTION
BRAKE ACTUATORS - see figures 326 - 336 for the correct assembly and components
2шт.
26
218-1053
ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF
- 90 degree
1шт.
27
218-1024
HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF
CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF
1шт.
28
221-1002
DRAIN PLUG,Sq Hd, 1/4"-18 NPTF
PLUG - square head, 1/4" NPT
1шт.
29
221-1004
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - square head, 1/2" NPT
6шт.
Выбрано товаров: 29
