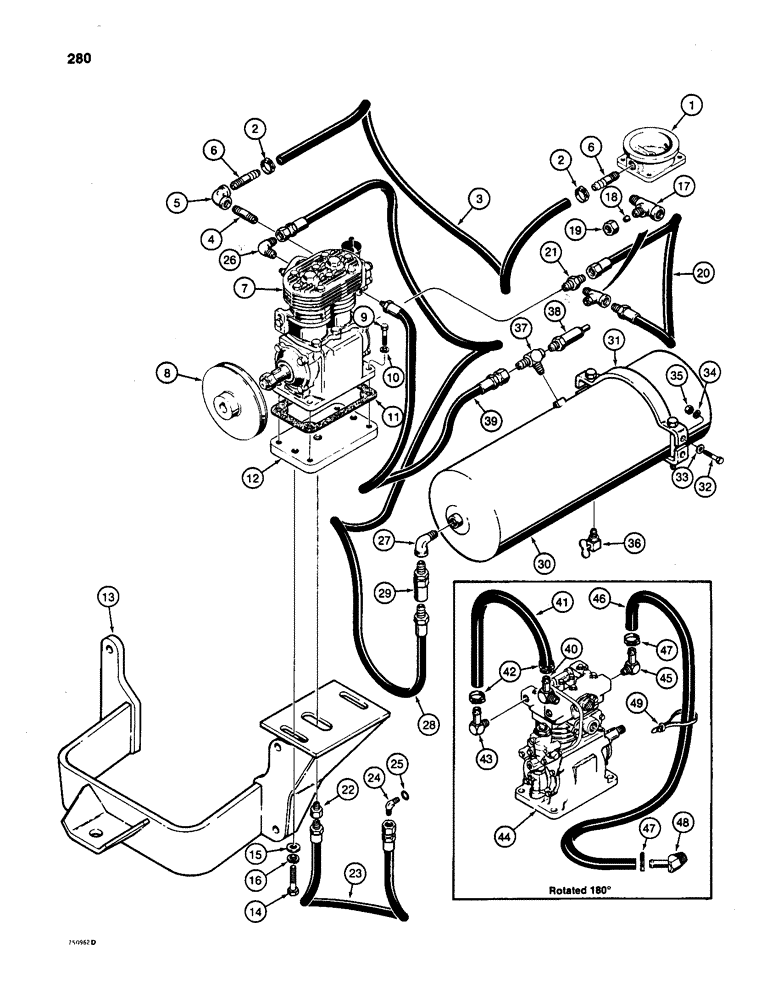

Запчасти Case W24C (280) - AIR COMPRESSOR TO RESERVOIR (07) - BRAKES

1

REF

INSTRUCTION

ADAPTER - air cleaner to intake manifold, see figure 58

1шт.

2

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

L10357

INTAKE AIR HOSE,0.75" ID x 36.00", SAE 20R1

0.75" ID x 36.00", SAE 20R1

1шт.

4

221-1192

FITTING

NIPPLE - 1/2" NPT x 2", used with air cooled air compressor

1шт.

5

221-1377

ELBOW,90 Degree, 1/2" NPT

- 90 degree, 1/2" NPT, used with air cooled compressor

1шт.

6

217-160

FITTING,3/4" Hose Barb x 1/2" Male NPTF

- straight, used with air cooled compressor

2шт.

7

L57774

COMPRESSOR

- air, cast iron block, air cooled, parts list figures 286, no longer available, order L105648 air compressor, Ref. 44 and L36261 kit, and Refs. 41, 46, and 49 on figure 280

1шт.

7

L79411

COMPRESSOR

- air, aluminum block, air cooled, parts list figures 290 , no longer available, order L105648 air compressor, Ref. 44 and L3626 kit, and Refs. 41, 46, and 49 on figure 280

1шт.

7

L109543

COMPRESSOR

AIR COMPRESSOR - aluminum block, air cooled, parts list figures 290 no longer available, order L105648 air compressor, Ref. 44 and L36261 kit, and Refs. 41, 46, and 49 on figure 280

1шт.

8

L57805

PULLEY

- air compressor

1шт.

9

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

4шт.

10

92-7

LOCK WASHER,7/16"

4шт.

11

D80610

GASKET

- mounting, Serial Range: plate-compressor

1шт.

12

L71527

PANEL

PLATE - air compressor mounting for L57774, no longer available, order L100499 and (2) 13-816 bolts

1шт.

12

L100499

BASE

PLATE - air compressor mounting for L57774, L79411 and L109543 compressors

1шт.

13

REF

INSTRUCTION

BRACKET - engine and compressor, see figure 54

1шт.

14

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Used with L71527 plate Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

14

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used with L100499 plate Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

15

D64050

WASHER

- 1/2", hardened

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

FITTING - tee assembly, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

TEE - fitting

1шт.

18

222-102

SLEEVE,1/4" Tube

1шт.

19

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

20

L100556

HOSE,0.25" ID x 17.00"

1шт.

21

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - male

1шт.

22

221-53

BUSHING

FITTING - reducer

1шт.

23

L16574

HOSE,0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

ASSY, 0.38" ID x 15.50", SAE 30R3 Typ 2 Or SAE 100R6

1шт.

24

218-5278

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl. Ref. 25 90º, 9/16"-18, 37º x 7/16"-20, O-Ring

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

fitting

1шт.

26

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - street, 90 degree

1шт.

27

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

FITTING - 90 degree

1шт.

28

L58528

AIR HOSE,0.50" ID x 26.50", SAE 100R1

1шт.

29

G45437

LOCK VALVE

CHECK VALVE - air reservoir

1шт.

30

L14823

TANK

RESERVOIR - air brake system

1шт.

31

L12632

BRACKET

- reservoir, mounting

2шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

33

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

34

92-6

LOCK WASHER,3/8"

4шт.

35

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC x 1-1/4"

4шт.

36

L112624

LOCK VALVE

VALVE - drain, reservoir

1шт.

37

L48131

FITTING

TEE - special

1шт.

38

L48992

VALVE,1/4"

ASSEMLBY - safety

1шт.

39

L47886

HOSE

- 27" (686 mm) long

1шт.

40

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

STEM FITTING - 90 degree

1шт.

41

L100197

RADIATOR HOSE,0.63" ID x 18.00", SAE 20R3

- Air compressor, Water supply 0.63" ID x 18.00", SAE 20R3

1шт.

42

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

43

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - 90 degree

1шт.

44

L105648

COMPRESSOR

AIR COMPRESSOR - water cooled, see figures 298 for parts list

1шт.

45

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

STEM FITTING - 90 degree

1шт.

46

A75898

HOSE

- air, Serial Range: compressor-radiator

1шт.

47

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

48

217-425

45 ELBOW,5/8" Hose Barb x 3/4" NPTF

STEM FITTING - 45 degree

1шт.

49

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

L36261

PIPE FITTING

KIT- water cooled air compressor, includes Refs. 40, 42, 43, 45, 47, and 48

1шт.
