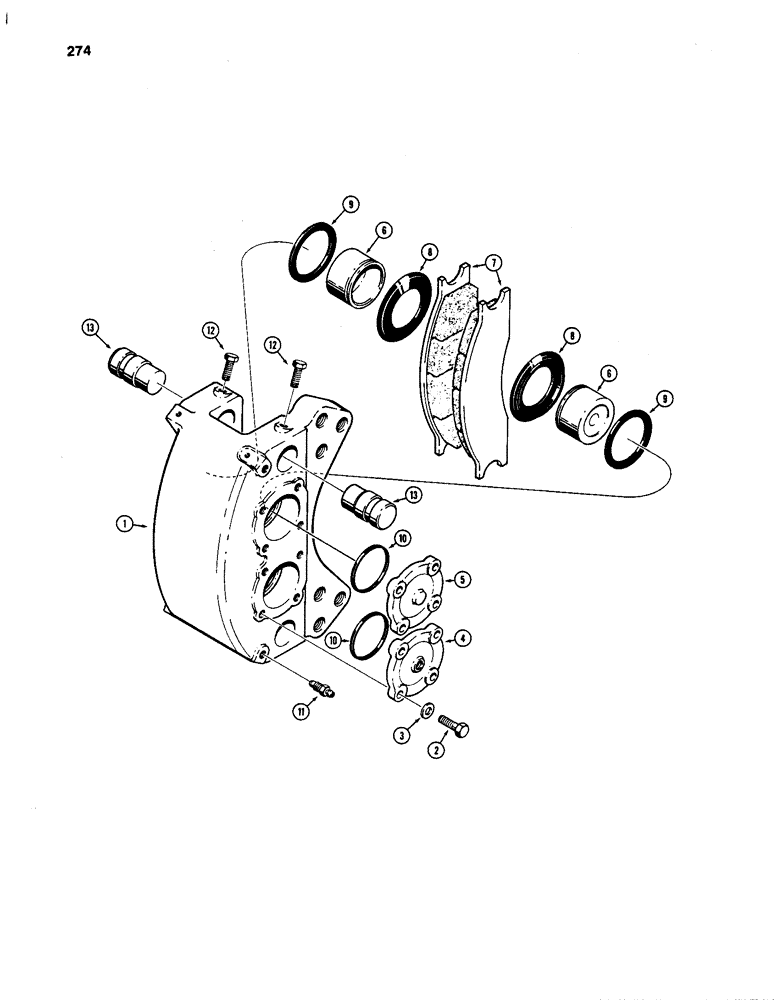

Запчасти Case W24C (274) - GOODRICH BRAKE CALIPERS, FOR CLARK AXLES (06) - POWER TRAIN

L73912

BRAKE CALIPER

CALIPER - right-hand, used before tractor SN 9152656, Includes: Ref. 1 - 13

2шт.

L73913

BRAKE CALIPER

CALIPER - left-hand, used before tractor SN 9152656, Includes: Ref. 1 - 13

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - caliper

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

3

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

4

D77520

COVER

CAP - inlet

1шт.

5

D77521

CAP

- piston

1шт.

6

D77523

PISTON

- brake

4шт.

7

D77519

BRAKE PAD

SHOE AND LINING - caliper

2шт.

N7357

SEAL

KIT - seal, Includes: Ref. 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

BOOT - piston

2шт.

9

NSS

NOT SOLD SEPARAT

PACKING - piston

2шт.

10

NSS

NOT SOLD SEPARAT

PACKING - cover

1шт.

11

D77517

VALVE

- bleeder

2шт.

12

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, Locking, 3/8"-16 x 1", G5, Full Thd

4шт.

13

D77524

PIN

- shoe

4шт.
