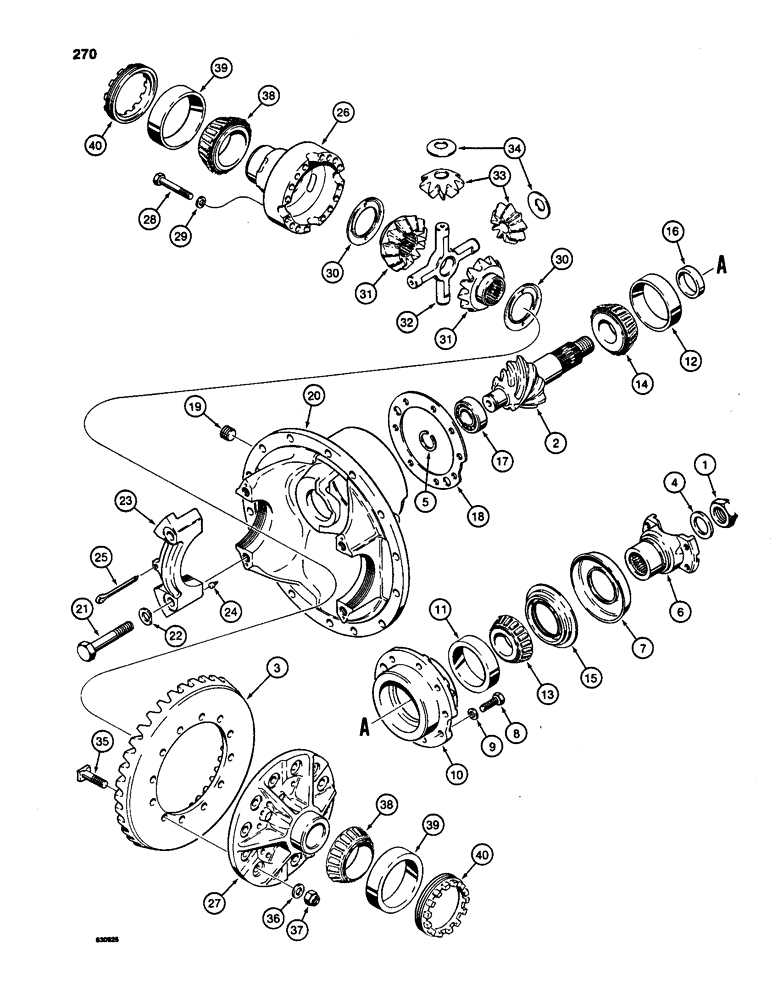

Запчасти Case W24C (270) - REAR AXLE DIFFERENTIAL - ROCKWELL (06) - POWER TRAIN

L112437

AXLE

ASSEMBLY - rear, Rockwell part No. PRC673N203, Includes: Ref. 1 - 40

1шт.

L115211

AXLE

ASSEMBLY - rear, Rockwell part No.PRC673N207, Includes: Ref. 1 - 40

1шт.

N8607

CARRIER

DIFFERENTIAL ASSEMBLY - rear axle, used with L112437 axle, Includes: Ref. 1 - 40

1шт.

N9068

CARRIER

DIFFERENTIAL ASSEMBLY - rear axle, used with L115211 axle, Includes: Ref. 1 - 40

1шт.

N8616

PIN

GEAR AND PINION KIT - differential, Includes: Ref. 1 - 3

1шт.

1

S113912

LOCK NUT

- special, bevel pinion

1шт.

2

NSS

NOT SOLD SEPARAT

PINION GEAR - bevel, kit

1шт.

3

NSS

NOT SOLD SEPARAT

RING GEAR - kit

1шт.

4

S113914

WASHER

- special, bevel pinoin

1шт.

5

A15442

LOCK

SNAP RING - bearing retaining

1шт.

N8614

YOKE

ASSEMBLY - input, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

7

S113924

SLINGER

- oil

1шт.

8

26-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

- hex head, 7/16" - 14 NC x 1-1/2"

8шт.

9

D47367

WASHER

- special

8шт.

S113909

HOUSING

CAGE ASSEMBLY - pinion shaft bearing, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

11

A138433

BEARING CUP

CUP - bearing, outer

1шт.

12

A9840

BEARING CUP

CUP - bearing, inner

1шт.

13

S113921

TAPERED BEARING

CONE - bearing, outer

1шт.

14

L30032

ROLLER BEARING

CONE - bearing , inner

1шт.

15

S113920

OIL SEAL,63.12mm ID x 98.55mm OD x 9.53mm Thk

- bearing

1шт.

16

D82755

SHIM,.234" Thk

Spacer - bearing (5.944 mm) .234" Thk

1шт.

16

D82756

SHIM,.235" Thk

Spacer - bearing (5.969 mm) .235" Thk

1шт.

16

D82757

SHIM,.236" Thk

Spacer - bearing (5.994 mm) .236" Thk

1шт.

16

D82758

SHIM,.237" Thk

Spacer - bearing (6.020 mm) .237" Thk

1шт.

16

D82759

SHIM,.238" Thk

Spacer - bearing (6.045 mm) .238" Thk

1шт.

16

D82760

SHIM,.239" Thk

Spacer - bearing (6.071 mm) .239" Thk

1шт.

16

D82761

SHIM,.240" Thk

Spacer - bearing (6.096 mm) .240" Thk

1шт.

16

D82762

SHIM,.247" Thk

Spacer - bearing (6.274 mm) .247" Thk

1шт.

16

D82763

SHIM,.254" Thk

Spacer - bearing (6.452 mm) .254" Thk

1шт.

16

D85764

SPACER - bearing, .261" (6.629 mm) thick

1шт.

16

D82765

SEAL

SPACER - bearing, .268" (6.807 mm) thick

1шт.

16

D82766

SHIM,.275" Thk

Spacer - bearing (6.985 mm) .275" Thk

1шт.

16

D82767

SHIM,.282" Thk

Spacer - bearing (7.163 mm) .282" Thk

1шт.

16

D82768

SHIM,.289" Thk

Spacer - bearing (7.341 mm) .289" Thk

1шт.

16

D82769

SHIM,.296" Thk

Spacer - bearing (7.518 mm) .296" Thk

1шт.

16

N8611

SPACER

- bearing, .242" (6.147 mm) thick

1шт.

16

N8612

SPACER

- bearing, .244" (6.198 mm) thick

1шт.

16

N8613

SPACER

- bearing, .246" (6.248 mm) thick

1шт.

17

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

BEARING - pinion, rear

1шт.

18

A12958

SHIM,.003" Thk

Bearing cage (.0762 mm) .003" Thk

1шт.

18

A12956

SHIM,.005" Thk

Bearing cage (.1270 mm) .005" Thk

1шт.

18

A12957

SHIM,.010" Thk

Bearing cage (.2540 mm) .010" Thk

1шт.

19

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- square socket head, 3/4" NPT

1шт.

S236212

TUBE ASSY.,0.5" OD

CARRIER AND CAP - differential, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

21

A12938

SCREW,5/8" - 11 x 4 1/2"

BOLT - special

4шт.

22

A16783

WASHER

- special

4шт.

23

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

24

A15443

DOWEL

PIN - cap

4шт.

25

L30029

PIN

COTTER PIN - bearing adjusting ring

2шт.

S236200

CASE ASSY.

CASE ASSEMBLY - differential, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

28

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex head, 1/2" - 13 NC x 3-1/4"

16шт.

29

D47366

WASHER

- special

16шт.

30

A25142

WASHER

THRUST WASHER - side gear

2шт.

31

A25141

GEAR

SIDE GEAR - differential

2шт.

32

N8615

SPIDER - differential, used with L112437 axle

1шт.

32a

N8605

SPIDER ASSY.

SPIDER - differential, used with L115211 axle

1шт.

33

A25131

PINION

GEAR - spider

4шт.

34

A25140

WASHER

THRUST WASHER - pinion gear

4шт.

35

S113908

BOLT

BOLT - special

12шт.

36

L30737

WASHER

- special

12шт.

37

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, 5/8" - 18 NF

12шт.

38

L33297

ROLLER BEARING

CONE - bearing

2шт.

39

L33303

BEARING CUP

CUP - bearing

2шт.

40

A113916

RING - bearing adjustment

2шт.
