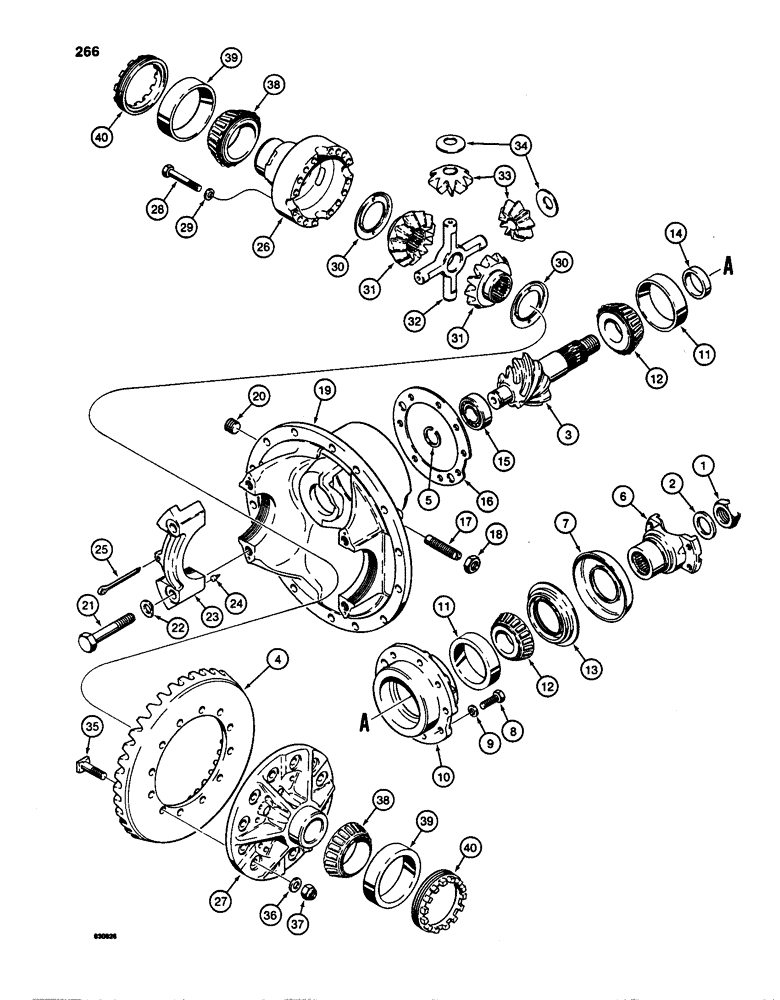

Запчасти Case W24C (266) - FRONT AXLE DIFFERENTIAL - ROCKWELL (06) - POWER TRAIN

L112436

CENTER AXLE

AXLE ASSEMLBY - front, Rockwell part No. PRC676N200, Includes: Ref. 1 - 40

1шт.

N8561

DIFFERENTIAL

ASSEMBLY - front axle, Includes: Ref. 1 - 40

1шт.

N8580

GEAR AND PINION KIT - differential, Includes: Ref. 1 - 5

1шт.

1

N8581

NUT

- special, pinion

1шт.

2

N8582

WASHER

- special, pinion

1шт.

3

NSS

NOT SOLD SEPARAT

PINION GEAR - kit

1шт.

4

NSS

NOT SOLD SEPARAT

RING GEAR - kit

1шт.

5

A15442

LOCK

SNAP RING - bearing retaining

1шт.

N8602

SHIN

YOKE ASSEMBLY - input, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

7

N8603

SLINGER

- oil

1шт.

8

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

8шт.

9

D47366

WASHER

- special

8шт.

N8585

CAGE - pinion shaft bearing, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

11

S61682

CUP

- bearing

2шт.

12

N8584

ROLLER BEARING

CONE - bearing

2шт.

13

N8583

OIL SEAL

- BEARING

1шт.

14

N8591

SPACER - bearing, .229" (7.595 mm) thick

1шт.

14

N8592

SPACER - bearing .300" (7.620 mm) thick

1шт.

14

N8593

SPACER

- bearing, .301" (7.645 mm) thick

1шт.

14

N8594

SPACER - bearing, .302" (7.671 mm) thick

1шт.

14

N8595

SPACER - bearing, .303" (7.696 mm) thick

1шт.

14

N8596

SPACER - bearing, .304" (7.722 mm) thick

1шт.

14

N8597

SPACER - bearing, .310" (7.874 mm) thick

1шт.

14

N8598

SPACER - bearing, .316" (8.026 mm) thick

1шт.

14

N8599

SPACER - bearing, .322" (8.179 mm) thick

1шт.

14

N8600

SPACER - bearing, .328" (8.331 mm) thick

1шт.

15

D82735

ROLLER BEARING,35mm ID x 72mm OD x 20.64mm W

BEARING - pinion, rear

1шт.

16

N8586

SHIM,.003" Thk

Bearing cage (.0762 mm) .003" Thk

1шт.

16

N8587

SHIM,.005" Thk

Bearing cage (.1270 mm) .005" Thk

1шт.

16

N8588

SHIM,.010" Thk

Bearing cage (.2540 mm) .010" Thk

1шт.

17

L31659

BOLT,7/8" x 3 5/8"

SCREW - thrust

1шт.

18

A15428

NUT

- special

1шт.

N8589

CARRIER

AND CAP - differential, Includes: Ref. 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- square socket head, 3/4" NPT

1шт.

21

26-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 8

- hex head, 3/4" - 10 NC x 4-3/4"

4шт.

22

D80625

WASHER

- special

4шт.

23

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

24

A15443

DOWEL

PIN - cap

4шт.

25

A18196

HARDWARE

COTTER PIN - bearing adjusting ring

2шт.

N8601

CASE ASSEMBLY DIFFERENTIAL, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

27

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

28

26-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

- hex head, 1/2" - 13 NC x 3-1/4"

16шт.

29

D47366

WASHER

- special

16шт.

30

A25142

WASHER

THRUST WASHER - side gear

2шт.

31

N8604

GEAR

SIDE GEAR - differential

2шт.

32

N8605

SPIDER ASSY.

SPIDER - differeintial

1шт.

33

A25131

PINION

GEAR - spider

4шт.

34

A25140

WASHER

THRUST WASHER - pinion gear

4шт.

35

N8606

BOLT

- special

12шт.

36

L30737

WASHER

- special

12шт.

37

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, 5/8" - 18 NF

12шт.

38

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE - bearing

2шт.

39

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing

2шт.

40

N8590

RING - bearing adjustment

2шт.
