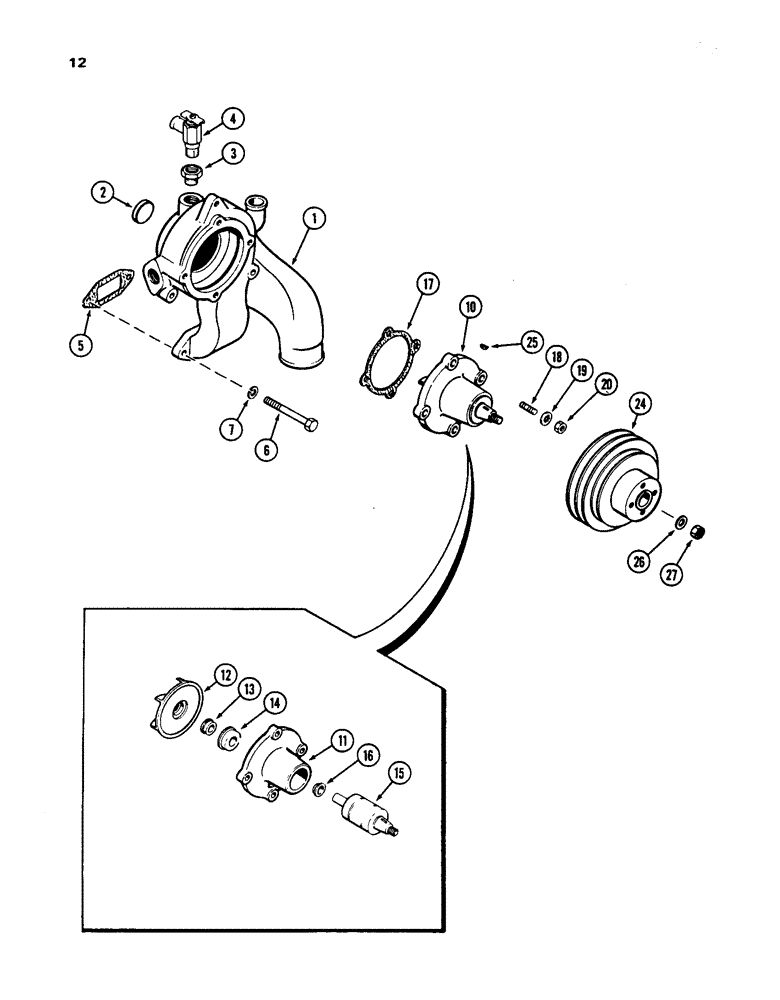

Запчасти Case W24C (012) - WATER PUMP, WITH KEYWAY SHAFT, 504BD AND 504BDT DIESEL ENGINES (02) - ENGINE

1

A136441

HOUSING

BODY ASSEMBLY - water pump, Includes: Ref. 2

1шт.

2

A58568

PLUG,Cup, 1 3/8", Stainless

- 1-3/8 inch (35 mm) cup type

1шт.

3

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 PT to 3/8 inch PT

1шт.

4

A66821

VALVE

- water control

1шт.

5

A58649

GASKET

-, Serial Range: body-block

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

. Body to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

6

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Body to block Hex, 3/8"-16 x 4", G5

2шт.

7

92-6

LOCK WASHER,3/8"

4шт.

10

A152153

PUMP

ASSEMBLY - water, Includes: Ref. 11 - 16

1шт.

FOR REPAIRS ORDER A157145 PUMP, 14-820 BOLT AND A155047 WASHER.

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - pump body

1шт.

12

A152126

IMPELLER

- cast iron

1шт.

13

A34000

SEAL

SEAT - impeller

1шт.

14

A142499

SEAL

- pump shaft

1шт.

15

A58643

SHAFT

BEARING ASSEMBLY - with shaft (Order A156995, 14-820 and A155047, See Figure 14), Includes: Ref. 16

1шт.

16

CASA29440

SLINGER

- water

1шт.

17

A58646

GASKET

-, Serial Range: pump-body

1шт.

18

A166044

STUD

- pump to body, 3/8 NC x 1-7/16 inch

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

24

A58650

PULLEY

- water pump

1шт.

25

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley #9, 3/16" x 3/4", HT

1шт.

26

A58651

WASHER

- pulley, 1/2 x 1-1/16 x 1/16 inch (13 x 27 x 2 mm)

1шт.

27

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley 1/2"-20, GB

1шт.
