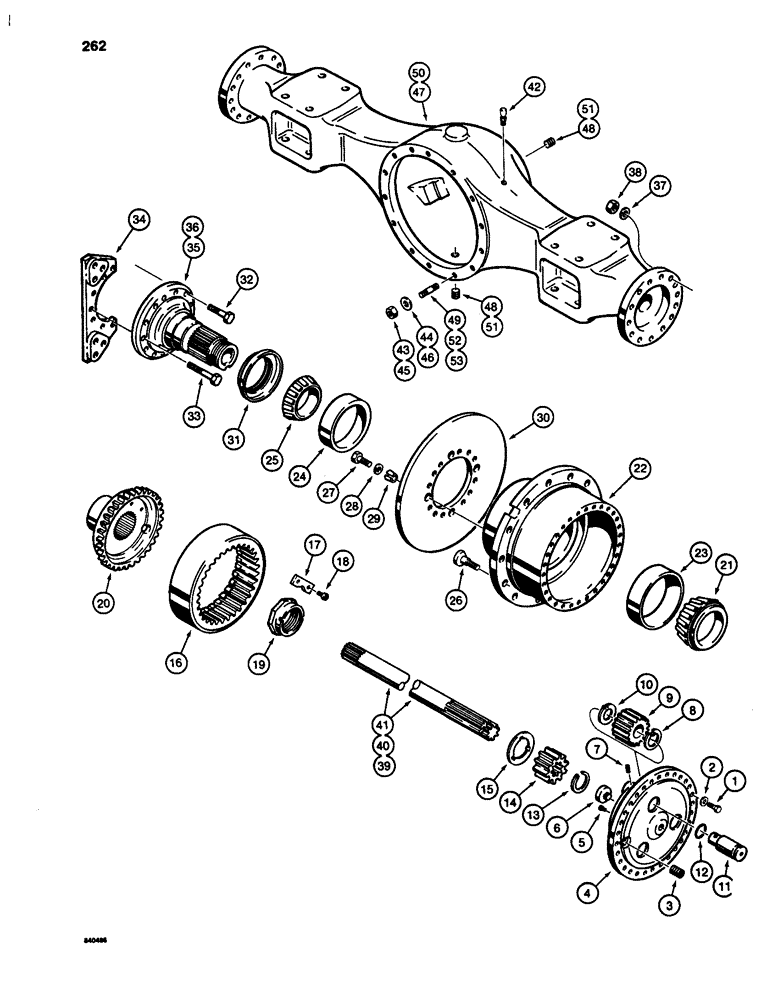

Запчасти Case W24C (262) - AXLE HOUSING AND PLANETARY - ROCKWELL (06) - POWER TRAIN

L112436

CENTER AXLE

AXLE ASSEMBLY - front, Rockwell part No.PRC676N200, Includes: Ref. 1 - 54

1шт.

L112437

AXLE

ASSEMBLY - rear, Rockwell part No. PRC673N203, Includes: Ref. 1 - 54

1шт.

L115211

AXLE

ASSEMBLY - rear, Rockwell part No.PRC673N207, Includes: Ref. 1 - 54

1шт.

1

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

60шт.

2

D47366

WASHER

- special, Serial Range: spider-hub

60шт.

3

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square head, 3/4" NPT, magnetic

2шт.

N8564

SPIDER ASSY.

SPIDER ASSEMBLY - planetary, Includes: Ref. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

5

L36117

BUTTON

- thrust, rear gear

3шт.

6

N8565

BUTTON

- thrust, axle shaft

1шт.

7

N7103

STUD

SET SCREW - special

6шт.

8

N8571

WASHER

THRUST WASHER - outer

6шт.

9

N8572

PINION

- planetary

6шт.

10

A19886

WASHER

THRUST WASHER - inner

6шт.

11

N8570

SHAFT

- pinion

6шт.

12

N8569

O-RING,1.674" ID x 1.88" OD x 0.103"

- pinion shaft

6шт.

13

A14969

RING, SNAP

SNAP RING - sun gear

2шт.

14

N8566

GEAR

SUN GEAR - planetary

2шт.

15

N8715

WASHER

- sun gear

2шт.

16

N8567

GEAR

RING GEAR - planetary

2шт.

17

N8239

KIT

LOCK - bearing adjusting nut

1шт.

18

164-50

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 3/4"

SCREW - hex socket head, 3/8" - 16 NC x 3/4"

2шт.

19

L36120

BEARING LOCK NUT

- special, bearing adjusting

1шт.

20

N8568

HUB

- ring gear

2шт.

21

A14960

BEARING

CONE - wheel bearing, outer

2шт.

N8573

HUB ASSY.

HUB ASSEMBLY - wheel bearing, Includes: Ref. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

HUB - wheel bearing

1шт.

23

A14961

BEARING CUP

CUP - wheel bearing, outer

1шт.

24

A14985

BEARING CUP

CUP - wheel bearing, inner

1шт.

25

A14984

ROLLER BEARING

CONE - wheel bearing, inner

2шт.

26

A13112

STUD

STUD - wheel mounting

24шт.

27

26-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex head, 5/8" - 11 NC x 1-3/4"

32шт.

28

L30737

WASHER

- special

32шт.

29

F17749

DOWEL

PIN -, Serial Range: disc-hub

8шт.

30

N8575

BRAKE DISC

DISC - hub

2шт.

31

N8574

OIL SEAL

- bearing, wheel hub

2шт.

32

28-1248

BOLT,Hex, 3/4" - 16 x 3", Gr 8

- hex head, 3/4" - 16 NF x 3"

14шт.

33

28-1256

BOLT,Hex, 3/4" - 16 x 3-1/2", Gr 8

- hex head, 3/4" - 16 NF x 3-1/2"

14шт.

34

N8578

ADAPTER

- caliper

2шт.

35

N8579

SPINDLE - L112436 front axle

2шт.

36

N8610

SPINDLE

- L112437 and L115211 rear axles

2шт.

37

L36037

WASHER - special

28шт.

38

129-545

NUT,1/2"-20, G8

- hex, 3/4" - 16 NF

28шт.

39

N8576

SHAFT

- axle, 47.44" (1205 mm) long, L112436 front axle

1шт.

40

N8577

SHAFT

- axle, 45.19" (1148 mm) long, L112436 front axle

1шт.

41

N8609

DRIVE SHAFT

SHAFT - axle, 46.62" (1184 mm) long, L112437 rear axle

2шт.

41

N8609

DRIVE SHAFT

SHAFT - axle, 46.42" (1184 mm) long, L115211 rear axle, see Ref. 54

1шт.

42

A12928

BREATHER

- oil

1шт.

43

131-1236

LOCK NUT,5/8"-18, GC

NUT - hex, 5/8" - 18 NF, L112436 front axle

14шт.

44

A16783

WASHER

- special, L112436 front axle

14шт.

45

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex, 1/2" - NF, L112437 rear axle

14шт.

46

L30674

WASHER

- special, L112437 rear axle

14шт.

N8562

HOUSING ASSY.

HOUSING - axle, L112436 front axle, Includes: Ref. 47 - 49

1шт.

47

NSS

NOT SOLD SEPARAT

HOUSING - axle, L112436 front axle

1шт.

48

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- square socket head, 3/4" NPT

2шт.

49

N8563

STUD

- housing, L112436 front axle

14шт.

N8608

HOUSING ASSY.

HOUSING - axle, L112437 rear axle, Includes: Ref. 50 - 53

1шт.

50

NSS

NOT SOLD SEPARAT

HOUSING - axle, L112437 rear axle

1шт.

51

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- square socket head, 3/4" NPT

2шт.

52

L30673

STUD

- housing, long, L112437 rear axle

4шт.

53

A13130

STUD

- housing, short, L112437 rear axle

10шт.

54

N9069

SHAFT

- axle, 45.62" (1159 mm), L115211 rear axle, see Ref. 41

1шт.
