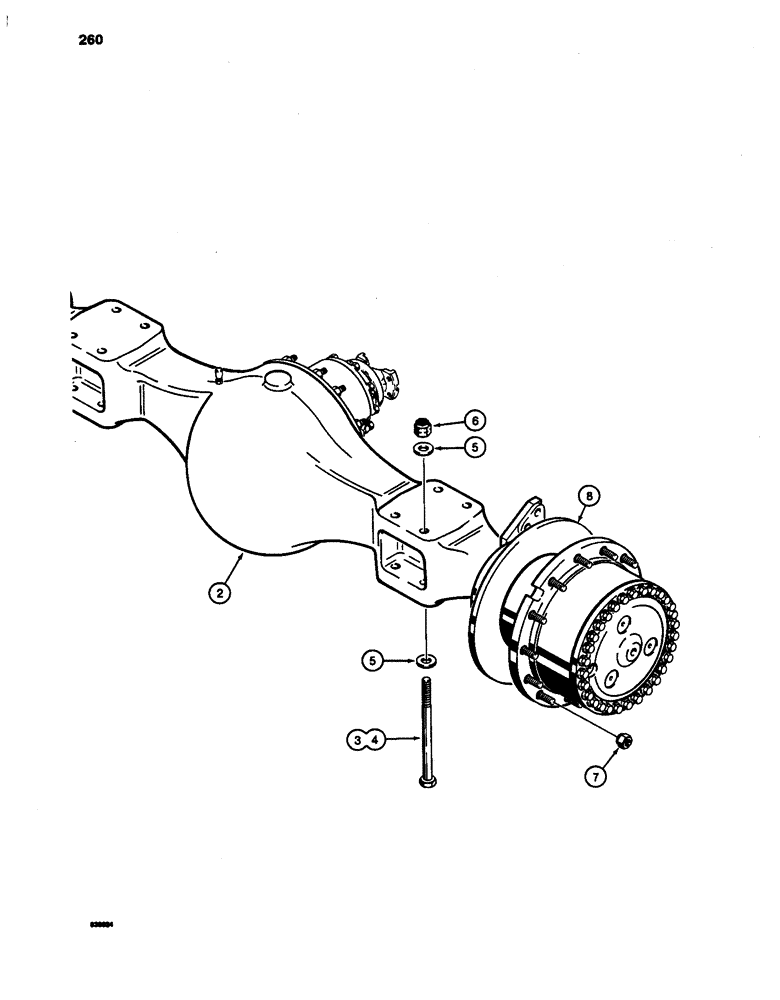

Запчасти Case W24C (260) - ROCKWELL AXLE ASSEMBLIES (06) - POWER TRAIN

1

L112436

CENTER AXLE

AXLE ASSEMBLY - front, Rockwell part No. PRC676N200, not shown, parts list figures 262 thru 266

1шт.

2

L112437

AXLE

ASSEMBLY - rear Rockwell part No. PRC673N203, parts list figures 262, 270,no longer available, order L115211 rear axle

1шт.

2a

L115211

AXLE

ASSEMBLY - rear, Rockwell part No. PRC673N207, parts list figures 262, 270

1шт.

3

116-900

BOLT,Hex, 1" - 14 x 11", Gr 8

Front axle Hex, 1"-14 x 11", G8

8шт.

4

116-907

BOLT,Hex, 1" - 14 x 12", Gr 8

- hex head, 1" - 14 NF x 12", rear axle

8шт.

5

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

32шт.

6

131-188

LOCK NUT,1"-14, GB

NUT - hex, 1" - 14 NF

16шт.

7

A12522

WHEEL NUT

- wheel

48шт.

8

REF

INSTRUCTION

BRAKE - disc, see figure 276 for correct assembly and components

4шт.
