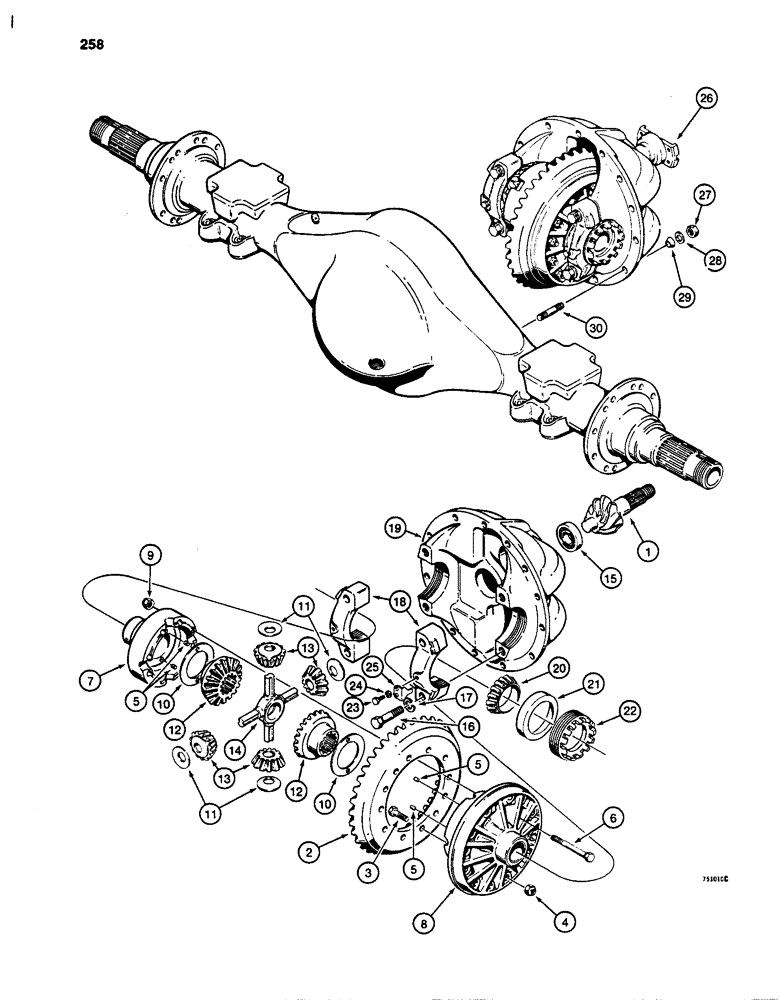

Запчасти Case W24C (258) - REAR AXLE DIFFERENTIAL - CLARK (06) - POWER TRAIN

L79208

AXLE

ASSEMBLY - rear, Clark No. 187663, if used, no longer, available, order L101562 axle, Includes: Ref. 1 - 30

1шт.

L101562

AXLE

ASSEMBLY - rear, Clark No. 188229, if used, Includes: Ref. 1 - 30

1шт.

D80406

DIFFERENTIAL

AND CARRIER ASSEMBLY - axle, Includes: Ref. 1 - 26

1шт.

D08408

GEAR SET - pinion and ring gear, matched set, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

PINION - differential

1шт.

2

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

3

L33044

BOLT

- special, ring, Serial Range: gear-case

12шт.

4

131-579

LOCK NUT,9/16"-18

NUT - hex, self-locking, 9/16" - 18 NF

12шт.

L33046

HOUSING

BODY ASSEMBLY - differential, Includes: Ref. 5 - 14

1шт.

L33047

SET

KIT - differential halves, Includes: Ref. 5 - 11

1шт.

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - differential, Includes: Ref. 5 - 9

1шт.

5

L33049

PIN

DOWEL PIN - Case

4шт.

6

D65170

BOLT

- special, case mounting

8шт.

7

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

8

NSS

NOT SOLD SEPARAT

CASE - flanged half

1шт.

9

D65171

NUT

- hex, special

8шт.

10

L33055

WASHER

THRUST WASHER - side gear

2шт.

11

L33054

WASHER

THRUST WASHER - pinion

4шт.

N7063

SET OF PINIONS

GEAR KIT - differential, Includes: Ref. 12 and 13

1шт.

12

L33052

GEAR

SIDE GEAR - differential

2шт.

13

N6290

SET OF PINIONS

PINION - differential gear set, quantity of 4

1шт.

14

L33053

U-JOINT SPIDER

SPIDER - differential

1шт.

15

L33062

ROLLER BEARING

BEARING - drive pinion, inner

1шт.

L33058

CARRIER

AND CAP ASSEMBLY - differential, Includes: Ref. 16 - 19

1шт.

16

L33909

BOLT

- special

4шт.

17

194-114

WASHER

- lock, 7/8"

4шт.

18

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

40398

ROLLER BEARING,3" ID x 1.2205"

CONE - bearing, differential

2шт.

21

40399

WIRE

CUP - bearing, differential

2шт.

22

L33910

NUT

- adjusting, special

2шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

D80396

LOCK

- adjusting nut

2шт.

26

REF

INSTRUCTION

PINION BEARING AND COMPANION FLANGE - differential, parts list figure 254

1шт.

27

129-545

NUT,1/2"-20, G8

14шт.

28

L33002

WASHER

- special

14шт.

29

L33016

DOWEL

- carrier

3шт.

30

D80394

STUD

- differential carrier to axle housing

14шт.
