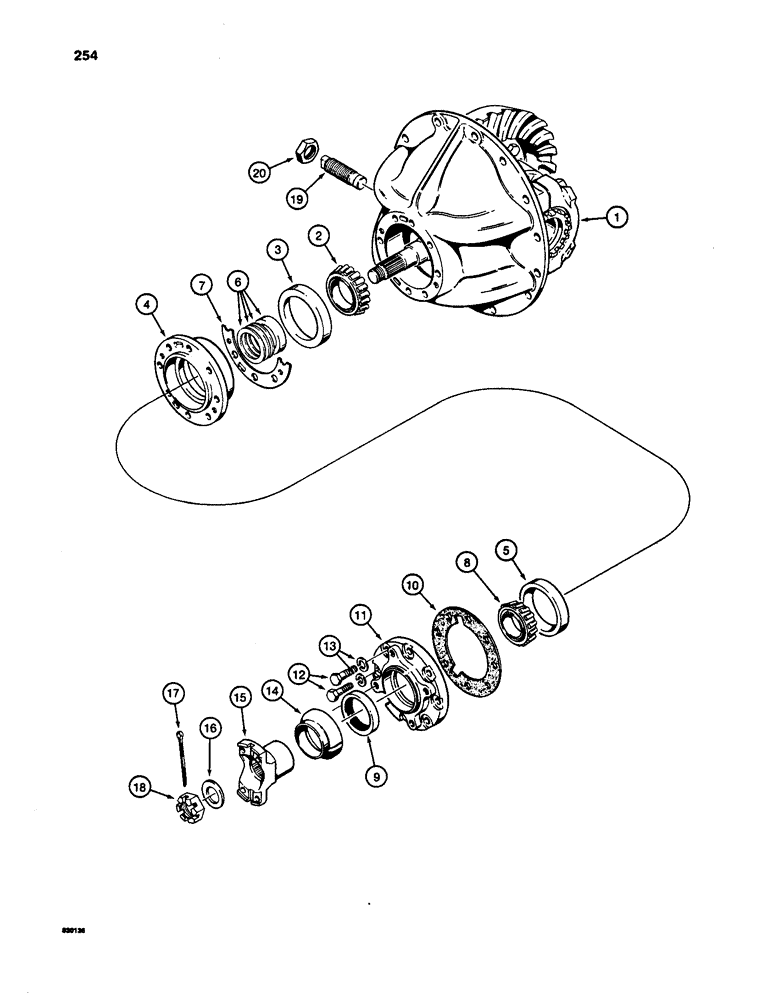

Запчасти Case W24C (254) - AXLE DIFFERENTIAL - CLARK, FRONT AND REAR PINION BEARINGS AND COMPANION FLANGE (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L79207
AXLE
ASSEMBLY - front, Clark No. 187662, if used, no longer available, order L36193 kit, Includes: Ref. 1 - 20
1шт.
L79208
AXLE
ASSEMBLY - rear, Clark No. 187663, if used, no longer available, order L101562 axle, Includes: Ref. 1 - 20
1шт.
L101561
AXLE
ASSEMBLY - front, Clark No. 188228, if used, Includes: Ref. 1 - 20
1шт.
L101562
AXLE
ASSEMBLY - rear, Clark No.188229, if used, Includes: Ref. 1 - 20
1шт.
1
D80375
DIFFERENTIAL
ASSEMBLY - L79207 and L101561 axles, Includes: Ref. 2 - 20
1шт.
1
D80406
DIFFERENTIAL
ASSEMBLY - L79208 and L101562 axles, Includes: Ref. 2 - 20
1шт.
2
A25167
ROLLER BEARING,2" ID x 1.25"
CONE - bearing
1шт.
L33063
CAGE
AND CUP ASSEMBLY - pinion, Includes: Ref. 3 - 5
1шт.
3
A25168
BEARING CUP
CUP - bearing
1шт.
4
NSS
NOT SOLD SEPARAT
CAGE - bearing
1шт.
5
A12949
BEARING CUP
CUP - bearing
1шт.
6
L33064
BUSHING
SPACER AND SHIM KIT - bearing
1шт.
7
L33065
SHIM
- .004" (.0120 mm) thick
1шт.
7
L35911
SHIM
- .007" (.1788 mm) thick
1шт.
7
L35912
SHIM
- .010" (.254 mm) thick
1шт.
8
A9841
ROLLER BEARING,1.875" ID x 1.0594"
CONE - bearing
1шт.
9
L35250
OIL SEAL
- oil, pinion
1шт.
10
L33068
GASKET
- if used
1шт.
11
L35251
RETAINER
- pinion oil seal
1шт.
12
113-421
BOLT,Hex, 1/2" - 13 x 2", Gr 5
If used Hex, 1/2"-13 x 2", G5
1шт.
12
113-509
BOLT,Hex, 9/16" - 12 x 2", Gr 5
If used Hex, 9/16"-12 x 2", G5
7шт.
13
92-8
LOCK WASHER,1/2"
1шт.
13
92-9
BEARING WASHER,9/16"
7шт.
14
L33088
GUARD
SHEILD - dust, pinion
1шт.
15
L35525
FLANGE
- companion
1шт.
16
L33026
WASHER
- pinion shaft
1шт.
17
132-126
COTTER PIN,7/32" x 2"
Pin, Split (Cotter), 7/32" x 2"
1шт.
18
L33097
NUT
- pinion shaft
1шт.
19
L33061
SCREW,1 1/8" - 12 x 4 1/4"
- thrust, special
1шт.
20
25-1518
JAM NUT,Jam, 1 1/8"-12, G5
JAM NUT - hex, 1-1/8" - 12 NF
1шт.
L36193
AXLE
KIT - includes L101561 axle and instructions
1шт.
Выбрано товаров: 31
