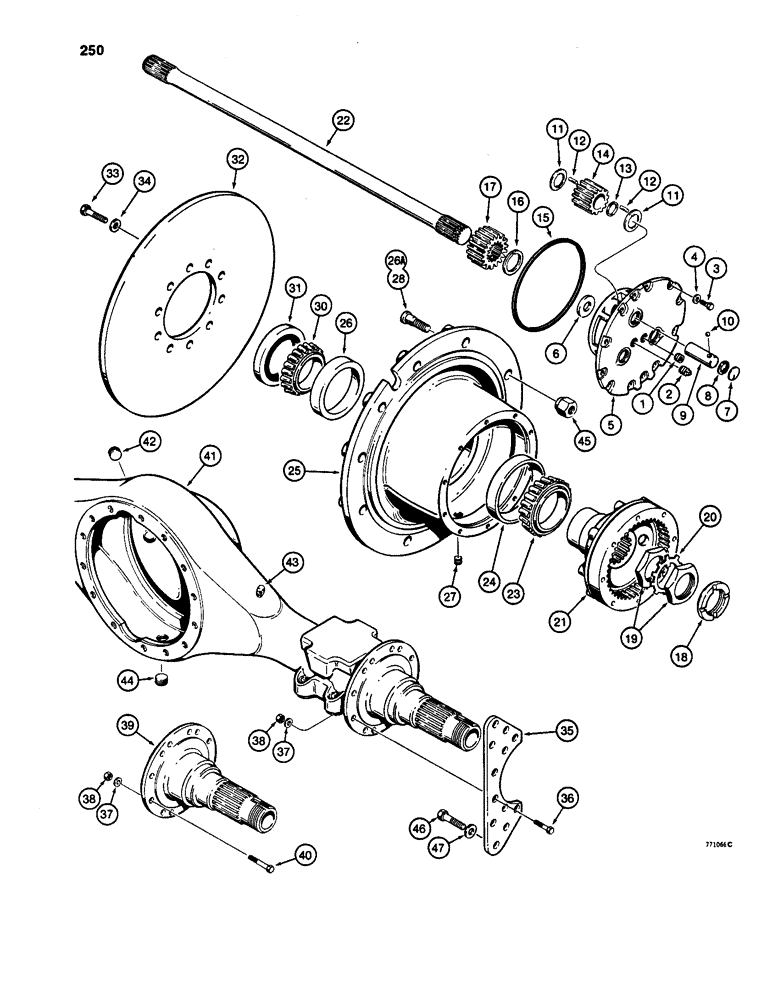

Запчасти Case W24C (250) - AXLE HOUSING AND PLANETARY - CLARK, FRONT AND REAR (06) - POWER TRAIN

L79207

AXLE

ASSEMBLY - front, Clark No. 187662, if used, no longer available, order L36193 kit, Includes: Ref. 1 - 41

1шт.

L79208

AXLE

ASSEMBLY - rear, Clark No. 187663, if used, no longer available, order L101562 axle, Includes: Ref. 1 - 41

1шт.

L101561

AXLE

ASSEMBLY - front, Clark No. 188228. if used, Includes: Ref. 1 - 41

1шт.

L101562

AXLE

ASSEMBLY - rear, Clark No. 188229, if used, Includes: Ref. 1 - 41

1шт.

1

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.

2

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - square head, 1/8" NPT

2шт.

3

L33018

BOLT

- special

24шт.

4

L33002

WASHER

- special

24шт.

D80376

CARRIER

PLANETARY ASSEMBLY - axle, Includes: Ref. 5 - 14

2шт.

5

N8419

CARRIER

SPIDER - planetary

1шт.

6

D80405

WASHER, THRUST

THRUST WASHER - shaft

1шт.

7

41-32

PLUG,Exp, 2"

- expansion

3шт.

8

D80403

CIRCLIP

RETAINING RING - pinion shaft

3шт.

9

D80402

SHAFT

- pinion

3шт.

10

211-11

BALL,3/8" Dia

- shaft

3шт.

11

D80398

WASHER, THRUST

THRUST WASHER - pinion gear

6шт.

12

D80400

ROLLER

- bearing

174шт.

13

D80401

SPACER

- pinion

3шт.

14

D80399

GEAR

PINION GEAR - planetary

3шт.

15

D80377

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

- planetary

2шт.

16

D80378

RETAINER

RETAINING RING - axle shaft

2шт.

17

D80379

GEAR

RING GEAR - planetary

2шт.

18

D80380

SLEEVE CYLINDER

THRUST WASHER - L79207 and L79208 axles only

2шт.

18

N6282

WASHER

THRUST WASHER - L101561 and L101562 axles only

2шт.

19

D80381

NUT

- spindle

4шт.

20

D80382

LOCK WASHER

WASHER - external lock

2шт.

21

D80383

GEAR

RING GEAR - hub

2шт.

22

D80390

SHAFT

- axle

2шт.

23

A14960

BEARING

CONE -bearing, outer

2шт.

N7333

HUB

ASSEMLBY, Includes: Ref. 24 - 26A

2шт.

24

A14961

BEARING CUP

CUP - bearing

1шт.

25

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

26

D80395

CUP

- bearing

1шт.

26a

N7337

STUD

- wheel, if used, grooved OD

12шт.

L36193

AXLE

KIT - includes L101561 axle and instructions

1шт.

27

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT

2шт.

28

D80388

BOLT

- wheel, if used smooth OD

24шт.

30

D80387

BEARING

CONE - bearing, inner

2шт.

31

D80386

SEAL

- L79207 and L79208 axles only

2шт.

31

N6283

OIL SEAL

- L101561 and L101562 axles only

2шт.

32

D80385

DISC

- brake

2шт.

33

D80384

BOLT

- special

32шт.

34

L33031

WASHER

- special

32шт.

35

D80393

PLATE - brake, L79207 and L79208 axles only

2шт.

35

N6287

LARGE PLATE

PLATE - brake, L101561 and L101562 axles only

2шт.

36

114-650

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

- hex head, 5/8" - 18 NF x 2-3/4", grade 8, plated

16шт.

37

L33031

WASHER

- hardened

16шт.

38

129-181

NUT,5/8"-18, G8

- hex, 5/8" - 18 NF

16шт.

39

N6285

SPINDLE

- axle, used with L101561 and L101562 assemblies

2шт.

40

114-651

BOLT,Hex, 5/8" - 18 x 3-1/4", Gr 8

- hex head, 5/8" -18 NF x 3-1/4", grade 8, plated

16шт.

41

D80391

HOUSING

- L79207 front axle, includes spindle

1шт.

41

N6289

HOUSING

- L101561 front axle, does not include spindle

1шт.

41

D80407

HOUSING - L79208 rear axle, includes spindle

1шт.

41

N6284

HOUSING - L101562 rear axle, does not include spindle

1шт.

42

221-845

PLUG,Hex Soc, 3/4"-14

- hex socket head, 3/4" NPT

1шт.

43

N6286

BREATHER

- axle housing

1шт.

44

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - square socket head, 3/4" NPT

1шт.

45

A12522

WHEEL NUT

-wheel bolt, not included with axle

24шт.

46

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2", grade 8

12шт.

47

L79179

WASHER

- flat

12шт.

L36193

AXLE

KIT - includes L101561 axle and instructions

1шт.

L36193

AXLE

KIT - includes L101561 axle and instructions

1шт.
