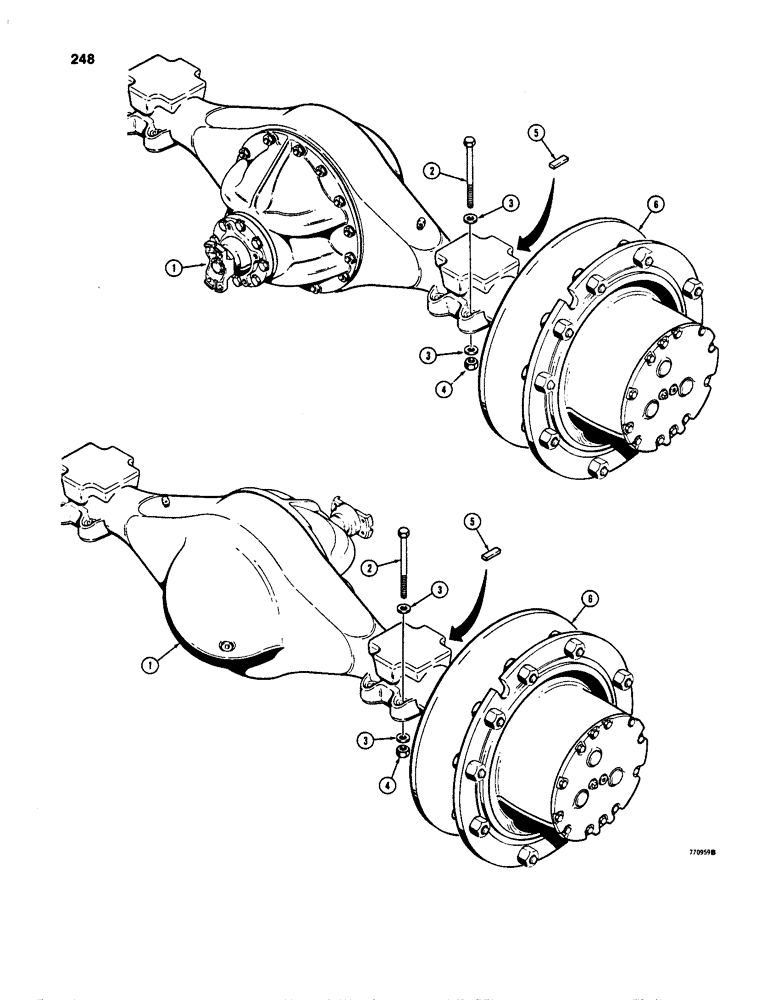

Запчасти Case W24C (248) - CLARK AXLE ASSEMBLIES (06) - POWER TRAIN

1

L79207

AXLE

ASSEMBLY - front, Clark No. 187662, parts list figures 250, 254, and 256, no longer available, order L36193 kit

1шт.

1

L101561

AXLE

ASSEMBLY - front, Clark No. 188228, parts list figures 250, 254, and 256

1шт.

1

L79208

AXLE

ASSEMBLY - rear, Clark No. 187663, parts list figures 250, 254, and 258. no longer available, order L101562 axle

1шт.

1

L101562

AXLE

ASSEMBLY - rear, Clark No. 188229, parts list figures 250, 254, and 258

1шт.

2

116-901

BOLT,Hex, 1" - 14 x 9-1/2", Gr 8

- hex, 1" - 14 NF x 9-1/2"

16шт.

3

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened

32шт.

4

131-1253

LOCK NUT,1"-14, GC

NUT, LOCK, 1"-14, GC

16шт.

5

L56119

BLOCK

- shear, if used

8шт.

6

REF

INSTRUCTION

BRAKE - disc, see figure 274

4шт.

L36193

AXLE

KIT - includes L101561 axle and instructions

1шт.
