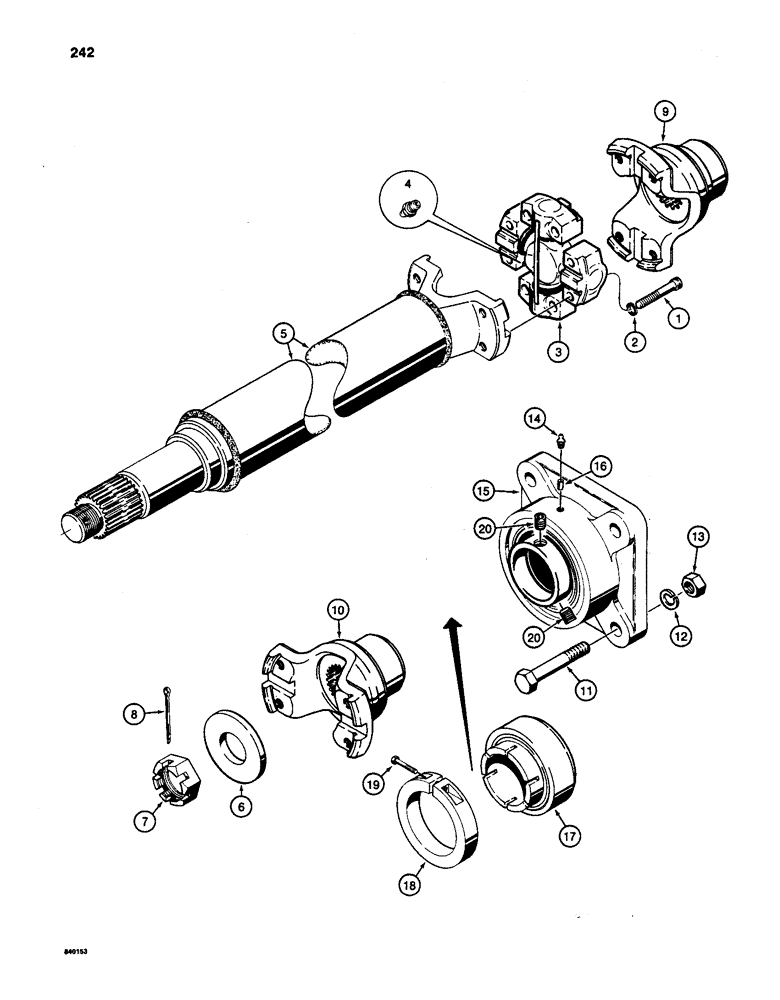

Запчасти Case W24C (242) - FRONT AXLE DRIVE SHAFT, (AXLE END) (06) - POWER TRAIN

L56027

DRIVE SHAFT

ASSEMBLY - front axle, Includes: Ref. 1 - 8

1шт.

L35511

KIT

SPIDER AND BEARING ASSEMBLY - drive shaft kit, Includes: Ref. 1 - 4

1шт.

1

L35514

12 PT SCREW,7/16" - 20 x 2"

BOLT - special

8шт.

2

L35513

WASHER

- lock, 7/16", if used

8шт.

3

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" special

1шт.

5

L35512

YOKE

AND ASSEMBLY - drive shaft, axle end

1шт.

6

D28266

WASHER

- flat, special

1шт.

7

L33629

SPECIAL NUT

- hex, slotted

1шт.

8

132-59

PIN

- cotter, 1/8" x 2-1/2"

1шт.

9

L35525

FLANGE

- companion drive shaft to front axle

1шт.

10

L56029

YOKE

- drive shaft to center bearing

1шт.

11

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex, 9/16" - 12 NC x 1-3/4", L106070 drive shaft support bearing

4шт.

12

92-9

BEARING WASHER,9/16"

L106070 drive shaft support bearing 9/16"

4шт.

13

25-109

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC, L106070 drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING SUPPORT ASSEMBLY - front drive shaft, uses set screws, L106070 drive shaft support, Includes: Ref. 14 - 20

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, L106070 drive shaft support bearing

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots, L106070 drive shaft support bearing

1шт.

16

L33788

AXLE PIN

PIN - lock, 1/4" dia., L106070 drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, converts from set screws to collar arrangement, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing, L106070 drive shaft support

1шт.

18

L33789

COLLAR

- bearing, if used, L106070 drive shaft support

1шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex, socket head, 1/4" - 20 NC x 1", if used, L106070 drive shaft support bearing

1шт.

20

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

- 3/8" - 24 NF x 5/16", if used, L106070 drive shaft support bearing

2шт.
