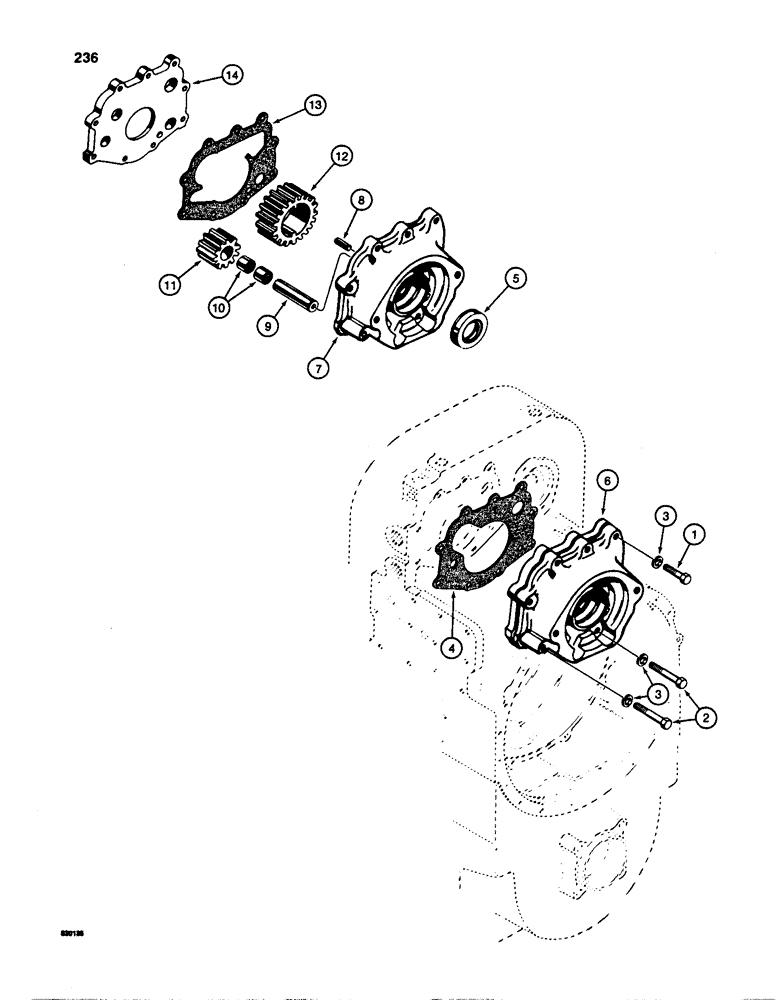

Запчасти Case W24C (236) - TRANSMISSION, CHARGING PUMP (06) - POWER TRAIN

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8" - 16 NC x 2"

7шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- hex head, 3/8" - 16 NC x 3'

3шт.

3

92-6

LOCK WASHER,3/8"

9шт.

4

L31081

GASKET

-, Serial Range: pump-housing

1шт.

5

N6876

SEAL,39.88mm ID x 62.05mm OD x 8.41mm Thk

OIL SEAL - pump

1шт.

Ref. 5 - (Not used when unit has been converted to Wet Pump Spline Drive)

1шт.

6

D72786

PUMP

- transmission and torque converter charging, used on L54744 transmission, for transmission identification see figure 216, Includes: Ref. 7 - 14

1шт.

6

N7770

PUMP,53.57 CC

- transmission and torque converter chraging, used on L100805 and L60857 transmissions, for transmission identification see figure 216, Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

8

L31168

PIN

DOWEL PIN - pump, Serial Range: housing-cover

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - driven gear

1шт.

10

L31166

NEEDLE BEARING

ROLLER BEARING - shaft, used on L54744 transmission, for transmission identification see figure 216

2шт.

10

T32720

BEARING

ROLLER BEARING - shaft, used on L100805 and L60857 transmissions, for transmission identification see figure 216

2шт.

11

NSS

NOT SOLD SEPARAT

DRIVEN GEAR - pump

1шт.

12

NSS

NOT SOLD SEPARAT

DRIVE GEAR - pump

1шт.

13

L31037

GASKET

- pump, Serial Range: housing-cover

1шт.

14

D72787

COVER

- pump

1шт.
