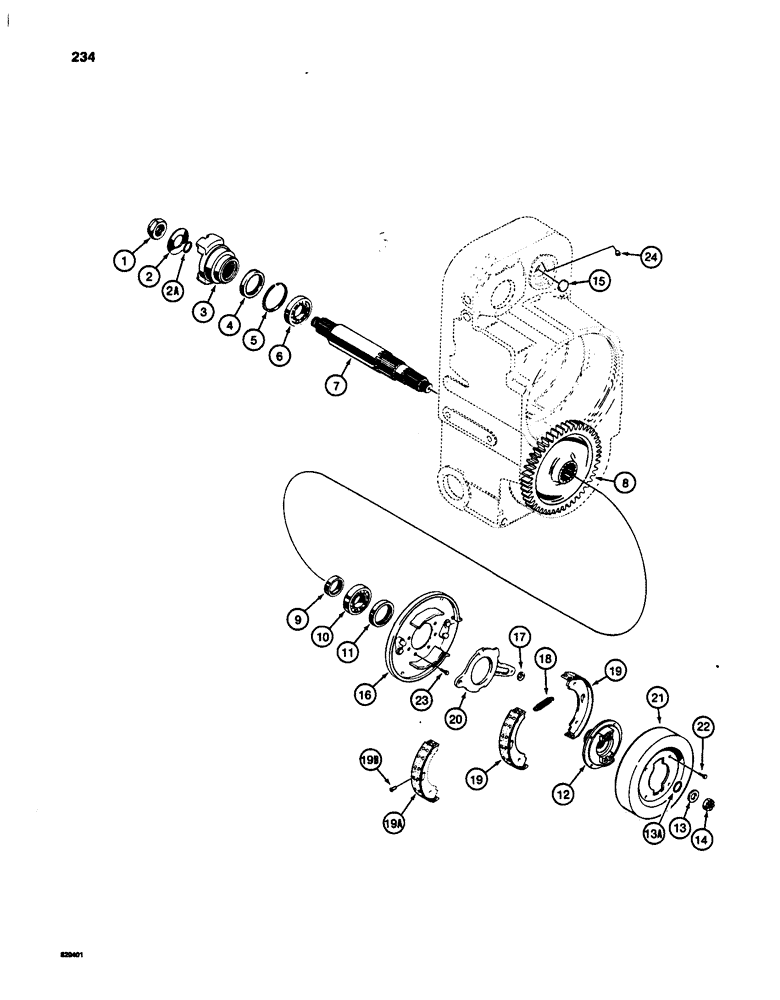

Запчасти Case W24C (234) - TRANSMISSION, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

1

L31165

NUT

- flange washer retaing

1шт.

2

D47424

WASHER

- flange retaining

1шт.

2a

D71437

O-RING,1.475" ID x 1.895" OD

- flange

1шт.

3

L72814

FLANGE

- transmission to rear axle drive shaft

1шт.

4

N8349

SEAL,65.2mm ID x 92.2mm OD x 12.32mm Thk

OIL SEAL - flange

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

BALL BEARING - output shaft, used on L54744 transmission, for transmission identification see figure 216

1шт.

6

N6400

BEARING ASSY,1.9685" ID x 3.5433" OD x 0.7874"

BALL BEARING - output shaft, used on L100805 and L60857 transmissions, for transmission identification see figure 216

1шт.

7

L36058

SHAFT

- output, axle drive

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

N8409

BEARING ASSY

BALL BEARING - output shaft

1шт.

11

N8349

SEAL,65.2mm ID x 92.2mm OD x 12.32mm Thk

OIL SEAL - shaft

1шт.

12

L72813

FLANGE

- transmission to front axle drive shaft

1шт.

13

D47424

WASHER

- flange retaining

1шт.

13a

D71437

O-RING,1.475" ID x 1.895" OD

- flange

1шт.

14

L31165

NUT

- flange washer retaining

1шт.

15

L33620

PLUG

- housing

1шт.

L33621

BRAKE

ASSEMBLY - parking, Includes: Ref. 16 - 21

1шт.

16

L33622

PLATE

- backing

1шт.

17

L33579

ROLLER

- brake

1шт.

18

N8445

SPRING

- brake shoe return

2шт.

19

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake, Includes: Ref. 19A and 19B

2шт.

D47501

LINING

KIT - parking brake lining

1шт.

19a

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

19b

L33939

RIVET

- brake lining

24шт.

20

D47526

LEVER

- brake shoe

1шт.

21

D47527

DRUM

- brake

1шт.

22

121-215

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 3/4", Gr 8

BOLT - hex head , 3/8" - 24 NF x 3/4"

4шт.

23

121-422

BOLT - hex head, 1/2" - 13 NC x 1"

4шт.

24

L33981

PLUG

- cup

1шт.
