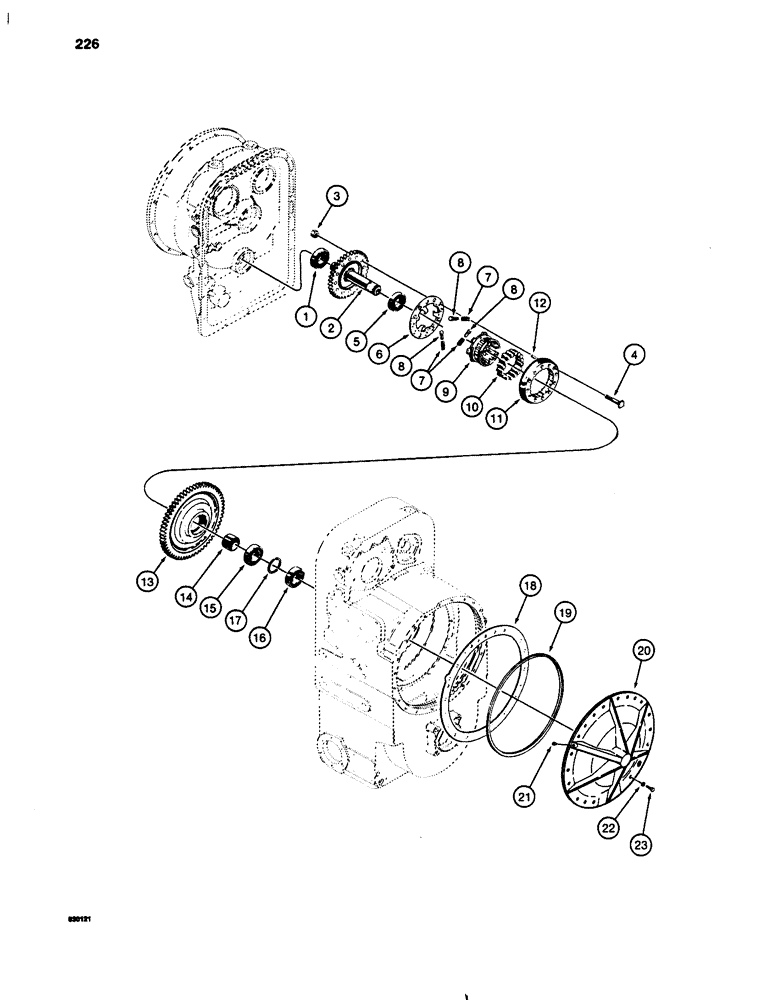

Запчасти Case W24C (226) - TRANSMISSION, TURBINE DRIVEN GEARS, FREEWHEEL UNITS, AND FRONT COVERS L60857 TRANSMISSION (06) - POWER TRAIN

1

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear and shaft

1шт.

2

L35508

GEAR

DRIVEN GEAR AND SHAFT ASSEMBLY - second turbine

1шт.

L36227

CLUTCH ASSEMBLY

KIT - free wheel clutch, heavy duty, Includes: Ref. 3 - 15

1шт.

3

L31163

SPECIAL NUT

- hex, 3/8" - 24 NF, special

12шт.

4

L36227

CLUTCH ASSEMBLY

BOLT - special

12шт.

5

D47573

BALL BEARING

- shaft

1шт.

6

L33962

PLATE

- spring retainer

1шт.

7

D48863

SPRING

- plate

3шт.

8

D47644

PIN

- spring positioning

3шт.

9

N7932

CAGE

- freewheel roller

1шт.

10

N7933

ROLLER

- freewheel

15шт.

N7931

CAM

ASSEMBLY, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

CAM - freewheel

1шт.

12

138-294

LOCK PIN,1/8" x 1/4", Slotted

Pin, , Cam 1/8" x 1/4", Slotted

1шт.

13

N7935

GEAR WHEEL

GEAR - first turbine

1шт.

14

N7936

SPACER

- bearing

1шт.

15

D47573

BALL BEARING

- shaft

1шт.

16

A29183

BALL BEARING,34.99mm ID x 71.99mm OD x 16.94mm W

- gear

1шт.

17

D47458

THRUST WASHER,36.58mm ID x 41.91mm OD x 1.32mm Thk

SPACER - bearing

1шт.

18

N7021

GASKET

- front cover

1шт.

19

N6374

COVER

SEALING RING - bearing

1шт.

20

N6374

COVER

- rear

1шт.

21

221-23

PLUG

- square socket head, 3/8" NPT

1шт.

22

92-6

LOCK WASHER,3/8"

19шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

19шт.
