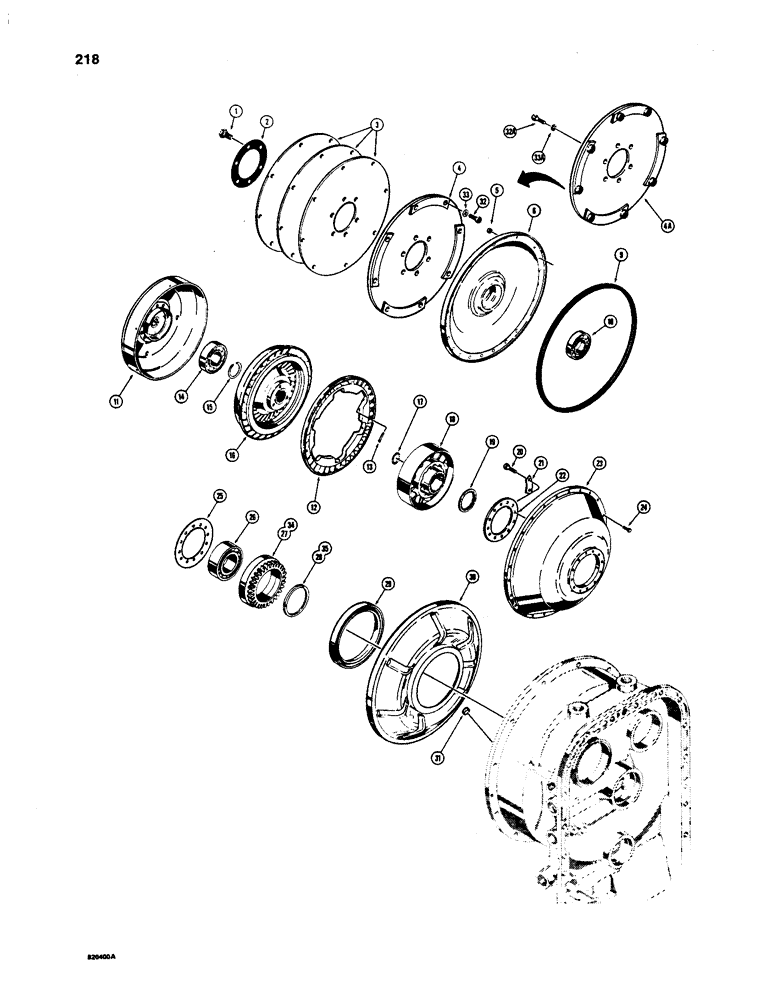

Запчасти Case W24C (218) - TRANSMISSION, FRONT COVER, INPUT SHAFT, AND TORQUE CONVERTER (06) - POWER TRAIN

1

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

BOLT- hex head, 1/2" - 13 NC x 7/8", grade 8

6шт.

2

D46334

PLATE

- flex, disc retaining

1шт.

3

D46335

DISC

- flex plate drive

3шт.

4

L35093

DISC

flex plate backing, used with L54744 transmission and A65049 flywheel

1шт.

For transmission identification, see Figure 216

1шт.

4a

D46336

DISC

flex plate backing, used with L100805 and L60857 transmissions and A154190 flywheel

1шт.

For transmission identification, see Figure 216

1шт.

5

N7170

LOCK NUT

- hex, self-locking, 5/16" - 24 NF

24шт.

6

D46337

COVER

- torque converter pump

1шт.

9

N8421

SEALING RING

SEAL - cover

1шт.

10

L33908

BEARING

BALL BEARING - torque converter

1шт.

D46601

TURBINE

ASSEMBLY - torque converter, first, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter, first

1шт.

12

NSS

NOT SOLD SEPARAT

TURBINE - torque convertera, first

1шт.

13

L31076

PIN

turbine, REPLACED l33615

6шт.

14

L31015

BEARING

BALL BEARING - torque converter

1шт.

15

D47442

RING

SNAP RING - bearing retaining

1шт.

16

N9007

TURBINE

ASSEMBLY - torque converter, second

1шт.

17

D47433

RING

SNAP RING - external type

1шт.

18

D50277

STATOR

- torque converter

1шт.

19

D47435

BUSHING

SPACER - stator

1шт.

20

28-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 8

- hex head, 1/4" - 28 NF x 1-1/4"

12шт.

21

D47436

PLATE, LOCKING

PLATE - locking

6шт.

22

D47437

RETAINER

- pump

1шт.

N6837

PUMP

ASSEMBLY - torque converter, Includes: Ref. 23 and 24

1шт.

23

NSS

NOT SOLD SEPARAT

PUMP - torque converter

1шт.

24

N8231

SERRATED BOLT

- special

24шт.

25

D48208

GASKET

pump, used only with L35399 Drive Gear

1шт.

26

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

- pump

1шт.

27

L35399

GEAR

DRIVE GEAR - accessory, has smooth surface for seal ring, no longer avaliable, order Refs. 34 and 35

1шт.

28

D47441

SEAL

ING RING - torque converter housing sleeve, used with Ref. 27, L35399

1шт.

L34000

DIAPHRAGM

ASSEMBLY - torque converter, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

OIL SEAL - torque converter

1шт.

30

NSS

NOT SOLD SEPARAT

DIAPHRAGM - torque converter

1шт.

31

L30301

PLUG

- torque converter housing

1шт.

32

121-205

LOCK BOLT,Lock Place, Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex head, self-locking, 3/8" - 16 NC x 3/4", used with L54744 transmission

8шт.

For transmission identification, see Figure 216

1шт.

32a

114-268

PREV TORQUE BOLT,Locking, 3/8"-24 x 2 1/4", G5

BOLT - hex head, self-locking, 3/8" - 16 NC x 2-1/4", used with L100805 and L60857 transmissions, not included with transmissions

8шт.

For transmission identification, see Figure 216

1шт.

33

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- special, cupped, used with L54744 transmission

8шт.

For transmission identification, see Figure 216

1шт.

33a

92-6

LOCK WASHER,3/8"

used with L100805 and L60857 transmissions, not included with transmissions 3/8"

8шт.

For transmission identification, see Figure 216

1шт.

34

N8745

GEAR

DRIVE GEAR - accessory, has O-ring groove for seal

1шт.

35

N8746

SEAL

ING RING - used with N8745

1шт.
