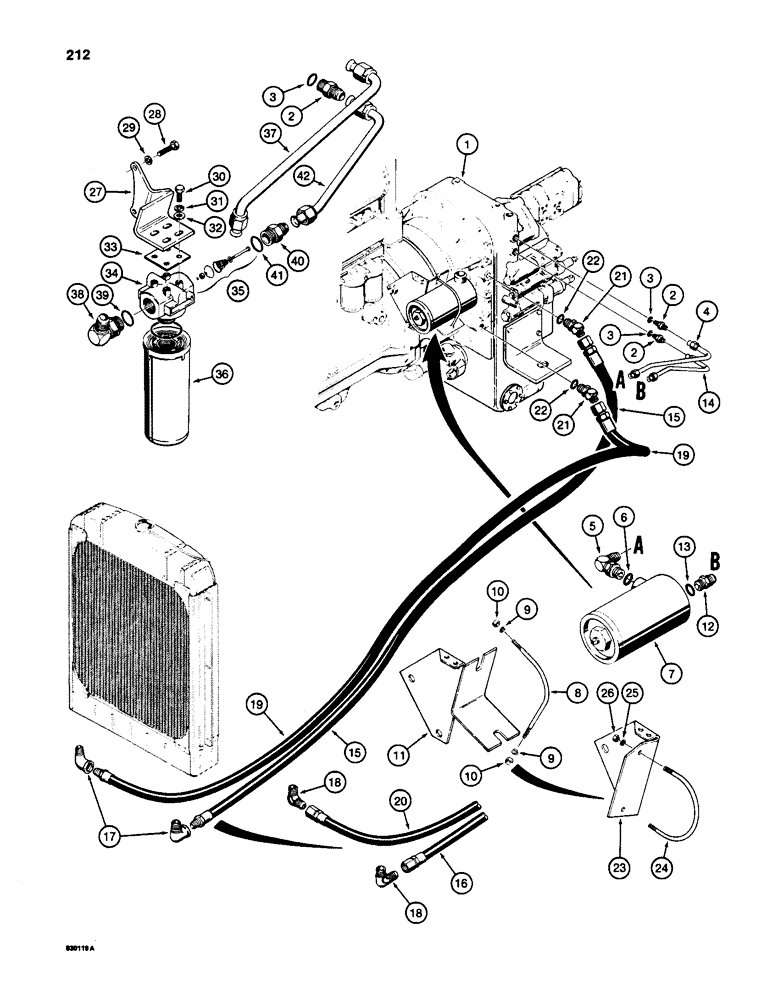

Запчасти Case W24C (212) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

REF

INSTRUCTION

TRANSMISSION - complete, see figure 216

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, Incl. Ref. 3

2-3шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

4

L52974

TUBE

- supply, transmission to oil filter, used with G100001 filter

1шт.

5

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, used with G100001 filter, Incl. Ref. 6 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

7

G100001

FILTER, ENGINE OIL

FILTER - transmission oil, parts list figure 214, horizontal mount

1шт.

8

L52433

CLAMP

U-BOLT - filter mounting, used with L52967 bracket

1шт.

9

92-6

LOCK WASHER,3/8"

used with L52433 U-bolt 3/8"

2шт.

10

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used with L52433 U-bolt

2шт.

11

L52967

BRACKET

- filter mounting, uses engine hardware, order Refs. 23, 24, 25, and 26

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - male, straight, used G100001 filter, Incl. Ref. 13

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- adapter

1шт.

14

L52978

TUBE

- return, oil, Serial Range: filter-transmission

1шт.

15

L48529

HOSE

- 68" (1727 mm) long, order L106003 hose and 218-486

1шт.

16

L106003

HOSE,15.87 mm ID x 1727.00 mm, SAE 100R1 Type A

- 68" (1727 mm) long

1шт.

17

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, if used 90º, 3/4"-14, NPT

1шт.

18

218-486

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degree, if used

2шт.

19

L50014

HOSE

- 84" (2134 mm), order L106002 hose and 218-486 elbow

1шт.

20

L113225

HOSE ASSY.

HOSE - 92" (2337 mm) long

1шт.

21

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 45 degree, male, adjustable, Includes: Ref. 22

2шт.

22

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

23

L101066

BRACKET

- filter mounting, see Ref. 11, used with G10001 filter

1шт.

24

L77827

BOLT

U-BOLT - filter mounting, used with G100001 filter

1шт.

25

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used with G100001 filter 1/4"

2шт.

26

25-104

NUT,1/4"-20, G5

1шт.

27

L112133

BRACKET

- filter mounting, used with L109282 filter

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

L111745

SPACER

- filter

1шт.

L109282

FILTER, ENGINE OIL

FILTER - transmission oil, vertical mount, Includes: Ref. 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

HEAD, filter

1шт.

35

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

36

L36242

FILTER

ELEMENT - filter, includes O-ring

1шт.

37

L36242

FILTER

TUBE - filter inlet

1шт.

38

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes: Ref 39 90º, 1 1/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

39

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

40

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Incl. Ref. 41

1шт.

41

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

42

L109798

TUBE,0.75" OD

- filter return

1шт.
