Запчасти Case W24C (204) - L71667 LOADER AND STEERING PUMP (05) - STEERING

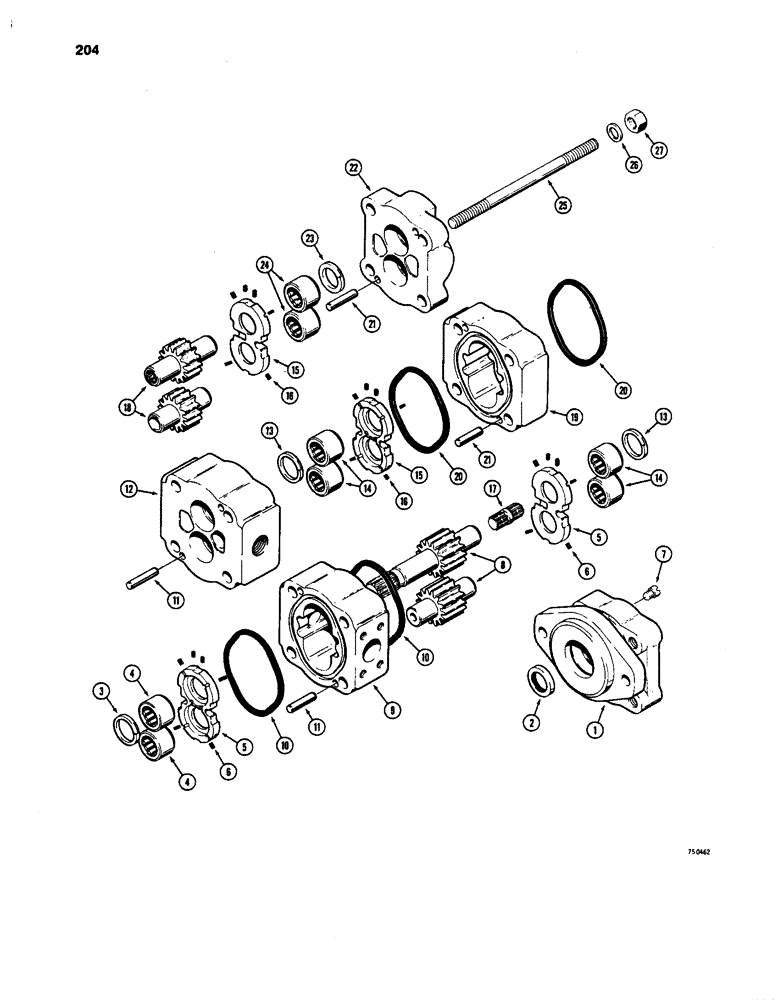

Схема запчастей Case W24C - (204) - L71667 LOADER AND STEERING PUMP (05) - STEERING

Артикул

Название

Примечание

Количество

L71667

PUMP

- hydraulic, loader and steering, Commercial Shearing P51B, Includes: Ref. 1 - 27

1шт.

1

D73609

COVER ASSY

COVER - shaft end

1шт.

2

L32318

SEAL

- double lip

1шт.

Part of Seal Kit P/N D73614

1шт.

3

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring, bronze

1шт.

Part of Seal Kit P/N D73614

1шт.

4

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- cover

2шт.

5

D70680

PLATE

- thrust

2шт.

6

L32099

SEAL

- pocket

12шт.

Part of Seal Kit P/N D73614

1шт.

7

L32320

PLUG

- special, 7/16" - 20 NF

1шт.

8

L35336

GEAR

AND SHAFT SET - drive and driven

1шт.

9

D73610

HOUSING

- gear

1шт.

10

D41391

O-RING

SEAL - gasket

2шт.

Part of Seal Kit P/N D73614

1шт.

11

W16323

DOWEL

PIN - dowel

4шт.

12

D73611

CARRIER

- bearing

1шт.

13

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring, bronze

2шт.

Part of Seal Kit P/N D73614

1шт.

14

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- carrier

4шт.

15

D70680

PLATE

- thrust

2шт.

16

L32099

SEAL

- pocket

12шт.

Part of Seal Kit P/N D73614

1шт.

17

L32324

SHAFT

- connecting

1шт.

18

L32325

GEAR

S - set - drive and driven

1шт.

19

D73612

HOUSING

- gear

1шт.

20

D41391

O-RING

GASKET - seal

2шт.

Part of Seal Kit P/N D73614

1шт.

21

W16323

DOWEL

PIN - dowel

4шт.

22

D73613

COVER

- port end

1шт.

23

L32319

SEALING RING,32.68mm ID x 44.88mm OD x 3.81mm Thk

- ring, bronze

1шт.

Part of Seal Kit P/N D73614

1шт.

24

D31942

ROLLER BEARING,1.29" ID x 1.9375" OD x 1.125"

- cover

2шт.

25

S82801

STUD

- special, 5/8" - 11 NC

4шт.

26

D31957

WASHER

- special, 5/8"

4шт.

27

86625068

NUT,5/8"-11, G8

- hex, 5/8" - 11 NC

4шт.

D73614

KIT

- seal, Includes: Ref. 2, 3, 6, 10, 13, 16, 20 and 23

1шт.

Выбрано товаров: 37
