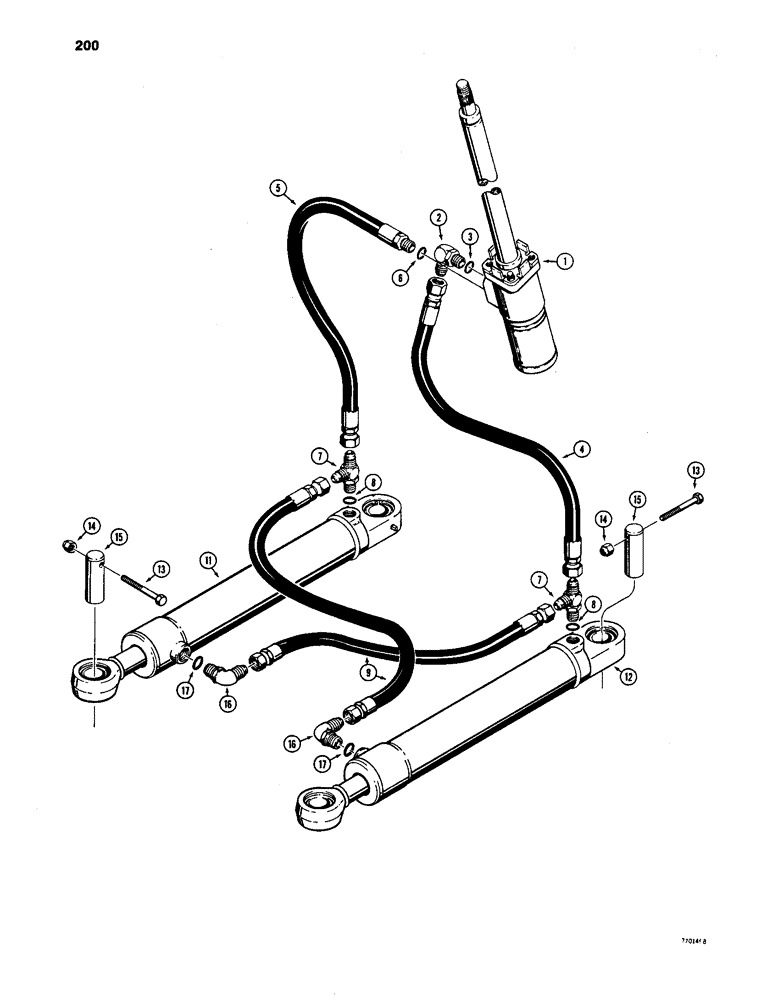

Запчасти Case W24C (200) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

VALVE - steering control, figure 174 or 176 for the correct assembly and components

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adjustable, Includes: Ref. 3

1шт.

4

L52617

HOSE

- right-hand, 41" (1041 mm) long

1шт.

5

L51802

HOSE

- left-hand, 39" (991 mm) long

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, Includes: Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

9

37405

HOSE

- 36" (914 mm) long

2шт.

10

RESERVED

1шт.

11

REF

INSTRUCTION

CYLINDER - left-hand steering, parts list figure 202

1шт.

12

REF

INSTRUCTION

CYLINDER - right-hand steering, parts list figure 202

1шт.

13

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

4шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

4шт.

15

L47952

PIN,34.91mm OD x 95.25mm L

- cylinder mounting

4шт.

16

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- elbow

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- hose

1шт.
